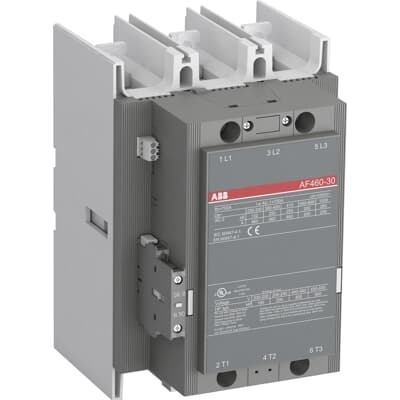

ABB 1SFL597001R9102 Block Contactor - 1000V UL 650A
Part Number: 1SFL597001R9102
Quick Summary
Block Contactor 1SFL597001R9102 by ABB controls motors for fire pump applications. Owners face voltage fluctuations that cause nuisance trips and energy waste, so robust control is essential. It carries CE and UL/CSA certifications with RoHS and REACH compliance to support global installation requirements. By combining reliable AF technology with a compact block design, this device helps reduce panel energy consumption while delivering dependable motor control for demanding industrial environments. In addition, its extendable auxiliary contact blocks and CAD-ready integrations streamline installation and ongoing maintenance, delivering measurable business value through improved uptime and easier serviceability.
Product Information
Extended Description
1SFL597001R9102 ABB: The AF460F-30-11 is a 3 pole - 1000 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and Main Circuit Bars, for Fire Pump applications, controlling motors up to 250 kW / 400 V AC (AC-3) or 400 hp / 480 V UL and switching power circuits up to n.a. A (AC-1) or 650 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (220-240 V 50/60 Hz), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Data Sheet, Technical Information (Part 2)
Contactors and Overload relays guide
Instructions and Manuals
1SFC380023-en
Instructions and Manuals (Part 2)
FirePump Contactors AF400F, AF460F, AF580F, AF750F
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
186 mm
Product Net Depth / Length
216 mm
Product Net Height
278 mm
Product Net Weight
10.6 kg
Number of Main Contacts NO
3
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
1
Number of Auxiliary Contacts NC
1
Number of Poles
3P
Rated Operational Voltage
Main Circuit 1000 V
Rated Operational Current AC-1 (Ie)
(1000 V) 40 °C 700 A | (1000 V) 60 °C 600 A | (1000 V) 70 °C 480 A | (690 V) 40 °C 700 A | (690 V) 70 °C 480 A
Rated Operational Current AC-3 (Ie)
(415 V) 55 °C 460 A | (440 V) 55 °C 460 A | (500 V) 55 °C 460 A | (690 V) 55 °C 400 A | (1000 V) 55 °C 200 A | (380 / 400 V) 55 °C 460 A | (220 / 230 / 240 V) 55 °C 460 A
Rated Operational Power AC-3 (Pe)
(415 V) 250 kW | (440 V) 250 kW | (500 V) 315 kW | (690 V) 355 kW | (1000 V) 280 kW | (380 / 400 V) 250 kW | (220 / 230 / 240 V) 132 kW
Rated Insulation Voltage (Ui)
acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V | acc. to UL/CSA 600 V
Mechanical Durability
3 million
Rated Control Circuit Voltage (Uc)
50 Hz 100 ... 250 V | 60 Hz 100 ... 250 V | DC Operation 100 ... 250 V
Power Loss
at Rated Operating Conditions per Pole 21 W
Terminal Type
Main Circuit: Bars
Product Name
Block Contactor
General Use Rating UL/CSA
(1000 V AC) 650 A
Horsepower Rating UL/CSA
(200 V AC) Three Phase 150 hp | (208 V AC) Three Phase 150 hp | (220 ... 240 V AC) Three Phase 200 hp | (440 ... 480 V AC) Three Phase 400 hp | (550 ... 600 V AC) Three Phase 500 hp
Full Load Amps Motor Use
(440 ... 480 V AC) Three Phase 477 A | (550 ... 600 V AC) Three Phase 472 A
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
End Of Life Disassembling Instructions
End-of-life instruction - AF(S)400(B)-**;AF(S)460(B)-**;AF460N6
Environmental Product Declaration - EPD
Environmental Product Declaration, Contactors, AF(S)400-AF(S)460 (SE)
CB Certificate
SE-82316
Declaration of Conformity - CE
CE Declaration of Conformity - Contactor - AF400...AF2850
Declaration of Conformity - UKCA
UK Declaration of Conformity - Contactors >100A
PRS Certificate
PRS Certificate - AF116...AF1650
UL Certificate
cULus Certificate, Contactor, AF400, AF460, AFS400, AFS460
Package Level 1 Units
box 1 piece
Package Level 1 Width
280 mm
Package Level 1 Depth / Length
375 mm
Package Level 1 Height
310 mm
Package Level 1 Gross Weight
12 kg
Package Level 1 EAN
7320500223178
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4758 >> Iec Contactors
The 3 pole Block Contactor uses AF technology to deliver a wide control voltage range of 100–250 V AC/DC, enabling stable operation even when plant power experiences fluctuations. This translates to fewer trips and smoother motor starts, reducing downtime and maintenance costs in critical fire pump and general motor control scenarios. With pre-mounted auxiliary contacts and main circuit bars, installation time is shortened and field wiring complexity is minimized, while the compact block format supports easy panel expansion as needs grow. Rated for insulation up to 1000 V and capable of handling UL/CSA general use up to 650 A, it delivers strong protection for high-energy circuits in both new builds and retrofit projects. The device supports add-on auxiliary blocks for customized control logic and employs built-in surge protection to safeguard electronics from voltage spikes, enhancing system reliability and reducing component wear. Mechanical durability reaches millions of cycles, supporting long service life in demanding industrial environments. For engineers, the ability to access CAD drawings and 2D/3D files accelerates design reviews and commissioning, making this contactor a practical choice for fire pump applications and broader motor control uses. Its versatility is further reinforced by compatibility with common ETIM and eClass classifications, aligning with procurement and specification workflows in global projects.
Get a Quick Quote for a ABB 1SFL597001R9102
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFL597001R9102?
Enquire Now
FAQs
This 3-pole block contactor uses main circuit bars and pre-mounted auxiliary contacts, with compatibility for add-on auxiliary blocks to tailor control logic. It is designed for Fire Pump applications but also suits general motor control, and CAD files are available to speed up installation and integration with existing electrical drawings.
Rated for insulation up to 1000 V, it supports Control Circuit Voltage of 50 Hz 100–250 V, 60 Hz 100–250 V, and DC 100–250 V. Main circuit current ranges include AC-1 up to 700 A and AC-3 up to 460 A at common industrial voltages, making it suitable for motors up to several hundred kilowatts depending on voltage.
Yes. The device carries CE Declaration of Conformity and UL/CSA general-use ratings, along with RoHS and REACH declarations to ensure regulatory compliance across major markets.
Yes, designed for Fire Pump control with built-in surge protection and robust AF technology. Its mechanical durability of around 3 million cycles reduces replacement frequency, and its modular auxiliary contacts simplify preventative maintenance and fault isolation during service intervals.
The combination of built-in surge protection, wide control voltage tolerance, and extendable auxiliary blocks lowers energy losses, minimizes nuisance trips, and reduces downtime. CAD/CDD compatibility speeds engineering, while durability minimizes replacement costs, delivering tangible long-term savings in uptime, energy efficiency, and maintenance labor.
