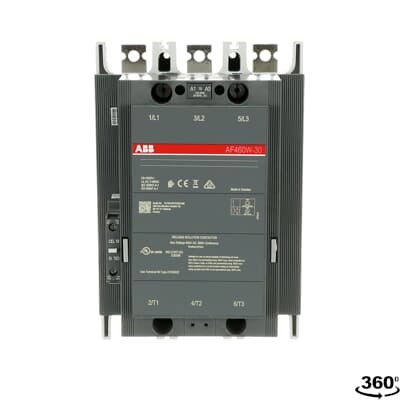

ABB 1SFL597027R9100 Contactor - UL/CE Certification
Part Number: 1SFL597027R9100
Quick Summary
ABB 1SFL597027R9100 Contactor is a 3-pole control device engineered to switch motors and power circuits in industrial equipment. In field installations, voltage fluctuations can cause nuisance tripping and wasted energy. This AF460W-30-01 solution carries CE, UKCA and UL/cULus certifications, confirming compliance across Europe and North America. Its AF technology delivers a wide control voltage range and built-in surge protection, while the compact block design simplifies panel layouts. Compatible with add-on auxiliary contact blocks and a full family of AF accessories, it supports scalable motor protection and automation schemes, delivering reliable operation and a lower total cost of ownership.
Product Information
Extended Description
1SFL597027R9100 ABB: The AF460W-30-01 100-250V is a 3 pole - 1000 V IEC or 600 V UL contactor with Main Circuit Bars, controlling motors up to 250 kW / 400 V AC (AC-3) or 400 hp / 480 V UL and switching power circuits up to n.a. A (AC-1) or 650 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (220-240 V 50/60 Hz), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Data Sheet, Technical Information (Part 2)
Contactors and Overload relays guide
Instructions and Manuals
1SFC380023-en
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
186 mm
Product Net Depth / Length
216 mm
Product Net Height
278 mm
Product Net Weight
10.6 kg
Number of Main Contacts NO
3
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
1
Number of Auxiliary Contacts NC
0
Number of Poles
3P
Rated Operational Voltage
Main Circuit 1000 V
Rated Operational Current AC-1 (Ie)
(1000 V) 40 °C 700 A | (1000 V) 60 °C 600 A | (1000 V) 70 °C 480 A | (690 V) 40 °C 700 A | (690 V) 70 °C 480 A
Rated Operational Current AC-3 (Ie)
(415 V) 55 °C 460 A | (440 V) 55 °C 460 A | (500 V) 55 °C 460 A | (690 V) 55 °C 400 A | (1000 V) 55 °C 200 A | (380 / 400 V) 55 °C 460 A | (220 / 230 / 240 V) 55 °C 460 A
Rated Operational Power AC-3 (Pe)
(415 V) 250 kW | (440 V) 250 kW | (500 V) 315 kW | (690 V) 355 kW | (1000 V) 280 kW | (380 / 400 V) 250 kW | (220 / 230 / 240 V) 132 kW
Rated Short-time Withstand Current Low Voltage (Icw)
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 4400 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 840 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 2500 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 4600 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 3100 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V | acc. to UL/CSA 600 V
Mechanical Durability
3 million
Maximum Mechanical Switching Frequency
300 cycles per hour
Rated Control Circuit Voltage (Uc)
50 Hz / 60 Hz 100 ... 250 V | DC Operation 100 ... 250 V
Coil Consumption
Holding at Max. Rated Control Circuit Voltage 50 Hz 12 V·A | Holding at Max. Rated Control Circuit Voltage 60 Hz 12 V·A | Pull-in at Max. Rated Control Circuit Voltage 50 Hz 955 V·A | Pull-in at Max. Rated Control Circuit Voltage 60 Hz 955 V·A | Pull-in at Max. Rated Control Circuit Voltage DC 895 V·A
Power Loss
at Rated Operating Conditions per Pole 21 W
Terminal Type
Main Circuit: Bars
Product Name
Block Contactor
General Use Rating UL/CSA
(1000 V AC) 650 A
Horsepower Rating UL/CSA
(200 ... 208 V AC) Three Phase 150 Hp | (220 ... 240 V AC) Three Phase 200 Hp | (440 ... 480 V AC) Three Phase 400 Hp | (550 ... 600 V AC) Three Phase 500 Hp
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
End Of Life Disassembling Instructions
End-of-life instruction - AF(S)400(B)-**;AF(S)460(B)-**;AF460N6
Environmental Product Declaration - EPD
Environmental Product Declaration, Contactors, AF(S)400-AF(S)460 (SE)
CB Certificate
SE-82316
Declaration of Conformity - CE
CE Declaration of Conformity - Contactor - AF400...AF2850
Declaration of Conformity - UKCA
UK Declaration of Conformity - Contactors >100A
UL Certificate
cULus Certificate, Contactor, AF400, AF460, AFS400, AFS460
Package Level 1 Units
box 1 piece
Package Level 1 Width
280 mm
Package Level 1 Depth / Length
375 mm
Package Level 1 Height
310 mm
Package Level 1 Gross Weight
12 kg
Package Level 1 EAN
7320500256558
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4758 >> Iec Contactors
Feature → Business Impact → Application: AF460W-30-01 uses AF technology to tolerate a wide control voltage range (100-250 V AC/DC), reducing nuisance starts and panel energy use in variable networks. This translates to improved equipment uptime and lower energy costs in automated lines and conveyors. Feature → Built-in surge protection enhances circuit reliability, safeguarding motors and starters from transient spikes common in heavy industrial environments, leading to fewer unplanned outages and maintenance expenses during high-load operations. Feature → 3-pole main circuit with 1000 V insulation and main circuit bars supports clean power transfer for motors up to 250 kW at 400 V AC (AC-3), enabling compact switchgear designs and simpler wiring in machine rooms. Feature → The block design accepts add-on auxiliary contact blocks, enabling scalable control logic and easier expansion as a project grows, reducing future retasking costs. Feature → Compatibility with AF family accessories and a compact footprint reduces panel depth and makes retrofits or upgrades faster, aiding installation efficiency and reducing downtime during commissioning. Feature → Mechanical durability of 3 million cycles and a maximum switching frequency of 300 cycles per hour provide long service life in demanding automation environments, lowering total cost of ownership and spare-part inventories. Feature → Rated operational current and power figures (I_e and P_e) at multiple voltages ensure engineers can select the exact device for AC-1 and AC-3 duty, improving compliance with motor protection standards and project specs.
Get a Quick Quote for a ABB 1SFL597027R9100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFL597027R9100?
Enquire Now
FAQs
The AF460W-30-01 supports a 1000 V main circuit with 3 poles and 460 A AC-3 rating across multiple voltages (e.g., 415-690 V for AC-3 duty) and a coil range of 100-250 V AC/DC. It can drive motors up to about 250 kW at 400 V AC, making it suitable for heavy-duty motor control applications in packaging, material handling, and machine tools.
Yes. The AF460W-30-01 features a block-type design that is easily extended with auxiliary contact blocks, enabling expanded control logic without replacing the main device. This supports scalable automation projects and simplifies future upgrades.
This family carries CE Declaration of Conformity, UKCA where applicable, UL/cULus certification for general use, RoHS/REACH declarations, and environmental compliance through EPD and CMRT documentation, supporting global regulatory requirements.
The device uses main circuit bars for robust power transfer and fits standard AF family mounting. Dimensions are 186 mm wide, 216 mm deep, and 278 mm high, with a weight of 10.6 kg, facilitating compact panel layouts and straightforward wiring during installation or retrofits.
With a mechanical durability of 3 million cycles and a maximum switching frequency of 300 cycles per hour, the AF460W-30-01 offers long service life, reducing maintenance intervals and spare parts costs. Its built-in surge protection and scalable auxiliary options also lower lifecycle operating costs by reducing downtime and enabling efficient motor protection.
