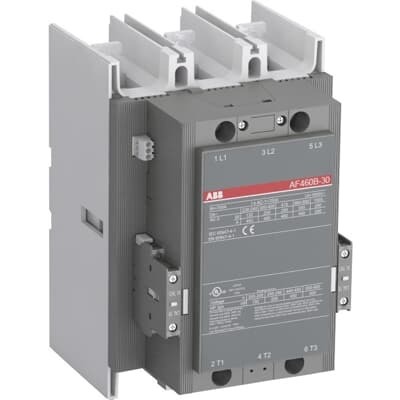

ABB AF460B-30-22-68 Block Contactor - 1000 V IEC / 650 A UL
Part Number: 1SFL597063R6822
Quick Summary
ABB AF460B-30-22-68 Block Contactor is a 3-pole motor starter with a 24-60 V DC coil, designed for demanding industrial drives. When panel power varies or the control voltage is unstable, this AF technology provides distinct operation and reduces energy waste. The unit carries CE, UL/CSA approvals and UKCA readiness, supporting modern compliance requirements. In practice, it offers reliable motor control, scalable expansion with add-on auxiliary blocks, and potential long-term cost savings through efficient, compact design that fits tight electrical cabinets and challenging environments.
Product Information
Extended Description
1SFL597063R6822 ABB: The AF460B-30-22-68 is a 3 pole - 1000 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and standard ferrules, controlling motors up to 250 kW / 400 V AC (AC-3) or 400 hp / 480 V UL and switching power circuits up to 700 A (AC-1) or 650 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (24-60 V DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
1SBC100192C0206
Data Sheet, Technical Information (Part 2)
Contactors and Overload relays guide
Instructions and Manuals
1SFC380023-en
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Dimension Diagram
53540919-59
Product Net Width
186 mm
Product Net Depth / Length
216 mm
Product Net Height
278 mm
Product Net Weight
10.6 kg
Rated Control Circuit Voltage (Uc)
50 Hz 24 ... 60 V
Coil Consumption
Holding at Max. Rated Control Circuit Voltage 50 Hz 12 V·A | Pull-in at Max. Rated Control Circuit Voltage 50 Hz 900 V·A
Connecting Capacity Main Circuit
Bar 47 mm² | Rigid Al-Cable 2x240 mm² | Rigid Cu-Cable 240 mm²
Connecting Capacity Auxiliary Circuit
Flexible with Ferrule 2x 0.75 ... 2.5 mm² | Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm² | Flexible 1x 0.75 ... 2.5 mm² | Solid 2x 1 ... 4 mm² | Stranded 2x 1 ... 4 mm²
Connecting Capacity
Bar 47 mm² | Rigid Al-Cable 2x240 mm² | Rigid Cu-Cable 240 mm²
Recommended Screw Driver
Control Circuit M3.5 | Control Circuit Pozidriv 2
Tightening Torque
Cable Lug 35 N·m | Main Circuit 35 N·m
Terminal Type
Main Circuit: Bars
Product Name
Block Contactor
General Use Rating UL/CSA
(1000 V AC) 650 A
Ambient Air Temperature
Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °C | Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C | Close to Contactor for Storage -40 ... 70 °C
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
ABB EcoSolutions
Yes
ABB Site Meeting Group Waste To Landfill Target
Non-hazardous waste is sent to a landfill, where there is no alternative option available within 100km of a facility
End Of Life Disassembling Instructions
End-of-life instruction - AF(S)400(B)-**;AF(S)460(B)-**;AF460N6
Environmental Product Declaration - EPD
Environmental Product Declaration, Contactors, AF(S)400-AF(S)460 (SE)
Improved Energy Efficiency for Customers
Product Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line
Recyclability Rate of the Product acc. to EN45555
Design for Closing Resource Loops - Standard EN45555 - 63.1 %
ABS Certificate
ABS Certificate, Contactor, AF400...AF2050 (Sweden)
BV Certificate
BV Certificate, Contactor, AF400 ... AF2850
CB Certificate
SE-82316
CCS Certificate
CCS Certificate, Contactor, AF116 to AF2850 (Sweden)
CQC Certificate
CQC Certificate, AC Contactor, AF400-30-*-*,AF460-30-*-*,AFS400-30-*-*, AFS460-30-*-*, Made in Sweden | CQC Certificate, Contactor, AF400, AF460, Made in China
CSA Certificate
306711
Declaration of Conformity - CCC
CCC Declaration of Conformity, AC Contactor, AF400-30-*-*,AF460-30-*-*,AFS400-30-*-*, AFS460-30-*-*, Made in Sweden | CCC Declaration of Conformity, Contactor, AF400, AF460, Made in China
Declaration of Conformity - CE
CE Declaration of Conformity - Contactor - AF400B...AF2850B
Declaration of Conformity - UKCA
UK Declaration of Conformity - Contactors >100A
DNV Certificate
DNV_E-10966
DNV GL Certificate
DNV Certificate, Contactor, AF400...AF2850
EAC Certificate
9AKK107046A8618
GL Certificate
GL_42988-02HH
LR Certificate
Lloyds register Certificate, Contactor, AF400...AF2850
RINA Certificate
RINA Certificate, AF95, AF110, AF145, AF185, AF210, AF260, AF300, AF400, AF460, AF580, AF750, AF1250, AF1350, AF1650, AF2050, AF2650, AF116, AF140, AF146, AF190, AF205, AF265, AF305, AF370
RMRS Certificate
9AKK107045A6978
UL Certificate
cULus Certificate, Contactor, AF400, AF460, AFS400, AFS460
Package Level 1 Units
box 1 piece
Package Level 1 Width
280 mm
Package Level 1 Depth / Length
375 mm
Package Level 1 Height
310 mm
Package Level 1 Gross Weight
12 kg
Package Level 1 EAN
7320500217917
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
Feature: Wide 24-60 V DC control voltage range → Benefit: Maintains reliable coil operation despite control voltage variations, reducing nuisance tripping; Application: Automated conveyors and pumps in variable-power environments. Feature: Built-in surge protection and AF technology → Benefit: Improves energy efficiency and reduces panel heat, lowering cooling loads; Application: Industrial drives with fluctuating supply voltages. Feature: 3-pole block design with pre-mounted auxiliary contacts → Benefit: Simplifies installation and future expansion, enabling quick integration into control schemes; Application: Machine tools and packaging lines. Feature: High current ratings up to 700 A AC-1 and 250 kW at 400 V AC → Benefit: Supports large motors and high-starting loads with dependable performance; Application: Material handling and large fans. Feature: Standard ferrules and compatible accessories → Benefit: Streamlines wiring and maintenance, reducing installation time; Application: Panel builders and retrofit projects. Feature: Compact footprint (186x216x278 mm) and 10.6 kg weight → Benefit: Fits in constrained spaces while delivering robust performance; Application: OEM control cabinets and remote mounting. Feature: Broad certifications (CE, UL/CSA, UKCA) → Benefit: Minimizes regulatory risk and accelerates approval for global deployments; Application: Global manufacturing facilities and multi-region projects.
Get a Quick Quote for a ABB 1SFL597063R6822
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFL597063R6822?
Enquire Now
FAQs
Install using main circuit bars up to 47 mm² and rigid Cu/Al cables up to 240 mm². Secure with a tightening torque of 35 N·m for main circuits and cable lugs, mount according to the 186x216x278 mm footprint, and attach pre-mounted auxiliary contacts for future expansion.
The coil operates at 24 to 60 V DC (50 Hz). Coil consumption is 12 VA holding at max rated voltage and 900 VA pull-in at max rated voltage, enabling stable operation across voltage variations.
Yes. It supports motors up to 250 kW at 400 V AC (AC-3) and 400 hp / 480 V UL, with main circuit ratings up to 650 A UL and 700 A (AC-1), making it appropriate for demanding drives and conveyors.
This model carries CE, UL/CSA, and UKCA documentation, along with various third-party certificates (BV, DNV, GL, etc.). Such certifications help shorten approval times, satisfy regulatory requirements, and enable global deployments in diverse industries.
Dimensions are 186 mm wide, 216 mm deep, and 278 mm high, with a net weight of 10.6 kg. Mount in standard control cabinets, using Bar 47 mm² main circuits, and plan for ambient temperatures from -25 to 50°C near relays, or -40 to 70°C for storage conditions.
