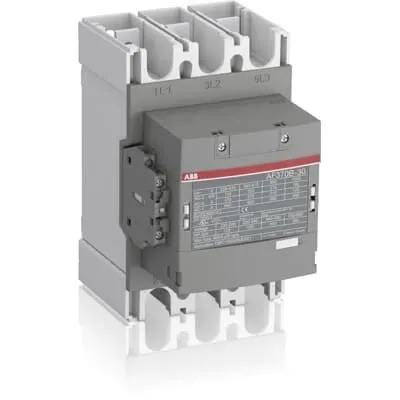

ABB 1SFL607063R1422 Contactor - AF Technology, 1000 V General Use 520 A
Part Number: 1SFL607063R1422
Quick Summary
ABB AF Contactor 1SFL607063R1422 delivers reliable motor control for demanding drives in conveyors, pumps, and fans. In real-world panels, voltage swings and panel energy waste can trigger unnecessary trips and higher operating costs. This device leverages AF technology with a wide control voltage range and built-in surge protection to maintain distinct operations even in unstable networks. It carries CE, UL/CSA general-use certifications, and UKCA/EAC marks, enabling global deployment. For system integrators and maintenance teams, the compact, extensible design reduces wiring effort and spare-part stock while boosting overall plant efficiency and uptime through robust protection and scalable control options. The result is safer, greener, and more cost-effective motor control within modern electrical protection and circuit control ecosystems.
Product Information
Extended Description
1SFL607063R1422 ABB: The AF370B-30-22-14 is a 3 pole - 1000 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and standard ferrules, controlling motors up to 200 kW / 400 V AC (AC-3) or 300 hp / 480 V UL and switching power circuits up to 600 A (AC-1) or 520 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (250-500 V 50/60 Hz ), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Data Sheet, Technical Information (Part 2)
Contactors and Overload relays guide
Instructions and Manuals
Operating instruction, Contactor, AF(S)190 ... AF(S)370
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Dimension Diagram
Dimension Drawing, Contactor, AF265, AF305,AF370
Product Net Width
140 mm
Product Net Depth / Length
180 mm
Product Net Height
225 mm
Product Net Weight
3.9 kg
Number of Main Contacts NO
3
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
2
Number of Auxiliary Contacts NC
2
Number of Poles
3P
Standards
IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1, IEC 60077-1 (applicable parts), IEC 60077-2 (applicable parts), EN 50155 (applicable parts), TR CU 001/2011, IEC 61373, For compliance confirmation on applicable parts based on your application and combination, please consult your ABB sales representatives.
Rated Operational Voltage
Main Circuit 1000 V
Rated Operational Current AC-1 (Ie)
(1000 V) 40 °C 400 A | (1000 V) 60 °C 350 A | (1000 V) 70 °C 290 A | (690 V) 40 °C 600 A | (690 V) 60 °C 500 A | (690 V) 70 °C 400 A
Rated Operational Current AC-3 (Ie)
(415 V) 55 °C 370 A | (440 V) 55 °C 370 A | (500 V) 55 °C 350 A | (690 V) 55 °C 315 A | (1000 V) 55 °C 100 A | (380 / 400 V) 55 °C 370 A | (220 / 230 / 240 V) 55 °C 370 A
Rated Operational Current DC-1 (Ie)
(100 V) 1 Pole, 40 °C 520 A | (100 V) 1 Pole, 60 °C 500 A | (100 V) 1 Pole, 70 °C 400 A | (110 V) 1-Pole, 40 °C 520 A | (110 V) 1-Pole, 60 °C 500 A | (110 V) 1-Pole, 70 °C 400 A | (110 V) 2 Poles in Series, 40 °C 520 A | (110 V) 2 Poles in Series, 60 °C 500 A | (110 V) 2 Poles in Series, 70 °C 400 A | (110 V) 3 Poles in Series, 40 °C 520 A | (110 V) 3 Poles in Series, 60 °C 500 A | (110 V) 3 Poles in Series, 70 °C 400 A | (175 V) 2 Poles in Series, 40 °C 520 A | (175 V) 2 Poles in Series, 60 °C 500 A | (175 V) 2 Poles in Series, 70 °C 400 A | (200 V) 2 Poles in Series, 40 °C 520 A | (200 V) 2 Poles in Series, 60 °C 500 A | (200 V) 2 Poles in Series, 70 °C 400 A | (220 V) 2 Poles in Series, 40 °C 520 A | (220 V) 2 Poles in Series, 60 °C 500 A | (220 V) 2 Poles in Series, 70 °C 400 A | (220 V) 3 Poles in Series, 40 °C 520 A | (220 V) 3 Poles in Series, 60 °C 500 A | (220 V) 3 Poles in Series, 70 °C 400 A | (260 V) 3 Poles in Series, 40 °C 520 A | (260 V) 3 Poles in Series, 60 °C 500 A | (260 V) 3 Poles in Series, 70 °C 400 A | (300 V) 3 Poles in Series, 40 °C 520 A | (300 V) 3 Poles in Series, 60 °C 500 A | (300 V) 3 Poles in Series, 70 °C 400 A | (340 V) 3 Poles in Series, 40 °C 520 A | (340 V) 3 Poles in Series, 60 °C 500 A | (340 V) 3 Poles in Series, 70 °C 400 A | (72 V) 1-Pole, 40 °C 520 A | (72 V) 1-Pole, 60 °C 500 A | (72 V) 1-Pole, 70 °C 400 A | (72 V) 2 Poles in Series, 40 °C 520 A | (72 V) 2 Poles in Series, 60 °C 500 A | (72 V) 2 Poles in Series, 70 °C 400 A | (72 V) 3 Poles in Series, 40 °C 520 A | (72 V) 3 Poles in Series, 60 °C 500 A | (72 V) 3 Poles in Series, 70 °C 400 A | (90 V) 1 Pole, 40 °C 520 A | (90 V) 1 Pole, 60 °C 500 A | (90 V) 1 Pole, 70 °C 400 A
Rated Operational Current DC-3 (Ie)
(110 V) 2 Poles in Series, 40 °C 450 A | (110 V) 2 Poles in Series, 60 °C 450 A | (110 V) 2 Poles in Series, 70 °C 400 A | (110 V) 3 Poles in Series, 40 °C 450 A | (110 V) 3 Poles in Series, 60 °C 450 A | (110 V) 3 Poles in Series, 70 °C 400 A | (220 V) 3 Poles in Series, 40 °C 450 A | (220 V) 3 Poles in Series, 60 °C 450 A | (220 V) 3 Poles in Series, 70 °C 400 A | (72 V) 2 Poles in Series, 40 °C 450 A | (72 V) 2 Poles in Series, 60 °C 450 A | (72 V) 2 Poles in Series, 70 °C 400 A | (72 V) 3 Poles in Series, 40 °C 450 A | (72 V) 3 Poles in Series, 60 °C 450 A | (72 V) 3 Poles in Series, 70 °C 400 A
Rated Operational Current DC-5 (Ie)
(110 V) 2 Poles in Series, 40 °C 450 A | (110 V) 2 Poles in Series, 60 °C 450 A | (110 V) 2 Poles in Series, 70 °C 400 A | (110 V) 3 Poles in Series, 40 °C 450 A | (110 V) 3 Poles in Series, 60 °C 450 A | (110 V) 3 Poles in Series, 70 °C 400 A | (220 V) 3 Poles in Series, 40 °C 450 A | (220 V) 3 Poles in Series, 60 °C 450 A | (220 V) 3 Poles in Series, 70 °C 400 A | (72 V) 2 Poles in Series, 40 °C 450 A | (72 V) 2 Poles in Series, 60 °C 450 A | (72 V) 2 Poles in Series, 70 °C 400 A | (72 V) 3 Poles in Series, 40 °C 450 A | (72 V) 3 Poles in Series, 60 °C 450 A | (72 V) 3 Poles in Series, 70 °C 400 A
Rated Operational Power AC-3 (Pe)
(415 V) 200 kW | (440 V) 200 kW | (500 V) 250 kW | (690 V) 315 kW | (1000 V) 200 kW | (380 / 400 V) 200 kW | (220 / 230 / 240 V) 110 kW
Rated Short-time Withstand Current Low Voltage (Icw)
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 2960 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 600 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 1208 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 3700 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 1709 A
Rated Insulation Voltage (Ui)
acc. to UL/CSA 1000 V
Mechanical Durability
5 million
Maximum Mechanical Switching Frequency
300 cycles per hour
Rated Control Circuit Voltage (Uc)
50 Hz / 60 Hz 250 ... 500 V | DC Operation 250 ... 500 V
Coil Consumption
Holding at Max. Rated Control Circuit Voltage 50 Hz 20.4 V·A | Holding at Max. Rated Control Circuit Voltage 60 Hz 20.4 V·A | Pull-in at Max. Rated Control Circuit Voltage 50 Hz 550 V·A | Pull-in at Max. Rated Control Circuit Voltage 60 Hz 550 V·A | Pull-in at Max. Rated Control Circuit Voltage DC 650 W
Power Loss
27 W | at Rated Operating Conditions per Pole 27 W
Terminal Type
Main Circuit: Bars
Product Name
Block Contactor
General Use Rating UL/CSA
(1000 V AC) 520 A
Horsepower Rating UL/CSA
(200 ... 208 V AC) Three Phase 125 hp | (220 ... 240 V AC) Three Phase 150 hp | (440 ... 480 V AC) Three Phase 300 hp | (550 ... 600 V AC) Three Phase 350 hp
Full Load Amps Motor Use
(200 ... 208 V AC) Three Phase 359 A | (220 ... 240 V AC) Three Phase 360 A | (440 ... 480 V AC) Three Phase 361 A | (550 ... 600 V AC) Three Phase 336 A
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
ABB EcoSolutions
Yes
ABB Site Meeting Group Waste To Landfill Target
Non-hazardous waste is sent to a landfill, where there is no alternative option available within 100km of a facility
End Of Life Disassembling Instructions
End-of-life instruction - AF(S)265(B)-**(RT) to AF(S)370(B)-**(RT)
Environmental Product Declaration - EPD
Environmental Product Declaration, Contactors, AF(S)265-AF(S)370 (SE)
Improved Energy Efficiency for Customers
Product Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line
Recyclability Rate of the Product acc. to EN45555
Design for Closing Resource Loops - Standard EN45555 - 76.3 %
Sustainable Material Content in Product (wt. %)
Recycled Metal - 33 %
A2L Certificate – UL
UL Certificate of Compliance A2L, Contactor, AF190 - AF370
CB Certificate
SE-89316
CQC Certificate
CQC Certificate, AC Contactor, AF265-*-*-*,AF305-*-*-*,AF370-*-*-*,AF265B-*-*-*,AF305B-*-*-*,AF370B-*-*-*, Made in Sweden
Declaration of Conformity - CCC
CCC Declaration of Conformity, AC Contactor, AF265-*-*-*,AF305-*-*-*,AF370-*-*-*,AF265B-*-*-*,AF305B-*-*-*,AF370B-*-*-*, Made in Sweden
Declaration of Conformity - CE
CE Declaration of Conformity - Contactor - AF116B...RT to AF370B...RT
Declaration of Conformity - UKCA
UK Declaration of Conformity - Contactors >100A - Rail application
EAC Certificate
9AKK107046A8618
UL Certificate
cULus Certificate, Contactor, AF265, AF305, AF370, AX260, AX300, AX370, AFS265, AFS305, AFS370
Package Level 1 Units
box 1 piece
Package Level 1 Width
263 mm
Package Level 1 Depth / Length
203 mm
Package Level 1 Height
289 mm
Package Level 1 Gross Weight
4.6 kg
Package Level 1 EAN
7320500510957
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4755 >> Contactors
E-Number (Sweden)
3210459
Feature AF technology offers a wide control voltage range of 250 to 500 V (AC) or DC operation, enabling stable operation across voltage variations. → Business Impact This reduces panel energy consumption and minimizes control-voltage-induced trips, improving reliability for critical drives. → Application Use this in systems where supply voltage fluctuates, such as remote installations or sites with irregular power quality. In industry contexts, this translates to fewer start-stop events and smoother motor operation. Feature Pre-mounted auxiliary contacts (2 NO / 2 NC) and standard ferrules are included, with a three-pole main circuit and a 3P configuration. → Business Impact Faster assembly and easier field wiring, lowering labor costs and reducing risk of miswiring. → Application Ideal for compact control panels requiring quick-ready, expandable contact configurations and straightforward maintenance. Feature AF technology with a wide rated operating voltage and high current capability for AC-3 and AC-1 switching. → Business Impact Supports motor loads up to 200 kW at 400 V AC (AC-3) and high-current switching up to 370 A (UL/CSA equivalents), delivering scalable drive control. → Application Suitable for fans, pumps, and conveyors in medium- to high-power automation tasks. Feature Built-in surge protection and robust mechanical design deliver reliability in challenging environments. → Business Impact Reduces downstream damage and downtime from voltage spikes, improving plant availability. → Application Essential in industrial environments with transients, where protection against surges is required. Feature Compact block design with bar-terminal main circuit and 140 x 180 x 225 mm footprint, weighing 3.9 kg. → Business Impact Saves panel space and simplifies installation while maintaining rugged performance. → Application Fits compact legacy or new-build switchgear assemblies with easy mounting and maintenance. Feature Compliance with IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, and related standards. → Business Impact Ensures regulatory alignment and smoother cross-border deployments, reducing project risk. → Application For global industrial installations requiring robust certification coverage.
Get a Quick Quote for a ABB 1SFL607063R1422
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFL607063R1422?
Enquire Now
FAQs
The AF370B-30-22-14 supports a wide control voltage range of 250 to 500 V (AC) or DC operation, with a main circuit rated up to 1000 V. This enables versatile panel designs and simplifies drive integration across different regional power systems.
AC-3 ratings include up to 315 A at 690 V and 100 A at 1000 V, while AC-1 ratings reach up to 400 A at 1000 V (typical values vary by voltage and ambient temperature). These figures support motor control tasks up to roughly 200 kW at 400 V AC in AC-3 service.
Yes. The device is rated for main circuits up to 1000 V and UL/CSA general-use ratings around 520 A, enabling reliable switching of high-power motors while meeting mainstream regulatory requirements.
The product carries CE, UL/CSA, UKCA, EAC, and CCC certifications, along with RoHS and REACH declarations. This broad certification suite supports global deployments and regulatory compliance across regions.
AF technology supports a wide control range and surge protection, reducing panel energy loss and tripping risk. Its block-design with optional add-on auxiliary contact blocks simplifies expansion, maintenance, and spare-part stocking, improving total cost of ownership over the life of the installation.
