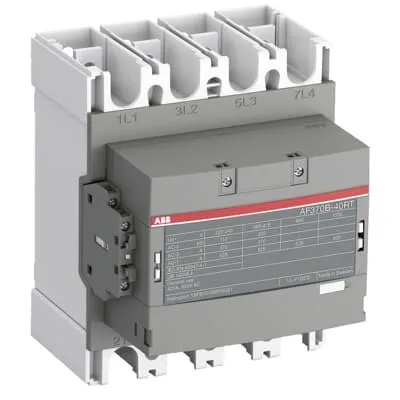

ABB AF370B-40-22RT-12 Contactor - UL/CSA General Use Rating
Part Number: 1SFL607262R1222
Quick Summary
ABB AF370B-40-22RT-12 Contactor is a four-pole motor starter designed for heavy-duty industrial drives and automation applications. In practice, engineers face voltage swings and energy waste from suboptimal control voltages; AF technology helps stabilize the control circuit across wide variations, delivering reliable operation. This device carries key certifications such as CE, UL/CSA, and UKCA, underscoring compliance for global deployment. By combining a compact AF design with pre-mounted auxiliary contacts and scalable accessories, it supports efficient panel buildouts, improved lifecycle costs, and easier maintenance in demanding environments.
Product Information
Extended Description
1SFL607262R1222 ABB: The AF370B-40-22RT-12 is a 4 pole - 1000 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and ring tongue ferrules, controlling motors up to 200 kW / 400 V AC (AC-3) / and switching power circuits up to 525 A (AC-1) or 420 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (48-130 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Data Sheet, Technical Information (Part 2)
Contactors and Overload relays guide
Instructions and Manuals
Operating instruction, Contactor, AF(S)190 ... AF(S)370
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
184 mm
Product Net Depth / Length
180 mm
Product Net Height
225 mm
Product Net Weight
5.7 kg
Number of Main Contacts NO
4
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
2
Number of Auxiliary Contacts NC
2
Number of Poles
4P
Rated Operational Voltage
Main Circuit 1000 V
Rated Operational Current AC-1 (Ie)
(1000 V) 40 °C 400 A | (1000 V) 60 °C 350 A | (1000 V) 70 °C 290 A | (690 V) 40 °C 525 A | (690 V) 60 °C 425 A | (690 V) 70 °C 350 A
Rated Operational Current AC-3 (Ie)
(415 V) 55 °C 370 A | (440 V) 55 °C 370 A | (380 / 400 V) 55 °C 370 A | (220 / 230 / 240 V) 55 °C 370 A
Rated Operational Current DC-1 (Ie)
(100 V) 1 Pole, 40 °C 520 A | (100 V) 1 Pole, 60 °C 425 A | (100 V) 1 Pole, 70 °C 350 A | (110 V) 1-Pole, 40 °C 520 A | (110 V) 1-Pole, 60 °C 425 A | (110 V) 1-Pole, 70 °C 350 A | (110 V) 2 Poles in Series, 40 °C 520 A | (110 V) 2 Poles in Series, 60 °C 425 A | (110 V) 2 Poles in Series, 70 °C 350 A | (110 V) 3 Poles in Series, 40 °C 520 A | (110 V) 3 Poles in Series, 60 °C 425 A | (110 V) 3 Poles in Series, 70 °C 350 A | (175 V) 2 Poles in Series, 40 °C 520 A | (175 V) 2 Poles in Series, 60 °C 425 A | (175 V) 2 Poles in Series, 70 °C 350 A | (200 V) 2 Poles in Series, 40 °C 520 A | (200 V) 2 Poles in Series, 60 °C 425 A | (200 V) 2 Poles in Series, 70 °C 350 A | (220 V) 2 Poles in Series, 40 °C 520 A | (220 V) 2 Poles in Series, 60 °C 425 A | (220 V) 2 Poles in Series, 70 °C 350 A | (220 V) 3 Poles in Series, 40 °C 520 A | (220 V) 3 Poles in Series, 60 °C 425 A | (220 V) 3 Poles in Series, 70 °C 350 A | (260 V) 3 Poles in Series, 40 °C 520 A | (260 V) 3 Poles in Series, 60 °C 425 A | (260 V) 3 Poles in Series, 70 °C 350 A | (300 V) 3 Poles in Series, 40 °C 520 A | (300 V) 3 Poles in Series, 60 °C 425 A | (300 V) 3 Poles in Series, 70 °C 350 A | (340 V) 3 Poles in Series, 40 °C 520 A | (340 V) 3 Poles in Series, 60 °C 425 A | (340 V) 3 Poles in Series, 70 °C 350 A | (350 V) 4 Poles in Series, 40 °C 520 A | (350 V) 4 Poles in Series, 60 °C 425 A | (350 V) 4 Poles in Series, 70 °C 350 A | (400 V) 4 Poles in Series, 40 °C 520 A | (400 V) 4 Poles in Series, 60 °C 425 A | (400 V) 4 Poles in Series, 70 °C 350 A | (440 V) 4 Poles in Series, 40 °C 520 A | (440 V) 4 Poles in Series, 60 °C 425 A | (440 V) 4 Poles in Series, 70 °C 350 A | (72 V) 1-Pole, 40 °C 520 A | (72 V) 1-Pole, 60 °C 425 A | (72 V) 1-Pole, 70 °C 350 A | (72 V) 2 Poles in Series, 40 °C 520 A | (72 V) 2 Poles in Series, 60 °C 425 A | (72 V) 2 Poles in Series, 70 °C 350 A | (72 V) 3 Poles in Series, 40 °C 520 A | (72 V) 3 Poles in Series, 60 °C 425 A | (72 V) 3 Poles in Series, 70 °C 350 A | (90 V) 1 Pole, 40 °C 520 A | (90 V) 1 Pole, 60 °C 425 A | (90 V) 1 Pole, 70 °C 350 A
Rated Operational Current DC-3 (Ie)
(110 V) 2 Poles in Series, 40 °C 450 A | (110 V) 2 Poles in Series, 60 °C 425 A | (110 V) 2 Poles in Series, 70 °C 350 A | (110 V) 3 Poles in Series, 40 °C 450 A | (110 V) 3 Poles in Series, 60 °C 425 A | (110 V) 3 Poles in Series, 70 °C 350 A | (220 V) 3 Poles in Series, 40 °C 450 A | (220 V) 3 Poles in Series, 60 °C 425 A | (220 V) 3 Poles in Series, 70 °C 350 A | (72 V) 2 Poles in Series, 40 °C 450 A | (72 V) 2 Poles in Series, 60 °C 425 A | (72 V) 2 Poles in Series, 70 °C 350 A | (72 V) 3 Poles in Series, 40 °C 450 A | (72 V) 3 Poles in Series, 60 °C 425 A | (72 V) 3 Poles in Series, 70 °C 350 A
Rated Operational Current DC-5 (Ie)
(110 V) 2 Poles in Series, 40 °C 450 A | (110 V) 2 Poles in Series, 60 °C 425 A | (110 V) 2 Poles in Series, 70 °C 350 A | (110 V) 3 Poles in Series, 40 °C 450 A | (110 V) 3 Poles in Series, 60 °C 425 A | (110 V) 3 Poles in Series, 70 °C 350 A | (220 V) 3 Poles in Series, 40 °C 450 A | (220 V) 3 Poles in Series, 60 °C 425 A | (220 V) 3 Poles in Series, 70 °C 350 A | (72 V) 2 Poles in Series, 40 °C 450 A | (72 V) 2 Poles in Series, 60 °C 425 A | (72 V) 2 Poles in Series, 70 °C 350 A | (72 V) 3 Poles in Series, 40 °C 450 A | (72 V) 3 Poles in Series, 60 °C 425 A | (72 V) 3 Poles in Series, 70 °C 350 A
Rated Operational Power AC-3 (Pe)
(415 V) 200 kW | (440 V) 200 kW | (500 V) 250 kW | (690 V) 315 kW | (1000 V) 200 kW | (380 / 400 V) 200 kW | (220 / 230 / 240 V) 110 kW
Rated Short-time Withstand Current Low Voltage (Icw)
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 2960 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 600 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 1208 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 3700 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 1709 A
Rated Insulation Voltage (Ui)
acc. to UL/CSA 1000 V
Mechanical Durability
5 million
Maximum Mechanical Switching Frequency
300 cycles per hour
Rated Control Circuit Voltage (Uc)
50 Hz / 60 Hz 48 ... 130 V | DC Operation 48 ... 130 V
Coil Consumption
Holding at Max. Rated Control Circuit Voltage 50 Hz 17 V·A | Holding at Max. Rated Control Circuit Voltage 60 Hz 17 V·A | Pull-in at Max. Rated Control Circuit Voltage 50 Hz 340 V·A | Pull-in at Max. Rated Control Circuit Voltage 60 Hz 340 V·A | Pull-in at Max. Rated Control Circuit Voltage DC 360 W
Power Loss
72 W | at Rated Operating Conditions per Pole 72 W
Terminal Type
Main Circuit: Bars
Product Name
Block Contactor
General Use Rating UL/CSA
(1000 V AC) 520 A
Horsepower Rating UL/CSA
(200 ... 208 V AC) Three Phase 50 Hp | (200 V AC) Three Phase 125 hp | (208 V AC) Three Phase 125 hp | (220 ... 240 V AC) Three Phase 60 Hp | (220 ... 240 V AC) Three Phase 150 hp | (440 ... 480 V AC) Three Phase 125 Hp | (440 ... 480 V AC) Three Phase 300 hp | (550 ... 600 V AC) Three Phase 150 Hp | (550 ... 600 V AC) Three Phase 350 hp
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
ABB EcoSolutions
Yes
ABB Site Meeting Group Waste To Landfill Target
Non-hazardous waste is sent to a landfill, where there is no alternative option available within 100km of a facility
End Of Life Disassembling Instructions
End-of-life instruction - AF(S)265(B)-**(RT) to AF(S)370(B)-**(RT)
Environmental Product Declaration - EPD
Environmental Product Declaration, Contactors, AF(S)265-AF(S)370 (SE)
Improved Energy Efficiency for Customers
Product Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line
Recyclability Rate of the Product acc. to EN45555
Design for Closing Resource Loops - Standard EN45555 - 76.3 %
Sustainable Material Content in Product (wt. %)
Recycled Metal - 33 %
A2L Certificate – UL
UL Certificate of Compliance A2L, Contactor, AF190 - AF370
CB Certificate
SEMKO_SE-73326
CQC Certificate
CQC Certificate, AC Contactor, AF265-*-*-*,AF305-*-*-*,AF370-*-*-*,AF265B-*-*-*,AF305B-*-*-*,AF370B-*-*-*, Made in Sweden
cURus Certificate
cURus certificate, Contactor, AF265B..RT - AF370B-40...RT
Declaration of Conformity - CCC
CCC Declaration of Conformity, AC Contactor, AF265-*-*-*,AF305-*-*-*,AF370-*-*-*,AF265B-*-*-*,AF305B-*-*-*,AF370B-*-*-*, Made in Sweden
Declaration of Conformity - CE
CE Declaration of Conformity - Contactor - AF116B...RT to AF370B...RT
Declaration of Conformity - UKCA
UK Declaration of Conformity - Contactors >100A - Rail application
EAC Certificate
9AKK107046A8618
UR Certificate
cURus certificate, Contactor, AF265B..RT - AF370B-40...RT
Package Level 1 Units
box 1 piece
Package Level 1 Width
212 mm
Package Level 1 Depth / Length
262 mm
Package Level 1 Height
212 mm
Package Level 1 Gross Weight
6.4 kg
Package Level 1 EAN
7320500510124
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4755 >> Contactors
Feature: AF technology delivers a wide control voltage range of 48-130 V (AC/DC) for the coil. Business Impact: Reduces panel energy consumption and minimizes nuisance tripping from supply fluctuations. Application: Ideal for installations with variable networks or inconsistent supply, such as remote automation sites. Feature: Built-in surge protection and a compact block design. Business Impact: Enhances reliability and saves space in control cabinets while simplifying serviceability. Application: Suitable for motor control centers requiring robust protection with scalable accessory options. Feature: Four main NO contacts plus two NO and two NC auxiliary contacts. Business Impact: Improves interlocking, feedback, and control logic without adding separate components. Application: Starter circuits with interlocks, signaling, and auxiliary control in conveyors and pumps. Feature: Rated operational current AC-1 up to 525 A at 690 V and AC-3 up to 370 A across multiple voltages. Business Impact: Supports motors up to 200 kW and high-demand drives, reducing the need for mid-range replacements. Application: Heavy-duty motor control for mixed-voltage networks in process lines and material handling. Feature: Coil consumption and power loss managed for energy efficiency (72 W per pole, hold and pull-in values specified). Business Impact: Lower standby energy and cooler panels, extending component life. Application: Continuous operation in energy-conscious industrial facilities. Feature: Mechanical durability rated at 5 million cycles with a maximum switching frequency of 300 cycles per hour. Business Impact: Longer life, predictable maintenance cycles, and reduced total cost of ownership. Application: Frequent on/off duty cycles in packaging, HVAC, and material handling lines. Feature: Compatibility with add-on auxiliary contact blocks and a full range of accessories. Business Impact: Scales from simple starts to complex control architectures without replacing the base device. Application: Modular automation projects requiring future expansion and simplified wiring.
Get a Quick Quote for a ABB 1SFL607262R1222
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFL607262R1222?
Enquire Now
FAQs
The AF370B-40-22RT-12 uses main circuit bars for connectivity and supports add-on auxiliary contact blocks, enabling seamless integration into existing control panels. Its compact block design fits standard cabinet layouts, while the 4P configuration simplifies wiring and interlocking logic. Ensure proper torque on terminals and verify voltage ratings align with your system, particularly when upgrading from lower-spec devices.
Key ratings include four NO main contacts and 2 NO/2 NC auxiliary contacts, rated for main circuit up to 1000 V and operating currents up to 525 A (AC-1 at 690 V) and 370 A (AC-3 at multiple voltages). Coil voltage supports 48–130 V (AC or DC). These specs enable reliable motor starts for up to 200 kW at 690–1000 V networks.
Yes. The contactor is designed for AC-3 duty up to 370 A at 690 V and accommodates higher-power motor control by offering a robust four-pole arrangement, surge protection, and AF technology that tolerates voltage fluctuations. For 200 kW motors at high voltage, verify voltage and current envelopes for the specific motor and drive configuration.
This ABB contactor carries CE and UKCA declarations, UL/CSA labeling, and cURus certification. It also aligns with RoHS/REACH requirements and offers an EPD option for environmental reporting. When deploying globally, ensure the exact regional certifications match your installation site requirements and customer standards.
With a mechanical durability of about 5 million cycles and a rated short-time withstand current of up to 2960 A (10 s), the AF370B-40-22RT-12 provides long service life in frequent switching environments. The integrated surge protection and scalable accessory ecosystem reduce maintenance interruptions, lowering total cost of ownership in automation projects.
