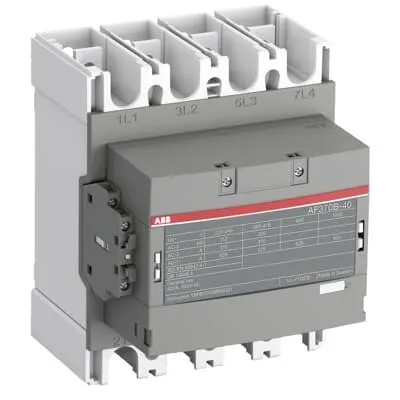

ABB AF370B-40-22-14 Contactor - UL 520 A, 1000 V
Part Number: 1SFL607263R1422
Quick Summary
ABB AF370B-40-22-14 Contactor is a four-pole power switch designed for motor control in industrial automation. In many panel builds, variations in control voltage can cause erratic operation or nuisance trips; this AF technology provides a wide control voltage range and built‑in surge protection to stabilize performance across unstable networks. The device carries CE, UL/CSA General Use, and UKCA declarations, along with RoHS and REACH compliance, ensuring global market access. By combining a compact footprint with pre-mounted auxiliary contacts and a broad accessory ecosystem, it reduces wiring complexity, installation time, and total cost of ownership, while meeting stringent safety and performance standards for modern factories.
Product Information
Extended Description
1SFL607263R1422 ABB: The AF370B-40-22-14 is a 4 pole - 1000 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and standard ferrules, controlling motors up to 200 kW / 400 V AC (AC-3) / and switching power circuits up to 525 A (AC-1) or 420 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (250-500 V 50/60 Hz ), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Data Sheet, Technical Information (Part 2)
Contactors and Overload relays guide
Instructions and Manuals
Operating instruction, Contactor, AF(S)190 ... AF(S)370
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
184 mm
Product Net Depth / Length
180 mm
Product Net Height
225 mm
Product Net Weight
5.7 kg
Number of Main Contacts NO
4
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
2
Number of Auxiliary Contacts NC
2
Number of Poles
4P
Rated Operational Voltage
Main Circuit 1000 V
Rated Operational Current AC-1 (Ie)
(1000 V) 40 °C 400 A | (1000 V) 60 °C 350 A | (1000 V) 70 °C 290 A | (690 V) 40 °C 525 A | (690 V) 60 °C 425 A | (690 V) 70 °C 350 A
Rated Operational Current AC-3 (Ie)
(415 V) 55 °C 370 A | (440 V) 55 °C 370 A | (380 / 400 V) 55 °C 370 A | (220 / 230 / 240 V) 55 °C 370 A
Rated Operational Current DC-1 (Ie)
(100 V) 1 Pole, 40 °C 520 A | (100 V) 1 Pole, 60 °C 425 A | (100 V) 1 Pole, 70 °C 350 A | (110 V) 1-Pole, 40 °C 520 A | (110 V) 1-Pole, 60 °C 425 A | (110 V) 1-Pole, 70 °C 350 A | (110 V) 2 Poles in Series, 40 °C 520 A | (110 V) 2 Poles in Series, 60 °C 425 A | (110 V) 2 Poles in Series, 70 °C 350 A | (110 V) 3 Poles in Series, 40 °C 520 A | (110 V) 3 Poles in Series, 60 °C 425 A | (110 V) 3 Poles in Series, 70 °C 350 A | (175 V) 2 Poles in Series, 40 °C 520 A | (175 V) 2 Poles in Series, 60 °C 425 A | (175 V) 2 Poles in Series, 70 °C 350 A | (200 V) 2 Poles in Series, 40 °C 520 A | (200 V) 2 Poles in Series, 60 °C 425 A | (200 V) 2 Poles in Series, 70 °C 350 A | (220 V) 2 Poles in Series, 40 °C 520 A | (220 V) 2 Poles in Series, 60 °C 425 A | (220 V) 2 Poles in Series, 70 °C 350 A | (220 V) 3 Poles in Series, 40 °C 520 A | (220 V) 3 Poles in Series, 60 °C 425 A | (220 V) 3 Poles in Series, 70 °C 350 A | (260 V) 3 Poles in Series, 40 °C 520 A | (260 V) 3 Poles in Series, 60 °C 425 A | (260 V) 3 Poles in Series, 70 °C 350 A | (300 V) 3 Poles in Series, 40 °C 520 A | (300 V) 3 Poles in Series, 60 °C 425 A | (300 V) 3 Poles in Series, 70 °C 350 A | (340 V) 3 Poles in Series, 40 °C 520 A | (340 V) 3 Poles in Series, 60 °C 425 A | (340 V) 3 Poles in Series, 70 °C 350 A | (350 V) 4 Poles in Series, 40 °C 520 A | (350 V) 4 Poles in Series, 60 °C 425 A | (350 V) 4 Poles in Series, 70 °C 350 A | (400 V) 4 Poles in Series, 40 °C 520 A | (400 V) 4 Poles in Series, 60 °C 425 A | (400 V) 4 Poles in Series, 70 °C 350 A | (440 V) 4 Poles in Series, 40 °C 520 A | (440 V) 4 Poles in Series, 60 °C 425 A | (440 V) 4 Poles in Series, 70 °C 350 A | (72 V) 1-Pole, 40 °C 520 A | (72 V) 1-Pole, 60 °C 425 A | (72 V) 1-Pole, 70 °C 350 A | (72 V) 2 Poles in Series, 40 °C 520 A | (72 V) 2 Poles in Series, 60 °C 425 A | (72 V) 2 Poles in Series, 70 °C 350 A | (72 V) 3 Poles in Series, 40 °C 520 A | (72 V) 3 Poles in Series, 60 °C 425 A | (72 V) 3 Poles in Series, 70 °C 350 A | (90 V) 1 Pole, 40 °C 520 A | (90 V) 1 Pole, 60 °C 425 A | (90 V) 1 Pole, 70 °C 350 A
Rated Operational Current DC-3 (Ie)
(110 V) 2 Poles in Series, 40 °C 450 A | (110 V) 2 Poles in Series, 60 °C 425 A | (110 V) 2 Poles in Series, 70 °C 350 A | (110 V) 3 Poles in Series, 40 °C 450 A | (110 V) 3 Poles in Series, 60 °C 425 A | (110 V) 3 Poles in Series, 70 °C 350 A | (220 V) 3 Poles in Series, 40 °C 450 A | (220 V) 3 Poles in Series, 60 °C 425 A | (220 V) 3 Poles in Series, 70 °C 350 A | (72 V) 2 Poles in Series, 40 °C 450 A | (72 V) 2 Poles in Series, 60 °C 425 A | (72 V) 2 Poles in Series, 70 °C 350 A | (72 V) 3 Poles in Series, 40 °C 450 A | (72 V) 3 Poles in Series, 60 °C 425 A | (72 V) 3 Poles in Series, 70 °C 350 A
Rated Operational Current DC-5 (Ie)
(110 V) 2 Poles in Series, 40 °C 450 A | (110 V) 2 Poles in Series, 60 °C 425 A | (110 V) 2 Poles in Series, 70 °C 350 A | (110 V) 3 Poles in Series, 40 °C 450 A | (110 V) 3 Poles in Series, 60 °C 425 A | (110 V) 3 Poles in Series, 70 °C 350 A | (220 V) 3 Poles in Series, 40 °C 450 A | (220 V) 3 Poles in Series, 60 °C 425 A | (220 V) 3 Poles in Series, 70 °C 350 A | (72 V) 2 Poles in Series, 40 °C 450 A | (72 V) 2 Poles in Series, 60 °C 425 A | (72 V) 2 Poles in Series, 70 °C 350 A | (72 V) 3 Poles in Series, 40 °C 450 A | (72 V) 3 Poles in Series, 60 °C 425 A | (72 V) 3 Poles in Series, 70 °C 350 A
Rated Operational Power AC-3 (Pe)
(415 V) 200 kW | (440 V) 200 kW | (500 V) 250 kW | (690 V) 315 kW | (1000 V) 200 kW | (380 / 400 V) 200 kW | (220 / 230 / 240 V) 110 kW
Rated Short-time Withstand Current Low Voltage (Icw)
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 2960 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 600 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 1208 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 3700 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 1709 A
Rated Insulation Voltage (Ui)
acc. to UL/CSA 1000 V
Mechanical Durability
5 million
Maximum Mechanical Switching Frequency
300 cycles per hour
Rated Control Circuit Voltage (Uc)
50 Hz / 60 Hz 250 ... 500 V | DC Operation 250 ... 500 V
Coil Consumption
Holding at Max. Rated Control Circuit Voltage 50 Hz 20.4 V·A | Holding at Max. Rated Control Circuit Voltage 60 Hz 20.4 V·A | Pull-in at Max. Rated Control Circuit Voltage 50 Hz 550 V·A | Pull-in at Max. Rated Control Circuit Voltage 60 Hz 550 V·A | Pull-in at Max. Rated Control Circuit Voltage DC 650 W
Power Loss
72 W | at Rated Operating Conditions per Pole 72 W
Terminal Type
Main Circuit: Bars
Product Name
Block Contactor
General Use Rating UL/CSA
(1000 V AC) 520 A
Horsepower Rating UL/CSA
(200 ... 208 V AC) Three Phase 50 Hp | (200 V AC) Three Phase 125 hp | (208 V AC) Three Phase 125 hp | (220 ... 240 V AC) Three Phase 60 Hp | (220 ... 240 V AC) Three Phase 150 hp | (440 ... 480 V AC) Three Phase 125 Hp | (440 ... 480 V AC) Three Phase 300 hp | (550 ... 600 V AC) Three Phase 150 Hp | (550 ... 600 V AC) Three Phase 350 hp
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
ABB EcoSolutions
Yes
ABB Site Meeting Group Waste To Landfill Target
Non-hazardous waste is sent to a landfill, where there is no alternative option available within 100km of a facility
End Of Life Disassembling Instructions
End-of-life instruction - AF(S)265(B)-**(RT) to AF(S)370(B)-**(RT)
Environmental Product Declaration - EPD
Environmental Product Declaration, Contactors, AF(S)265-AF(S)370 (SE)
Improved Energy Efficiency for Customers
Product Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line
Recyclability Rate of the Product acc. to EN45555
Design for Closing Resource Loops - Standard EN45555 - 76.3 %
Sustainable Material Content in Product (wt. %)
Recycled Metal - 33 %
A2L Certificate – UL
UL Certificate of Compliance A2L, Contactor, AF190 - AF370
CB Certificate
SEMKO_SE-73326
CQC Certificate
CQC Certificate, AC Contactor, AF265-*-*-*,AF305-*-*-*,AF370-*-*-*,AF265B-*-*-*,AF305B-*-*-*,AF370B-*-*-*, Made in Sweden
Declaration of Conformity - CCC
CCC Declaration of Conformity, AC Contactor, AF265-*-*-*,AF305-*-*-*,AF370-*-*-*,AF265B-*-*-*,AF305B-*-*-*,AF370B-*-*-*, Made in Sweden
Declaration of Conformity - CE
CE Declaration of Conformity - Contactor - AF116B...RT to AF370B...RT
Declaration of Conformity - UKCA
UK Declaration of Conformity - Contactors >100A - Rail application
EAC Certificate
9AKK107046A8618
UL Certificate
cULus Certificate, Contactor, AF265-40, AF305-40, AF370-40 (4-pole)
Package Level 1 Units
box 1 piece
Package Level 1 Width
212 mm
Package Level 1 Depth / Length
262 mm
Package Level 1 Height
212 mm
Package Level 1 Gross Weight
6.4 kg
Package Level 1 EAN
7320500510919
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4755 >> Contactors
E-Number (Sweden)
3210487
Four-pole construction enables robust motor switching, with a main circuit rated to 1000 V and AC-1 current up to 400 A; AC-3 rating reaches 370 A. This translates to a compact, space-saving panel design and clear load separation for demanding conveyors and pumps. Practical application: directly replaces multiple smaller devices and simplifies fault tracing. The coil control range of 250–500 V AC or DC, plus built-in surge protection, tolerates supply variations and reduces nuisance trips, delivering more stable operation and energy efficiency in fluctuating networks. Pre-mounted auxiliary contacts (2 NO and 2 NC) simplify control logic and wiring, with add-on blocks available for scalable automation and safer interlocks in complex start/stop sequences. AF technology also contributes to improved energy management, reducing heat and panel cooling needs while maintaining reliable switching at high duty cycles. Dimensional data (184 mm width, 180 mm depth, 225 mm height) and a 5.7 kg weight support straightforward installation in standard enclosures, with compatibility for CAD data and accessory blocks to accelerate engineering workflows.
Get a Quick Quote for a ABB 1SFL607263R1422
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFL607263R1422?
Enquire Now
FAQs
Begin with confirming a four-pole main circuit and existing support for 1000 V operation. Connect the main circuit bars as specified, mount the device in a suitable enclosure, and attach the pre-mounted auxiliary contacts (2 NO, 2 NC). Ensure wiring conforms to local standards and that the coil voltage matches the control supply (250–500 V AC/DC). Use the CAD data for layout, verify clearances, and incorporate add-on auxiliary blocks if zoned control requires extended signaling. Finally, perform a functional test and verify coordination with protective relays to prevent nuisance trips.
Key ratings include the main circuit voltage up to 1000 V, AC-1 current up to 400 A (1000 V, 40 °C), and AC-3 current up to 370 A at 415–440 V. The coil operates at 250–500 V for both AC and DC control, with built-in surge protection. The unit provides four poles (4P) and includes 2 NO/2 NC auxiliary contacts, which supports common motor start/stop circuits and interlock schemes. Ensure compliance with CE, UL/CSA, and UKCA for your region.
This contactor is ideal for motor protection and control in manufacturing lines, conveyors, pumps, and machine tools where reliable switching of high-current loads is required. Its 4P configuration and 1000 V rating support high-power motors up to about 200 kW (AC-3) across diverse voltages. The wide coil voltage tolerance reduces tripping in unstable networks, while the pre-mounted auxiliary contacts simplify control circuits and interlocks in start/stop sequences.
The AF370B-40-22-14 carries CE, UL/CSA general use ratings, and UKCA declarations. It also complies with RoHS and REACH, and is supported by related certificates such as UL Certificates and CQC/CCC in relevant markets. Environmental declarations include EPD for AF(S)265–AF(S)370 series and information on recyclability and end-of-life instructions, supporting responsible procurement and regulatory adherence.
The 4P AF370B-40-22-14 reduces panel footprint and wiring complexity, cutting installation time and cabling costs. Built-in surge protection and wide voltage tolerance minimize nuisance trips, improving line uptime. Its mechanical durability (millions of cycles) supports longer service intervals, and the ability to add auxiliary blocks enables scalable control logic without significant rewiring. Overall, it lowers lifecycle costs while boosting energy efficiency in motor control.
