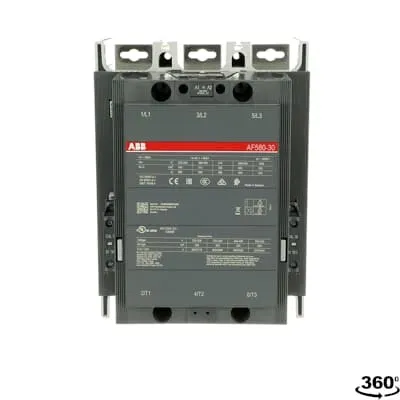

ABB 1SFL617001R7022 Contactor - AF580-30-22 100-250V
Part Number: 1SFL617001R7022
Quick Summary
ABB 1SFL617001R7022 Contactor is a high-capacity motor controller for industrial automation applications. Users often contend with voltage swings and nuisance trips that disrupt production; this device tolerates wide control voltage ranges and delivers reliable start-stop performance. The AF580 technology, built-in surge protection, and pre-mounted auxiliary contacts simplify panel design and improve uptime. It also supports 3-pole operation up to 1000 V IEC and 600 V UL, enabling safe motor control across global standards. With a compact block-type design and easy add-on accessories, it reduces wiring, cabinet space, and installation time. This solution aligns with CE/UL-style compliance expectations and supports energy-efficient control within modern automation architectures.
Product Information
Extended Description
1SFL617001R7022 ABB: The AF580-30-22-70 is a 3 pole - 1000 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and Main Circuit Bars, controlling motors up to 315 kW / 400 V AC (AC-3) or 500 hp / 480 V UL and switching power circuits up to 800 A (AC-1) or 750 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
