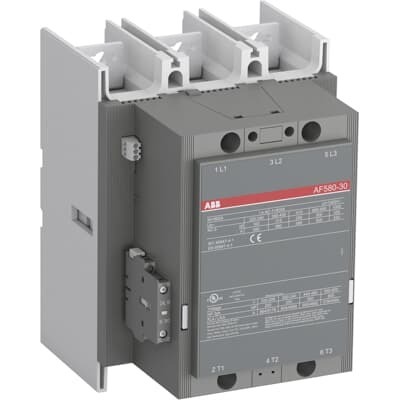

ABB 1SFL617001R7111 Block Contactor - CE/UL Ready
Part Number: 1SFL617001R7111
Quick Summary
ABB AF580-30-11-71 is a three-pole block contactor designed for robust motor control in medium to large industrial installations. This proven solution helps address voltage fluctuations and panel energy waste by using AF technology with a wide control voltage range and built-in surge protection. It is qualified to CE, UKCA, and UL/CSA standards, with RoHS and REACH declarations supporting sustainable compliance. The device ships with pre-mounted auxiliary contacts and main circuit bars for fast installation, while offering compatibility with add-on contact blocks and a broad accessories ecosystem. In practice, this translates to reduced installation time, improved reliability, and lower total cost of ownership in demanding automation environments.
Product Information
Extended Description
1SFL617001R7111 ABB: The AF580-30-11-71 is a 3 pole - 1000 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and Main Circuit Bars, controlling motors up to 315 kW / 400 V AC (AC-3) or 500 hp / 480 V UL and switching power circuits up to 800 A (AC-1) or 750 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (250-500 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Data Sheet, Technical Information (Part 2)
Contactors and Overload relays guide
Instructions and Manuals
1SFC380023-en
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Dimension Diagram
53540919-60
Product Net Width
210 mm
Product Net Depth / Length
242 mm
Product Net Height
283 mm
Product Net Weight
13.6 kg
Number of Main Contacts NO
3
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
1
Number of Auxiliary Contacts NC
1
Number of Poles
3P
Rated Operational Voltage
Main Circuit 1000 V
Rated Frequency (f)
Main Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (Ith)
acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 800 A
Rated Operational Current AC-1 (Ie)
(1000 V) 40 °C 800 A | (1000 V) 55 °C 700 A | (1000 V) 70 °C 580 A | (690 V) 40 °C 800 A | (690 V) 55 °C 700 A | (690 V) 70 °C 580 A
Rated Operational Current AC-3 (Ie)
(415 V) 55 °C 580 A | (440 V) 55 °C 580 A | (500 V) 55 °C 580 A | (690 V) 55 °C 500 A | (1000 V) 55 °C 250 A | (380 / 400 V) 55 °C 580 A | (220 / 230 / 240 V) 55 °C 580 A
Rated Operational Current DC-1 (Ie)
(110 V) 1-Pole, 40 °C 800 A | (110 V) 2 Poles in Series, 40 °C 800 A | (220 V) 3 Poles in Series, 40 °C 800 A | (600 V) 3 Poles in Series, 40 °C 800 A | (850 V) 3 Poles in Series, 40 °C 800 A
Rated Operational Current DC-3 (Ie)
(110 V) 1-Pole, 40 °C 800 A | (110 V) 2 Poles in Series, 40 °C 800 A | (220 V) 3 Poles in Series, 40 °C 800 A | (600 V) 3 Poles in Series, 40 °C 800 A
Rated Operational Current DC-5 (Ie)
(110 V) 1-Pole, 40 °C 800 A | (110 V) 2 Poles in Series, 40 °C 800 A | (220 V) 3 Poles in Series, 40 °C 800 A | (600 V) 3 Poles in Series, 40 °C 800 A
Rated Operational Power AC-3 (Pe)
(415 V) 355 kW | (440 V) 355 kW | (500 V) 400 kW | (690 V) 500 kW | (1000 V) 355 kW | (380 / 400 V) 315 kW | (220 / 230 / 240 V) 160 kW
Rated Breaking Capacity AC-3
8 x Ie AC-3
Rated Making Capacity AC-3
10 x Ie AC-3
Short-Circuit Protective Devices
gG Type Fuses 1000 A
Rated Short-time Withstand Current Low Voltage (Icw)
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 6400 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 1300 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 3500 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 7000 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 4500 A
Maximum Breaking Capacity
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 6000 A | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 5000 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V | acc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (Uimp)
Main Circuit 8 kV
Maximum Electrical Switching Frequency
(AC-1) 300 cycles per hour | (AC-2 / AC-4) 60 cycles per hour | (AC-3) 300 cycles per hour
Mechanical Durability
3 million
Maximum Mechanical Switching Frequency
300 cycles per hour
Coil Operating Limits
(acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C)
Rated Control Circuit Voltage (Uc)
50 Hz 250 ... 500 V | 60 Hz 250 ... 500 V | DC Operation 250 ... 500 V
Coil Consumption
Holding at Max. Rated Control Circuit Voltage 50 Hz 12 V·A | Holding at Max. Rated Control Circuit Voltage 60 Hz 12 V·A | Holding at Max. Rated Control Circuit Voltage DC 7.5 V·A | Pull-in at Max. Rated Control Circuit Voltage 50 Hz 985 V·A | Pull-in at Max. Rated Control Circuit Voltage 60 Hz 985 V·A | Pull-in at Max. Rated Control Circuit Voltage DC 910 V·A
Power Loss
at Rated Operating Conditions per Pole 32 W
Operate Time
Between Coil De-energization and NC Contact Closing 50 ... 70 ms | Between Coil De-energization and NO Contact Opening 53 ... 73 ms | Between Coil Energization and NC Contact Opening 45 ... 115 ms | Between Coil Energization and NO Contact Closing 50 ... 120 ms
Connecting Capacity Main Circuit
Bar 52 mm² | Rigid Al-Cable 3x185 mm² | Rigid Cu-Cable 300 mm²
Connecting Capacity Auxiliary Circuit
Flexible with Ferrule 2x 0.75 ... 2.5 mm² | Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm² | Flexible 2x0.75 ... 2.5 mm² | Solid 2 x 1 ... 4 mm² | Stranded 1 x 1 .... 4 mm²
Connecting Capacity
Bar 52 mm² | Rigid Al-Cable 3x185 mm² | Rigid Cu-Cable 300 mm²
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
Tightening Torque
Cable Lug 45 N·m | Main Circuit 45 N·m
Terminal Type
Main Circuit: Bars
Product Name
Block Contactor
Maximum Operating Voltage UL/CSA
Main Circuit 1000 V
General Use Rating UL/CSA
(1000 V AC) 750 A
Horsepower Rating UL/CSA
(200 V AC) Three Phase 200 hp | (208 V AC) Three Phase 200 hp | (220 ... 240 V AC) Three Phase 250 hp | (440 ... 480 V AC) Three Phase 500 hp | (550 ... 600 V AC) Three Phase 600 hp
Full Load Amps Motor Use
(440 ... 480 V AC) Three Phase 590 A | (550 ... 600 V AC) Three Phase 578 A
Ambient Air Temperature
Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °C | Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C | Close to Contactor for Storage -40 ... 70 °C
Maximum Operating Altitude Permissible
Without Derating 3000 m
Resistance to Shock acc. to IEC 60068-2-27
Shock Direction: A 5 g | Shock Direction: B1 5 g | Shock Direction: B2 5 g | Shock Direction: C1 5 g | Shock Direction: C2 5 g
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
End Of Life Disassembling Instructions
End-of-life instruction - AF(S)580(B)-**;AF(S)750(B)-**; AF750N7; AF1250(B)-**
Environmental Product Declaration - EPD
Environmental Product Declaration AF(S)580(F)(N), AF(S)750(F)(N), AF1250 (SE) Contactors
ABS Certificate
ABS Certificate, Contactor, AF400...AF2050 (Sweden)
BV Certificate
BV Certificate, Contactor, AF400 ... AF2850
CB Certificate
SE-82863
CCS Certificate
CCS Certificate, Contactor, AF116 to AF2850 (Sweden)
CQC Certificate
CQC Certificate, AC Contactor, AF580-30-*-*, AF750-30-*-* , AFS580-30-*-*, AFS750-30-*-*, Made in Sweden | CQC Certificate, Contactor, AF580, AF750, Made in China
Declaration of Conformity - CCC
CCC Declaration of Conformity, AC Contactor, AF580-30-*-*, AF750-30-*-* , AFS580-30-*-*, AFS750-30-*-*, Made in Sweden | CCC Declaration of Conformity, Contactor, AF580, AF750, Made in China
Declaration of Conformity - CE
CE Declaration of Conformity - Contactor - AF400...AF2850
Declaration of Conformity - UKCA
UK Declaration of Conformity - Contactors >100A
DNV Certificate
DNV_E-10966
DNV GL Certificate
DNV Certificate, Contactor, AF400...AF2850
EAC Certificate
9AKK107046A8618
GL Certificate
GL_42988-02HH
LOVAG Certificate
SE-0146175
LR Certificate
Lloyds register Certificate, Contactor, AF400...AF2850
PRS Certificate
PRS Certificate - AF116...AF1650
RINA Certificate
RINA Certificate, AF95, AF110, AF145, AF185, AF210, AF260, AF300, AF400, AF460, AF580, AF750, AF1250, AF1350, AF1650, AF2050, AF2650, AF116, AF140, AF146, AF190, AF205, AF265, AF305, AF370
RMRS Certificate
9AKK107045A6978
UL Certificate
cULus Certificate, Contactor, AF580, AF750, AFS580, AFS750
UL Listing Card
UL_E36588
Package Level 1 Units
box 1 piece
Package Level 1 Width
280 mm
Package Level 1 Depth / Length
375 mm
Package Level 1 Height
310 mm
Package Level 1 Gross Weight
15 kg
Package Level 1 EAN
7320500250228
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4758 >> Iec Contactors
E-Number (Finland)
3709252
E-Number (Norway)
4115297
E-Number (Sweden)
3228355
Feature → Business Impact → Application: The AF580-30-11-71 uses AF technology to tolerate wide control voltage variations (250-500 V, 50/60 Hz, and DC), reducing nuisance tripping in unstable networks and lowering energy consumption in control circuits. This directly improves system uptime and lowers energy waste in panel assemblies; ideal for conveyors, pumps, and fans in process lines. Feature → Business Impact → Application: 3-pole main contacts plus integrated auxiliary contacts (NO/NC) enable compact control of 3-phase motors with safe, centralized signaling; this simplifies wiring and diagnostics while supporting space-constrained panels in packaging and material handling. Feature → Business Impact → Application: Main circuit rated up to 1000 V and AC-3 current ratings up to 580 A (with higher AC-1 capabilities) provide a robust foundation for motor starting and stop cycles, reducing wear on contact surfaces and extending equipment life in heavy-duty machine tools and HVAC systems. Feature → Business Impact → Application: Pre-mounted main circuit bars and accessory-ready architecture streamline installation and field upgrades, delivering faster project timelines and predictable performance in OEM and brownfield upgrades. Feature → Business Impact → Application: Built-in surge protection and wide operating temperature tolerance support safer operation in environments with electrical noise, enabling compliant motor control in food processing, metals, and pulp & paper industries. Feature → Business Impact → Application: Mechanical durability and standardized tightening torques (53–55 N·m range for main circuits) reduce rework during maintenance, improving serviceability and long-term ROI for OEMs and end users.
