ABB 1SFL617001R9105 Block Contactor - AF Technology
Part Number: 1SFL617001R9105
Quick Summary
ABB 1SFL617001R9105 Contactor provides robust motor control for 3-phase drives in industrial equipment. Panel designers face voltage fluctuations that cause nuisance tripping and energy waste, often forcing conservative sizing. This AF-based contactor is CE and UL/CSA certified, with UKCA marking where required, plus RoHS and REACH compliance to streamline procurement. Its wide control voltage range, integrated surge protection, and compact footprint support scalable automation while lowering installation time and energy use.
Product Information
Extended Description

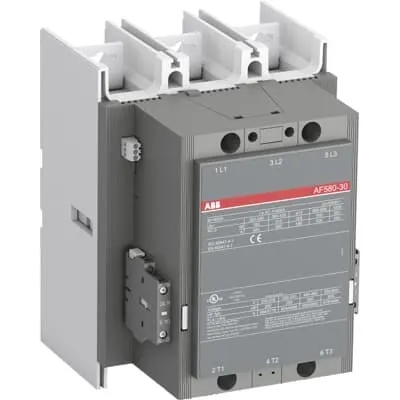

1SFL617001R9105 ABB: The AF580-30-22 100-250V is a 3 pole - 1000 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and Main Circuit Bars, controlling motors up to 315 kW / 400 V AC (AC-3) or 500 hp / 480 V UL and switching power circuits up to 800 A (AC-1) or 750 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (220-240 V 50/60 Hz), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Data Sheet, Technical Information (Part 2)
Contactors and Overload relays guide
Instructions and Manuals
1SFC380023-en
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
210 mm
Product Net Depth / Length
242 mm
Product Net Height
283 mm
Product Net Weight
13.6 kg
Number of Main Contacts NO
3
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
2
Number of Auxiliary Contacts NC
2
Number of Poles
3P
Rated Operational Voltage
Main Circuit 1000 V
Rated Operational Current AC-1 (Ie)
(1000 V) 40 °C 800 A | (1000 V) 55 °C 700 A | (1000 V) 70 °C 580 A | (690 V) 40 °C 800 A | (690 V) 55 °C 700 A | (690 V) 70 °C 580 A
Rated Operational Current AC-3 (Ie)
(415 V) 55 °C 580 A | (440 V) 55 °C 580 A | (500 V) 55 °C 580 A | (690 V) 55 °C 500 A | (1000 V) 55 °C 250 A | (380 / 400 V) 55 °C 580 A | (220 / 230 / 240 V) 55 °C 580 A
Rated Operational Power AC-3 (Pe)
(415 V) 355 kW | (440 V) 355 kW | (500 V) 400 kW | (690 V) 500 kW | (1000 V) 355 kW | (380 / 400 V) 315 kW | (220 / 230 / 240 V) 160 kW
Rated Short-time Withstand Current Low Voltage (Icw)
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 6400 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 1300 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 3500 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 7000 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 4500 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V | acc. to UL/CSA 600 V
Mechanical Durability
3 million
Maximum Mechanical Switching Frequency
300 cycles per hour
Rated Control Circuit Voltage (Uc)
50 Hz 100 ... 250 V
Coil Consumption
Holding at Max. Rated Control Circuit Voltage 50 Hz 12 V·A | Holding at Max. Rated Control Circuit Voltage 60 Hz 12 V·A | Pull-in at Max. Rated Control Circuit Voltage 50 Hz 880 V·A | Pull-in at Max. Rated Control Circuit Voltage 60 Hz 880 V·A | Pull-in at Max. Rated Control Circuit Voltage DC 880 V·A
Power Loss
at Rated Operating Conditions per Pole 32 W
Terminal Type
Main Circuit: Bars
Product Name
Block Contactor
Maximum Operating Voltage UL/CSA
Main Circuit 1000 V
General Use Rating UL/CSA
(1000 V AC) 750 A
Horsepower Rating UL/CSA
(200 ... 208 V AC) Three Phase 200 Hp | (220 ... 240 V AC) Three Phase 250 Hp | (440 ... 480 V AC) Three Phase 500 Hp | (550 ... 600 V AC) Three Phase 600 Hp
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
End Of Life Disassembling Instructions
End-of-life instruction - AF(S)580(B)-**;AF(S)750(B)-**; AF750N7; AF1250(B)-**
Environmental Product Declaration - EPD
Environmental Product Declaration AF(S)580(F)(N), AF(S)750(F)(N), AF1250 (SE) Contactors
ABS Certificate
ABS Certificate, Contactor, AF400...AF2050 (Sweden)
BV Certificate
BV Certificate, Contactor, AF400 ... AF2850
CB Certificate
SE-82863
CCS Certificate
CCS Certificate, Contactor, AF116 to AF2850 (Sweden)
CQC Certificate
CQC Certificate, AC Contactor, AF580-30-*-*, AF750-30-*-* , AFS580-30-*-*, AFS750-30-*-*, Made in Sweden | CQC Certificate, Contactor, AF580, AF750, Made in China
Declaration of Conformity - CCC
CCC Declaration of Conformity, AC Contactor, AF580-30-*-*, AF750-30-*-* , AFS580-30-*-*, AFS750-30-*-*, Made in Sweden | CCC Declaration of Conformity, Contactor, AF580, AF750, Made in China
Declaration of Conformity - CE
CE Declaration of Conformity - Contactor - AF400...AF2850
Declaration of Conformity - UKCA
UK Declaration of Conformity - Contactors >100A
DNV GL Certificate
DNV Certificate, Contactor, AF400...AF2850
EAC Certificate
9AKK107046A8618
LR Certificate
Lloyds register Certificate, Contactor, AF400...AF2850
PRS Certificate
PRS Certificate - AF116...AF1650
RINA Certificate
RINA Certificate, AF95, AF110, AF145, AF185, AF210, AF260, AF300, AF400, AF460, AF580, AF750, AF1250, AF1350, AF1650, AF2050, AF2650, AF116, AF140, AF146, AF190, AF205, AF265, AF305, AF370
RMRS Certificate
9AKK107045A6978
UL Certificate
cULus Certificate, Contactor, AF580, AF750, AFS580, AFS750
Package Level 1 Units
box 1 piece
Package Level 1 Width
280 mm
Package Level 1 Depth / Length
375 mm
Package Level 1 Height
310 mm
Package Level 1 Gross Weight
15 kg
Package Level 1 EAN
7320500362426
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4755 >> Contactors
