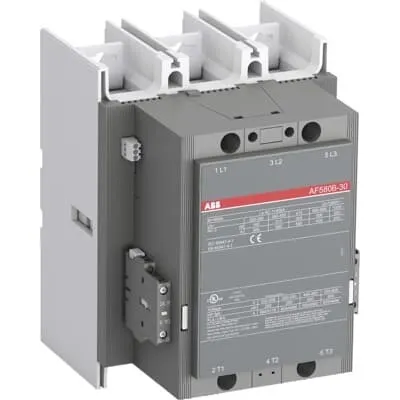

ABB AF580B-30-22-71 Contactor - CE & UL Certified
Part Number: 1SFL617063R7122
Quick Summary
AF580B-30-22-71 Contactor is a 3-pole motor controller for AC-3 drives up to 315 kW at 400 V. In modern panels, voltage fluctuations and transients can cause nuisance tripping and wasted energy; this device is designed to tolerate wide control voltage variations and maintain reliable operation. It carries CE, UL and UKCA certifications, plus RoHS compliance, supporting global deployments in manufacturing, process, and infrastructure. With AF technology, it reduces panel energy consumption and improves control stability, while the pre-mounted auxiliary contacts and modular accessories simplify wiring and future expansion. For engineers and procurement teams, the compact footprint, robust wiring options, and documented compatibility translate into faster builds, lower lifecycle costs, and easier serviceability.
Product Information
Extended Description
1SFL617063R7122 ABB: The AF580B-30-22-71 is a 3 pole - 1000 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and standard ferrules, controlling motors up to 315 kW / 400 V AC (AC-3) or 500 hp / 480 V UL and switching power circuits up to 800 A (AC-1) or 750 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (250-500 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
1SBC100192C0206
Data Sheet, Technical Information (Part 2)
Contactors and Overload relays guide
Instructions and Manuals
1SFC380023-en
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Dimension Diagram
53540919-60
Product Net Width
210 mm
Product Net Depth / Length
242 mm
Product Net Height
283 mm
Product Net Weight
13.6 kg
Rated Control Circuit Voltage (Uc)
50 Hz 250 ... 500 V
Coil Consumption
Holding at Max. Rated Control Circuit Voltage 50 Hz 12 V·A | Pull-in at Max. Rated Control Circuit Voltage 50 Hz 910 V·A
Connecting Capacity Main Circuit
Bar 52 mm² | Rigid Al-Cable 3x185 mm² | Rigid Cu-Cable 300 mm²
Connecting Capacity Auxiliary Circuit
Flexible with Ferrule 2x 0.75 ... 2.5 mm² | Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm² | Flexible 1x 0.75 ... 2.5 mm² | Solid 2x 1 ... 4 mm² | Stranded 2x 1 ... 4 mm²
Connecting Capacity
Bar 52 mm² | Rigid Al-Cable 300 mm² | Rigid Cu-Cable 300 mm²
Recommended Screw Driver
Control Circuit M3.5 | Control Circuit Pozidriv 2
Tightening Torque
Cable Lug 45 N·m | Main Circuit 45 N·m
Terminal Type
Main Circuit: Bars
Product Name
Block Contactor
Ambient Air Temperature
Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °C | Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C | Close to Contactor for Storage -40 ... 70 °C
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
End Of Life Disassembling Instructions
End-of-life instruction - AF(S)580(B)-**;AF(S)750(B)-**; AF750N7; AF1250(B)-**
Environmental Product Declaration - EPD
Environmental Product Declaration AF(S)580(F)(N), AF(S)750(F)(N), AF1250 (SE) Contactors
ABS Certificate
ABS Certificate, Contactor, AF400...AF2050 (Sweden)
BV Certificate
BV Certificate, Contactor, AF400 ... AF2850
CB Certificate
SE-82863
CCS Certificate
CCS Certificate, Contactor, AF116 to AF2850 (Sweden)
CQC Certificate
CQC Certificate, AC Contactor, AF580-30-*-*, AF750-30-*-* , AFS580-30-*-*, AFS750-30-*-*, Made in Sweden | CQC Certificate, Contactor, AF580, AF750, Made in China
Declaration of Conformity - CCC
CCC Certificate, AC Contactor, AF580-30-*-*, AF750-30-*-*, AFS580-30-*-*, AFS750-30-*-*, AF580B-30-*-*, AF750B-30-*-*, Made in Sweden
Declaration of Conformity - CE
CE Declaration of Conformity - Contactor - AF400B...AF2850B
Declaration of Conformity - UKCA
UK Declaration of Conformity - Contactors >100A
DNV Certificate
DNV_E-10966
DNV GL Certificate
DNV Certificate, Contactor, AF400...AF2850
EAC Certificate
9AKK107046A8618
GL Certificate
GL_42988-02HH
LR Certificate
Lloyds register Certificate, Contactor, AF400...AF2850
RINA Certificate
RINA Certificate, AF95, AF110, AF145, AF185, AF210, AF260, AF300, AF400, AF460, AF580, AF750, AF1250, AF1350, AF1650, AF2050, AF2650, AF116, AF140, AF146, AF190, AF205, AF265, AF305, AF370
RMRS Certificate
9AKK107045A6978
UL Certificate
cULus Certificate, Contactor, AF580, AF750, AFS580, AFS750
Package Level 1 Units
box 1 piece
Package Level 1 Width
280 mm
Package Level 1 Depth / Length
375 mm
Package Level 1 Height
310 mm
Package Level 1 Gross Weight
15 kg
Package Level 1 EAN
7320500310625
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
A three-pole block contactor with pre-mounted auxiliary contacts simplifies wiring and reduces installation time, delivering a streamlined panel build and improved accessibility for maintenance. This translates to lower labor costs and faster commissioning on high-demand lines such as conveyors and pumps, while maintaining reliable motor control in harsh factory environments. The coil accepts a wide control voltage range of 250-500 V AC and DC, enabling consistent operation despite network fluctuations and helping to minimize coil stress and replacement cycles in facilities with voltage variability. Built-in surge protection further protects the coil and main contacts from transient spikes, reducing unwanted trips and extending service life in applications with frequent switching. The device supports robust connection options—main circuit bars up to 52 mm², rigid Al-Cu cables up to 300 mm²—facilitating high-current motor control with a clean, secure installation and less wiring complexity. With dimensions of 210 mm width, 242 mm depth, and 283 mm height, and a weight around 13.6 kg, the AF580B-30-22-71 is compact enough for dense control panels while still delivering heavy-duty performance. Compatibility with add-on auxiliary contact blocks and a wide range of ABB EcoSolutions accessories provides future-proofing, enabling scalable automation installations and simplified retrofits in evolving plants.
Get a Quick Quote for a ABB 1SFL617063R7122
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFL617063R7122?
Enquire Now
FAQs
Install using main circuit bars up to 52 mm², secure with a tightening torque of 45 N·m for cable lugs, and ensure proper seating of the contactor in the panel. Use the recommended control circuit tools (M3.5 and Pozidriv 2) to mount auxiliary blocks if added.
The coil is designed for a wide control voltage range of 250 to 500 V at 50/60 Hz, and it also accepts 250-500 V DC, enabling robust operation across variable networks.
Yes, it operates from -25 °C to 50 °C when fitted with a thermal overload relay and up to -40 °C to 70 °C for storage or near-panel conditions; ensure proper enclosure protection and ventilation to maintain reliability.
The AF580B-30-22-71 carries CE, UL, and UKCA certifications, along with RoHS and REACH compliance, plus multiple third-party approvals such as CQC, GL, and DNV in various regions.
The device measures 210 mm wide, 242 mm deep, and 283 mm high, with a net weight of 13.6 kg, making it suitable for medium to compact control panels in industrial environments.
