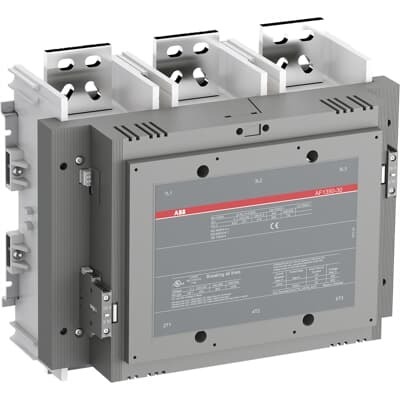

ABB 1SFL657001R7022 Contactor - AF1350 surge protection
Part Number: 1SFL657001R7022
Quick Summary
ABB AF1350 contactor is a high-capacity switch for motor control in industrial automation applications such as conveyors and pumps. In real-world panels, fluctuating control voltages and unstable networks often cause nuisance trips or chatter; this model tolerates a wide control voltage range and provides reliable operation across 100-250 V AC/50/60 Hz and DC, reducing setup time and field adjustments. The AF1350 family emphasizes robustness with built-in surge protection and a compact, block-type design that simplifies wiring and maintenance. The design supports easy expansion with add-on auxiliary contact blocks, while protecting downstream devices and enabling scalable control. For technicians and procurement teams, this translates to lower lifecycle costs and faster project commissioning.
Product Information
Extended Description
1SFL657001R7022 ABB: The AF1350-30-22-70 is a 3 pole - 1000 V IEC or 1000 V UL contactor with pre-mounted auxiliary contacts and Main Circuit Bars, controlling motors up to 475 kW / 400 V AC (AC-3) or 800 hp / 480 V UL and switching power circuits up to 1350 A (AC-1) or 1350 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
