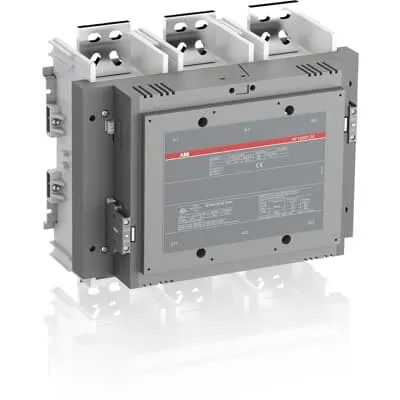

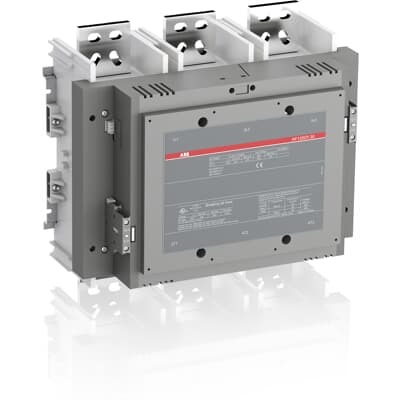

ABB AF1350T-30-11 Contactor - CE/UL Certified
Part Number: 1SFL657001R9101
Quick Summary
The ABB AF1350T-30-11 Contactor is a high-capacity 3-pole motor switch for industrial motor control. When control voltage fluctuates or surge protection is lacking, panel reliability suffers and downtime increases. CE, UL/CSA and UKCA certifications underpin cross-market compliance, while built-in surge protection and IP-rated components support safe, scalable installations. By leveraging the AF technology and compatibility with add-on auxiliary contact blocks, this device enables energy-efficient, reliable motor control in demanding industrial environments and OEM integrations.
Product Information
Extended Description
1SFL657001R9101 ABB: The AF1350T-30-22 230-240V 50/60Hz is a 3 pole - 1000 V IEC or 1000 V UL contactor with pre-mounted auxiliary contacts and Main Circuit Bars, controlling motors up to 475 kW / 400 V AC (AC-3) or 800 hp / 480 V UL and switching power circuits up to 1350 A (AC-1) or 1350 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (230-240 V 50/60 Hz), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Data Sheet, Technical Information (Part 2)
Contactors and Overload relays guide
Instructions and Manuals
Operating instruction, Contactors AF1350, AF1650,AF2050
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Dimension Diagram
Dimension Drawing, Contactor, AF1350, AF1650
Product Net Width
438 mm
Product Net Depth / Length
244 mm
Product Net Height
392 mm
Product Net Weight
32 kg
Number of Main Contacts NO
3
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
2
Number of Auxiliary Contacts NC
2
Number of Poles
3P
Rated Operational Voltage
Main Circuit 1000 V
Rated Frequency (f)
Main Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (Ith)
acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 1350 A
Rated Operational Current AC-1 (Ie)
(1000 V) 40 °C 1350 A | (1000 V) 55 °C 1150 A | (1000 V) 70 °C 1000 A | (690 V) 40 °C 1350 A | (690 V) 55 °C 1150 A | (690 V) 70 °C 1000 A
Rated Operational Current AC-3 (Ie)
(220 / 230 / 240 V) 55 °C 860 A
Rated Operational Current DC-1 (Ie)
(220 V) 3 Poles in Series, 40 °C 1350 A | (600 V) 3 Poles in Series, 40 °C 1350 A | (850 V) 3 Poles in Series, 40 °C 1350 A
Rated Operational Current DC-3 (Ie)
(220 V) 3 Poles in Series, 40 °C 1350 A | (600 V) 3 Poles in Series, 40 °C 1350 A | (850 V) 3 Poles in Series, 40 °C 1350 A
Rated Operational Current DC-5 (Ie)
(220 V) 3 Poles in Series, 40 °C 1350 A | (600 V) 3 Poles in Series, 40 °C 1350 A | (850 V) 3 Poles in Series, 40 °C 1350 A
Rated Operational Power AC-3 (Pe)
(415 V) 500 kW | (440 V) 560 kW | (500 V) 560 kW | (690 V) 800 kW | (1000 V) 560 kW | (380 / 400 V) 475 kW | (220 / 230 / 240 V) 257 kW
Rated Breaking Capacity AC-3
8 x Ie AC-3
Rated Making Capacity AC-3
10 x Ie AC-3
Rated Short-time Withstand Current Low Voltage (Icw)
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 8000 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 1600 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 4500 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 10000 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 6000 A
Maximum Breaking Capacity
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 10000 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V | acc. to UL/CSA 1000 V
Rated Impulse Withstand Voltage (Uimp)
Main Circuit 8 kV
Maximum Electrical Switching Frequency
(AC-1) 60 cycles per hour | (AC-2 / AC-4) 60 cycles per hour | (AC-3) 60 cycles per hour
Mechanical Durability
0.5 million
Maximum Mechanical Switching Frequency
300 cycles per hour
Coil Operating Limits
(acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C)
Rated Control Circuit Voltage (Uc)
50 Hz 230 ... 240 V | 60 Hz 230 ... 240 V | DC Operation 230 ... 240 V
Coil Consumption
Holding at Max. Rated Control Circuit Voltage 50 Hz 48 V·A | Holding at Max. Rated Control Circuit Voltage 60 Hz 48 V·A | Holding at Max. Rated Control Circuit Voltage DC 20.5 V·A | Pull-in at Max. Rated Control Circuit Voltage 50 Hz 2450 V·A | Pull-in at Max. Rated Control Circuit Voltage 60 Hz 2450 V·A | Pull-in at Max. Rated Control Circuit Voltage DC 2290 V·A
Power Loss
at Rated Operating Conditions per Pole 80 W
Operate Time
Between Coil De-energization and NC Contact Closing 35 ... 55 ms | Between Coil De-energization and NO Contact Opening 35 ... 55 ms | Between Coil Energization and NC Contact Opening 50 ... 80 ms | Between Coil Energization and NO Contact Closing 50 ... 80 ms
Connecting Capacity Main Circuit
Bar 100 mm²
Connecting Capacity Auxiliary Circuit
Flexible with Ferrule 2x 0.75 ... 2.5 mm² | Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm² | Flexible 2x0.75 ... 2.5 mm² | Solid 2 x 1 ... 4 mm² | Stranded 2 x 1 .... 4 mm²
Connecting Capacity
Bar 100 mm²
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
Tightening Torque
Cable Lug 45 N·m
Terminal Type
Main Circuit: Bars
Product Name
Block Contactor
Maximum Operating Voltage UL/CSA
Main Circuit 600 V
General Use Rating UL/CSA
(1000 V AC) 1350 A | (600 V AC) 1350 A
Horsepower Rating UL/CSA
(220 ... 240 V AC) Three Phase 400 hp | (440 ... 480 V AC) Three Phase 800 hp | (550 ... 600 V AC) Three Phase 1000 hp
Full Load Amps Motor Use
(440 ... 480 V AC) Three Phase 954 A | (550 ... 600 V AC) Three Phase 944 A
Ambient Air Temperature
Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °C | Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C | Close to Contactor for Storage -40 ... 70 °C
Maximum Operating Altitude Permissible
Without Derating 3000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
End Of Life Disassembling Instructions
End-of-life instruction - AF1350(B)(T), AF1650(B)(T), AF1650N8, AF2050(B)(T), AF2650(B)(T), AF2850(B)(T)
Environmental Product Declaration - EPD
Environmental product declaration AF1350(T), AF1650(T)(N), AF2050(T), AF2650(T), AF2850 (SE)
ABS Certificate
ABS Certificate, Contactor, AF400...AF2050 (Sweden)
BV Certificate
BV Certificate, Contactor, AF400 ... AF2850
CB Certificate
SEMKO_SE-74013
CCS Certificate
CCS Certificate, Contactor, AF116 to AF2850 (Sweden)
CQC Certificate
CQC Certificate, AC Contactor, AF1350-30-*-*, AF1650-30-*-*, AF2050-30-*-*, AF1350T-30-*-*, AF1650T-30-*-*, AF2050T-30-*-*, Made in Sweden
Declaration of Conformity - CCC
CCC Declaration of Conformity, AC Contactor, AF1350-30-*-*, AF1650-30-*-*, AF2050-30-*-*, AF1350T-30-*-*, AF1650T-30-*-*, AF2050T-30-*-*, Made in Sweden
Declaration of Conformity - CE
CE Declaration of Conformity - Contactor - AF400...AF2850
Declaration of Conformity - UKCA
UK Declaration of Conformity - Contactors >100A
DNV GL Certificate
DNV Certificate, Contactor, AF400...AF2850
EAC Certificate
9AKK107046A8618
GL Certificate
GL_20263-04HH
LOVAG Certificate
SE-202726
LR Certificate
Lloyds register Certificate, Contactor, AF400...AF2850
PRS Certificate
PRS Certificate - AF116...AF1650
RINA Certificate
RINA Certificate, AF95, AF110, AF145, AF185, AF210, AF260, AF300, AF400, AF460, AF580, AF750, AF1250, AF1350, AF1650, AF2050, AF2650, AF116, AF140, AF146, AF190, AF205, AF265, AF305, AF370
RMRS Certificate
9AKK107045A6978
UL Certificate
cULus Certificate, Contactor, AF1350, AF1650, AF2050 (NLDX)
Package Level 1 Units
box 1 piece
Package Level 1 Width
555 mm
Package Level 1 Depth / Length
365 mm
Package Level 1 Height
500 mm
Package Level 1 Gross Weight
34 kg
Package Level 1 EAN
7320500382073
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4755 >> Contactors
Feature is a wide control voltage range of 230-240 V at 50/60 Hz, delivering a business impact of reliable operation across voltage variations and reduced panel energy consumption, enabling smoother machine startup in variable networks with a direct application in factory automation. Feature three pole main contacts rated to 1000 V insulation with 2NO/2NC auxiliary contacts and main circuit bars 100 mm², which yields a business impact of high-current switching up to 1350 A AC-1 and up to 860 A AC-3 at 240 V, applicable to heavy-duty motor protection and control in plastic, packaging, or material handling lines. Feature the AF1350 family’s block-type design and ease of extension with add-on auxiliary blocks, delivering a business impact of scalable control panels and simplified retrofits for aging installations. Feature compact AF technology with IP20 coil terminals, duty cycle optimization, and ease of installation, reducing panel footprint and enabling faster commissioning in machine builders. Feature mechanical durability rated at 0.5 million operations and a rated breaking capacity of high short-circuit withstand, offering a business impact of reduced maintenance and longer service life for critical drives. Feature broad environmental tolerance including -25 to 50 °C with thermal overload options and a storage range to 70 °C, plus RoHS/REACH compliance, ensuring compliance and reliability in global deployments.
Get a Quick Quote for a ABB 1SFL657001R9101
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFL657001R9101?
Enquire Now
FAQs
The AF1350T-30-11 is a 3-pole block contactor with main contacts rated for up to 1000 V insulation and 50/60 Hz operation. It provides AC-1 ratings up to 1350 A and AC-3 ratings up to 860 A at 240 V (and similar scales at other voltages). It also features a rated impulse withstand voltage of 8 kV and a coil controlled at 230-240 V. Auxiliary contacts include 2 NO and 2 NC, and it supports main circuit bus connections of 100 mm².
Yes. The AF1350T-30-11 supports heavy-duty motor switching with a mechanical durability specification of 0.5 million cycles and a high breaking capacity. Its AC-3 rating at 240 V enables reliable starting and stopping of motors with substantial inrush, making it suitable for high-inertia applications while maintaining safe switching performance.
The AF1350T-30-11 carries multiple industry certifications, including CE, UL/CSA, and UKCA, along with declarations such as CE for Contactor products and UL listings for general use. These certifications support compliance across markets, facilitate regulatory approvals, and help ensure safe operation in diverse environments including automation facilities and end-user plants.
Plan for main circuit connections with 100 mm² bars and auxiliary connections suitable for 2x 0.75–2.5 mm² flexible conductors or 2x1–4 mm² solid/stranded conductors. Coil terminals are IP20 protected, tightening torque is 45 N·m for cables, and the footprint is 438 mm wide by 244 mm deep by 392 mm high with a weight around 32 kg. Dimension drawings and CAD files are available, facilitating panel integration and retrofits.
The AF1350T-30-11 delivers improved uptime through surge protection, wide control voltage tolerance, and robust mechanical life, reducing maintenance costs. It also supports scalable panel design with add-on auxiliary contact blocks, enabling future expansion without replacing the core device. ABB EcoSolutions documentation provides end-of-life and environmental declarations, aiding longer-term procurement and compliance planning.
