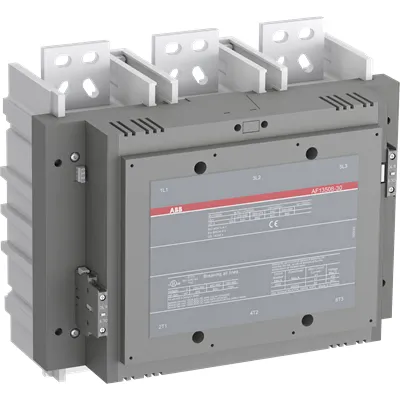

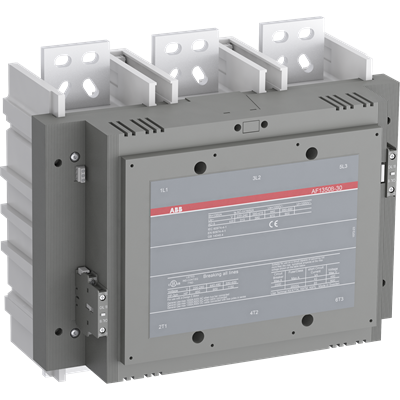

ABB AF1350B-30-22-70 Contactor - CE & UL Certified
Part Number: 1SFL657063R7022
Quick Summary
AF1350B-30-22-70 Contactor is a 3-pole motor control device for industrial AC-3 applications. Designed to respond to wide control voltage variations, it helps maintain reliable motor start-up and reduces panel energy waste. It carries CE, UL and UKCA certifications, reflecting robust compliance across European and North American markets. With ABB AF technology, it supports easy integration with add-on auxiliary contact blocks and a broad accessories portfolio, delivering scalable automation in harsh production environments. This combination translates to lower total cost of ownership and improved line uptime for your automation panels.
Product Information
Extended Description
1SFL657063R7022 ABB: The AF1350B-30-22-70 is a 3 pole - 1000 V IEC or 1000 V UL contactor with pre-mounted auxiliary contacts and standard ferrules, controlling motors up to 475 kW / 400 V AC (AC-3) or 800 hp / 480 V UL and switching power circuits up to 1350 A (AC-1) or 1350 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
1SBC100192C0206
Data Sheet, Technical Information (Part 2)
Contactors and Overload relays guide
Instructions and Manuals
Operating instruction, Contactors AF1350, AF1650,AF2050
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Dimension Diagram
Dimension Drawing, Contactor, AF1350, AF1650
Product Net Width
438 mm
Product Net Depth / Length
244 mm
Product Net Height
392 mm
Product Net Weight
32 kg
Rated Control Circuit Voltage (Uc)
50 Hz 100...250 V
Coil Consumption
Holding at Max. Rated Control Circuit Voltage 50 Hz 48 V·A | Pull-in at Max. Rated Control Circuit Voltage 50 Hz 2450 V·A
Connecting Capacity Main Circuit
Bar 100 mm²
Connecting Capacity Auxiliary Circuit
Flexible with Ferrule 2x 0.75 ... 2.5 mm² | Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm² | Flexible 1x 0.75 ... 2.5 mm² | Solid 2x 1 ... 4 mm² | Stranded 2x 1 ... 4 mm²
Connecting Capacity
Bar 100 mm²
Recommended Screw Driver
Control Circuit M3.5 | Control Circuit Pozidriv 2
Tightening Torque
Cable Lug 45 N·m
Terminal Type
Main Circuit: Bars
Product Name
Block Contactor
Ambient Air Temperature
Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °C | Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C | Close to Contactor for Storage -40 ... 70 °C
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
End Of Life Disassembling Instructions
End-of-life instruction - AF1350(B)(T), AF1650(B)(T), AF1650N8, AF2050(B)(T), AF2650(B)(T), AF2850(B)(T)
ABS Certificate
ABS Certificate, Contactor, AF400...AF2050 (Sweden)
BV Certificate
BV Certificate, Contactor, AF400 ... AF2850
CB Certificate
SEMKO_SE-74013
CCS Certificate
CCS Certificate, Contactor, AF116 to AF2850 (Sweden)
CQC Certificate
CQC Certificate, AC Contactor, AF1350-30-*-*, AF1650-30-*-*, AF2050-30-*-*, AF1350T-30-*-*, AF1650T-30-*-*, AF2050T-30-*-*, Made in Sweden | CQC Certificate, Contactor, AF1350, AF1650, AF2050, Made in China
Declaration of Conformity - CCC
CCC Certificate, AC Contactor, AF1350-30-*-*, AF1650-30-*-*, AF2050-30-*-*, AF1350T-30-*-*, AF1650T-30-*-*, AF2050T-30-*-*, AF1350B-30-*-*, AF1650B-30-*-*, AF2050B-30-*-*, Made in Sweden
Declaration of Conformity - CE
CE Declaration of Conformity - Contactor - AF400B...AF2850B
Declaration of Conformity - UKCA
UK Declaration of Conformity - Contactors >100A
DNV GL Certificate
DNV Certificate, Contactor, AF400...AF2850
EAC Certificate
9AKK107046A8618
GL Certificate
GL_20263-04HH
LR Certificate
Lloyds register Certificate, Contactor, AF400...AF2850
RINA Certificate
RINA Certificate, AF95, AF110, AF145, AF185, AF210, AF260, AF300, AF400, AF460, AF580, AF750, AF1250, AF1350, AF1650, AF2050, AF2650, AF116, AF140, AF146, AF190, AF205, AF265, AF305, AF370
RMRS Certificate
9AKK107045A6978
UL Certificate
cULus Certificate, Contactor, AF1350, AF1650, AF2050 (NLDX) | cULus Certificate, Contactor, AF1350, AF1650, AF2050 (NRNT)
Package Level 1 Units
box 1 piece
Package Level 1 Width
555 mm
Package Level 1 Depth / Length
365 mm
Package Level 1 Height
500 mm
Package Level 1 Gross Weight
34 kg
Package Level 1 EAN
7320500250150
Package Level 2 Units
1 piece
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
Paragraph 1: Feature wide control voltage range (100-250 V AC/DC) and AF technology; Business Impact: coil tolerates large control voltage variations, reducing nuisance trips and panel energy waste; Application: drives and heavy machinery in automation lines. Paragraph 2: Feature built-in surge protection and compact block design; Business Impact: improves reliability in networks with fluctuations and saves panel space; Application: control cabinets in packaging and process industries. Paragraph 3: Feature 3-pole main circuit with Bar connections up to 100 mm2 and 1350 A; Business Impact: supports large motor loads up to 475 kW (AC-3) with high short-circuit tolerance; Application: industrial drives, conveyors, and pumps. Paragraph 4: Feature pre-mounted auxiliary contacts and extendable accessory range; Business Impact: simplifies installation and future expansion, lowering commissioning time; Application: interlocking, logic circuits, and control logic. Paragraph 5: Feature wide mounting compatibility and easy maintenance; Business Impact: reduces downtime in retrofits and improves lifecycle cost; Application: multi-site automation and legacy-line upgrades.
Get a Quick Quote for a ABB 1SFL657063R7022
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFL657063R7022?
Enquire Now
FAQs
Mount the AF1350B-30-22-70 using its 3-pole block design with bar terminals for the main circuit and flexible or ferrule wiring for auxiliaries. Ensure panel space accommodates the 438 mm width and allow room for optional auxiliary blocks. Use correct torque on lugs and follow IEC guidelines for safe operation and clearance.
The coil accepts 100-250 V at 50/60 Hz AC or DC, enabling broad compatibility with control systems. Coil consumption is 48 VA holding at max rated voltage and 2450 VA pull-in at max rated voltage. This supports stable operation despite voltage fluctuations and helps minimize control panel energy usage.
Yes. With a main-circuit rating up to 1350 A (AC-1) and up to 475 kW at 400 V (AC-3), the AF1350B-30-22-70 is well-suited for conveyors, pumps, and processing equipment. Its surge protection and accessory-expandable design make it resilient in demanding manufacturing environments with high start-up currents.
The AF1350B-30-22-70 features CE and UL certifications, along with UKCA and other regional declarations in applicable variants. This broad certification footprint supports regulatory compliance across Europe and North America, streamlining multi-site procurement and field servicing.
Built-in surge protection, a compact block design, and pre-mounted auxiliary contacts simplify maintenance and reduce downtime during upgrades. Compatibility with add-on contact blocks enables scalable automation with lower total cost of ownership, while standardized torque and terminal configurations support faster commissioning and ongoing servicing.
