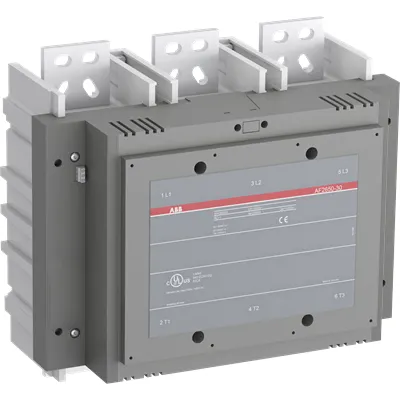

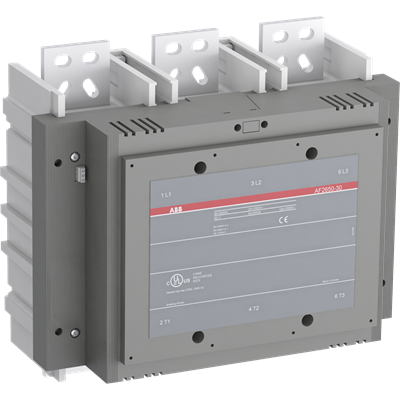

ABB 1SFL667001R7000 Contactor - UL 2700 A
Part Number: 1SFL667001R7000
Quick Summary
The ABB 1SFL667001R7000 Contactor is a high-current, three-pole device designed for heavy motor protection and power switching in demanding industrial installations. Operators face voltage fluctuations that cause nuisance trips and wasted energy; this AF technology contactor handles a wide control-voltage range (100-250 V AC and DC), stabilizing control signals and reducing panel consumption. The product carries UL/CSA general-use approval up to 2700 A, CE marking, and UKCA/CCC compliance where applicable, plus RoHS and REACH declarations for global deployment. These qualifications, combined with integrated surge protection, support reliable performance in unstable networks, while the compact block design simplifies cabinet layouts and future expansion. Secondary keywords: motor protection, electrical protection, and high-current switching for robust industrial applications.
Product Information
Extended Description
1SFL667001R7000 ABB: The AF2650-30-00-70 is a 3 pole - 1000 V IEC or 1000 V UL contactor with Main Circuit Bars, switching power circuits up to 2650 A (AC-1) or 2700 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Data Sheet, Technical Information (Part 2)
Contactors and Overload relays guide
Instructions and Manuals
N/A
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
438 mm
Product Net Depth / Length
244 mm
Product Net Height
422 mm
Product Net Weight
43 kg
Number of Main Contacts NO
3
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
0
Number of Auxiliary Contacts NC
0
Number of Poles
3P
Rated Operational Voltage
Main Circuit 1000 V
Rated Operational Current AC-1 (Ie)
(1000 V) 40 °C 2650 A | (1000 V) 55 °C 2350 A | (1000 V) 70 °C 2120 A | (690 V) 40 °C 2650 A | (690 V) 55 °C 2350 A | (690 V) 70 °C 2120 A
Rated Operational Current DC-1 (Ie)
(110 V) 1-Pole, 70 °C 2650 A | (110 V) 2 Poles in Series, 70 °C 2650 A | (110 V) 3 Poles in Series, 70 °C 2650 A | (220 V) 3 Poles in Series, 40 °C 2650 A | (220 V) 3 Poles in Series, 70 °C 2650 A | (260 V) 3 Poles in Series, 70 °C 2650 A | (300 V) 3 Poles in Series, 70 °C 2650 A | (340 V) 3 Poles in Series, 70 °C 2650 A | (600 V) 3 Poles in Series, 40 °C 2650 A | (72 V) 1-Pole, 70 °C 2650 A | (72 V) 2 Poles in Series, 70 °C 2650 A | (72 V) 3 Poles in Series, 70 °C 2650 A | (850 V) 3 Poles in Series, 40 °C 2650 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V | acc. to UL/CSA 1000 V
Rated Control Circuit Voltage (Uc)
50 Hz 100 ... 250 V
Coil Consumption
Holding at Max. Rated Control Circuit Voltage 50 Hz 48 V·A | Holding at Max. Rated Control Circuit Voltage 60 Hz 48 V·A | Pull-in at Max. Rated Control Circuit Voltage 50 Hz 2450 V·A | Pull-in at Max. Rated Control Circuit Voltage 60 Hz 2450 V·A | Pull-in at Max. Rated Control Circuit Voltage DC 2290 V·A
Power Loss
at Rated Operating Conditions per Pole 200 W
Terminal Type
Main Circuit: Bars
Product Name
Block Contactor
Maximum Operating Voltage UL/CSA
Main Circuit 1000 V
General Use Rating UL/CSA
(1000 V AC) 2700 A | (600 V AC) 2700 A
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
End Of Life Disassembling Instructions
End-of-life instruction - AF1350(B)(T), AF1650(B)(T), AF1650N8, AF2050(B)(T), AF2650(B)(T), AF2850(B)(T)
Environmental Product Declaration - EPD
Environmental product declaration AF1350(T), AF1650(T)(N), AF2050(T), AF2650(T), AF2850 (SE)
CB Certificate
SEMKO_SE70500M1
CCS Certificate
CCS Certificate, Contactor, AF116 to AF2850 (Sweden)
CQC Certificate
CQC Certificate, AC Contactor, AF2650-30-*-*, AF2650T-30-*-*, AF2850-30-*-*, AF2850T-30-*-*, Made in Sweden | CQC Certificate, Contactor, AF2650, Made in China
Declaration of Conformity - CCC
CCC Declaration of Conformity, AC Contactor, AF2650-30-*-*, AF2650T-30-*-*, AF2850-30-*-*, AF2850T-30-*-*, Made in Sweden | CCC Declaration of Conformity, Contactor, AF2650, Made in China
Declaration of Conformity - CE
CE Declaration of Conformity - Contactor - AF400...AF2850
Declaration of Conformity - UKCA
UK Declaration of Conformity - Contactors >100A
EAC Certificate
9AKK107046A8618
LR Certificate
Lloyds register Certificate, Contactor, AF400...AF2850
RINA Certificate
RINA Certificate, AF95, AF110, AF145, AF185, AF210, AF260, AF300, AF400, AF460, AF580, AF750, AF1250, AF1350, AF1650, AF2050, AF2650, AF116, AF140, AF146, AF190, AF205, AF265, AF305, AF370
RMRS Certificate
9AKK107045A6978
UL Certificate
cULus Certificate, Contactor, AF2650...AF2850
UL Listing Card
UL_E73397
Package Level 1 Width
555 mm
Package Level 1 Depth / Length
365 mm
Package Level 1 Height
500 mm
Package Level 1 Gross Weight
45 kg
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4755 >> Contactors
Feature → Business Impact → Application: The 3-pole design supports large motor loads with stable switching under heavy duty conditions, enabling higher reliability and reduced unplanned downtime in conveyor drives and pump systems. Feature → Business Impact → Application: AF technology and a broad control-voltage range (100-250 V AC/DC) minimize control-signal variability, lowering energy waste and improving overall system efficiency in mixed-voltage environments. Feature → Business Impact → Application: Built-in surge protection guards against voltage spikes, reducing contact wear and extending service life in cranes and heavy machinery, while maintaining consistent performance. Feature → Business Impact → Application: Block-type construction with easy add-on auxiliary contact blocks offers modular expansion, enabling scalable automation and simplified maintenance in OEM equipment. Feature → Business Impact → Application: 1000 V rated insulation and UL/CSA general-use rating up to 2700 A ensure regulatory compliance and safe operation in demanding power circuits across facilities. Feature → Business Impact → Application: Main-circuit bars and a compact footprint optimize panel layout, delivering cost savings through reduced enclosure size and faster installation in electrical protection and control applications.
Get a Quick Quote for a ABB 1SFL667001R7000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFL667001R7000?
Enquire Now
FAQs
The 1SFL667001R7000 inherits the AF technology lineage and uses the same three-pole block-contactor footprint, allowing straightforward integration with existing AF2650 installations. It supports add-on auxiliary contact blocks and standard mounting configurations, enabling seamless retrofits and scalable automation without extensive rewiring or cabinet redesigns.
Key ratings include 3 main NO contacts, 1000 V rated insulation, and a UL/CSA general-use rating up to 2700 A. The coil accepts 100-250 V across 50/60 Hz and DC, with coil-consumption values around 48 V·A holding power and 2450 V·A pull-in power, supporting stable control in fluctuating supply conditions.
Yes. With a 3P design and high Ie ratings (up to 2650 A at 40 °C, and 2350 A at 55 °C), the contactor is well-suited for high-inertia motors and continuous duty profiles in demanding industrial environments, provided the installation adheres to the specified voltage and temperature limits.
The device carries CE, UL/CSA general-use approvals, UKCA, CCC, and RoHS/REACH declarations, along with other certificates like CQC and RINA where applicable. These certifications facilitate regulatory compliance across regions, reduce risk for multinational projects, and simplify end-market approvals and supplier qualification processes.
Built-in surge protection and robust block-design reduce wear from voltage spikes and ease future expansion. Regular inspection of main contacts and coil health, plus proactive spare-part planning for auxiliary blocks, helps minimize downtime and extend service life, delivering lower total cost of ownership in long-running motor-control applications.
