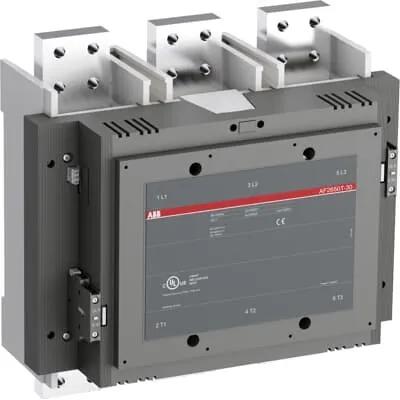

ABB 1SFL667001R9101 Block Contactor - CE Approved
Part Number: 1SFL667001R9101
Quick Summary
ABB 1SFL667001R9101 Block Contactor is a robust 3-pole switch designed for motor control applications up to 2650 A. Engineers often struggle with voltage variation and space constraints in control panels, needing a device that maintains performance without expanding panel footprint. This AF technology-based contactor carries CE, UL/CSA and RoHS/REACH certifications, ensuring global compatibility and regulatory compliance across industries. With pre-mounted auxiliary contacts and main circuit bars, it simplifies installation, while a wide control voltage range and built-in surge protection reduce energy waste and improve reliability. The result is a reliable, compact solution that supports sustainable, cost-conscious automation projects across manufacturing, processing, and packaging environments.
Product Information
Extended Description
1SFL667001R9101 ABB: The AF2650T-30-11 230-240V 50/60Hz is a 3 pole - 1000 V IEC or 1000 V UL contactor with pre-mounted auxiliary contacts and Main Circuit Bars, switching power circuits up to 2650 A (AC-1) or 2700 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (230-240 V 50/60 Hz), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Data Sheet, Technical Information (Part 2)
Contactors and Overload relays guide
Instructions and Manuals
Operating instruction, Contactors AF2650(T), AF2850(T)
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
438 mm
Product Net Depth / Length
244 mm
Product Net Height
392 mm
Product Net Weight
43 kg
Number of Main Contacts NO
3
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
2
Number of Auxiliary Contacts NC
2
Number of Poles
3P
Rated Operational Voltage
Main Circuit 1000 V
Rated Frequency (f)
Main Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (Ith)
acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 2650 A
Rated Operational Current AC-1 (Ie)
(1000 V) 40 °C 2650 A | (1000 V) 55 °C 2350 A | (1000 V) 70 °C 2120 A | (690 V) 40 °C 2650 A | (690 V) 55 °C 2350 A | (690 V) 70 °C 2120 A
Rated Operational Current DC-1 (Ie)
(110 V) 2 Poles in Series, 40 °C 2650 A | (220 V) 3 Poles in Series, 40 °C 2650 A | (220 V) 3 Poles in Series, 70 °C 2650 A | (600 V) 3 Poles in Series, 40 °C 2650 A | (850 V) 3 Poles in Series, 40 °C 2650 A
Rated Making Capacity AC-3
10 x Ie AC-3
Rated Short-time Withstand Current Low Voltage (Icw)
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 10000 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 2800 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 5500 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 12000 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 7500 A
Maximum Breaking Capacity
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 8400 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V | acc. to UL/CSA 1000 V
Rated Impulse Withstand Voltage (Uimp)
Main Circuit 8 kV
Maximum Electrical Switching Frequency
(AC-1) 15 cycles per hour
Mechanical Durability
0.3 million
Maximum Mechanical Switching Frequency
300 cycles per hour
Coil Operating Limits
(acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C)
Rated Control Circuit Voltage (Uc)
50 Hz 230 ... 240 V | 60 Hz 230 ... 240 V | DC Operation 230 ... 240 V
Coil Consumption
Holding at Max. Rated Control Circuit Voltage 50 Hz 48 V·A | Holding at Max. Rated Control Circuit Voltage 60 Hz 48 V·A | Holding at Max. Rated Control Circuit Voltage DC 20.5 V·A | Pull-in at Max. Rated Control Circuit Voltage 50 Hz 2450 V·A | Pull-in at Max. Rated Control Circuit Voltage 60 Hz 2450 V·A | Pull-in at Max. Rated Control Circuit Voltage DC 2290 V·A
Power Loss
at Rated Operating Conditions per Pole 200 W
Operate Time
Between Coil De-energization and NC Contact Closing 35 ... 55 ms | Between Coil De-energization and NO Contact Opening 35 ... 55 ms | Between Coil Energization and NC Contact Opening 50 ... 80 ms | Between Coil Energization and NO Contact Closing 50 ... 80 ms
Connecting Capacity Main Circuit
Bar 100 mm²
Connecting Capacity Auxiliary Circuit
Flexible with Ferrule 1x 0.75 ... 2.5 mm² | Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm² | Flexible 1x0.75 ... 2.5 mm² | Solid 2 x 1 ... 4 mm² | Stranded 2 x 1 .... 4 mm²
Connecting Capacity
Bar 100 mm²
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
Tightening Torque
Cable Lug 45 N·m
Terminal Type
Main Circuit: Bars
Product Name
Block Contactor
Maximum Operating Voltage UL/CSA
Main Circuit 1000 V
General Use Rating UL/CSA
(1000 V AC) 2700 A | (600 V AC) 2700 A
Ambient Air Temperature
Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °C | Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C | Close to Contactor for Storage -40 ... 70 °C
Maximum Operating Altitude Permissible
Without Derating 3000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
End Of Life Disassembling Instructions
End-of-life instruction - AF1350(B)(T), AF1650(B)(T), AF1650N8, AF2050(B)(T), AF2650(B)(T), AF2850(B)(T)
CB Certificate
SEMKO_SE70500M1
CCS Certificate
CCS Certificate, Contactor, AF116 to AF2850 (Sweden)
CQC Certificate
CQC Certificate, AC Contactor, AF2650-30-*-*, AF2650T-30-*-*, AF2850-30-*-*, AF2850T-30-*-*, Made in Sweden
Declaration of Conformity - CCC
CCC Declaration of Conformity, AC Contactor, AF2650-30-*-*, AF2650T-30-*-*, AF2850-30-*-*, AF2850T-30-*-*, Made in Sweden
Declaration of Conformity - CE
CE Declaration of Conformity - Contactor - AF400...AF2850
Declaration of Conformity - UKCA
UK Declaration of Conformity - Contactors >100A
EAC Certificate
9AKK107046A8618
LR Certificate
Lloyds register Certificate, Contactor, AF400...AF2850
RINA Certificate
RINA Certificate, AF95, AF110, AF145, AF185, AF210, AF260, AF300, AF400, AF460, AF580, AF750, AF1250, AF1350, AF1650, AF2050, AF2650, AF116, AF140, AF146, AF190, AF205, AF265, AF305, AF370
RMRS Certificate
9AKK107045A6978
UL Certificate
cULus Certificate, Contactor, AF2650...AF2850
Package Level 1 Units
box 1 piece
Package Level 1 Width
555 mm
Package Level 1 Depth / Length
365 mm
Package Level 1 Height
500 mm
Package Level 1 Gross Weight
45 kg
Package Level 1 EAN
7320500481585
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4755 >> Contactors
Feature: 3-pole design and high current handling up to 2650 A AC-1. Business Impact: Enables direct switching of large motor loads, reducing the need for multiple devices and saving installation space. Application: Heavy-duty conveyors, pumps, and presses in industrial settings. Feature: AF technology with a wide control voltage range of 230-240 V 50/60 Hz. Business Impact: Improves resilience to control voltage variations and reduces energy waste in unstable networks. Application: Panel designs with fluctuating supply where stable coil operation is critical. Feature: Built-in surge protection and compact block design. Business Impact: Enhances reliability in harsh electrical environments and simplifies wiring density. Application: OEM panels and retrofit projects requiring compact, dependable control. Feature: Pre-mounted auxiliary contacts (NO/NC 2/2) and main circuit bars (100 mm²). Business Impact: Speeds up installation, supports straightforward signaling, and ensures solid current paths. Application: Control circuits and interlocks in modern machine architectures. Feature: Comprehensive ratings and safety margins (Ui 1000 V, Ic up to 2650 A, AC-3 making capacity 10 x Ie). Business Impact: Provides regulatory compliance and predictable lifecycle performance. Application: Industrial motor control in diverse voltage classes. Feature: Mechanical and electrical robustness with IP20 coil terminals and 0.85–1.1 Uc operating window. Business Impact: Reduces maintenance, extends service intervals, and supports reliable operation in temp swings. Application: Panels within manufacturing plants and process lines where ambient conditions vary.
Get a Quick Quote for a ABB 1SFL667001R9101
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFL667001R9101?
Enquire Now
FAQs
Install the 3P contactor with its main circuit bars rated at 100 mm² and connect the coil to the 230-240 V supply at 50/60 Hz. Use the pre-mounted auxiliary contacts (2 NO and 2 NC) for signaling or interlocking, and tighten connections to the recommended torque. Ensure IP20 coil terminals are protected and verify correct phase orientation before energizing.
For AC-1 operation at 1000 V, the device supports up to 2650 A (40 °C), with de-rate options at higher temperatures (55 °C and 70 °C). DC-1 ratings shown include multiple series connections (e.g., 110 V or 600 V variants) still enabling 2650 A in specified configurations. Rated insulation voltage is 1000 V, and impulse withstand is 8 kV, ensuring robust electrical performance.
Yes, thanks to a rated making capacity of 10 x Ie for AC-3, this contactor can handle high-inertia starts with reduced wear on upstream equipment. Its 3P design and 1000 V insulation, combined with AF technology and surge protection, improve reliability during frequent starts and stops common in manufacturing lines while maintaining safe switching frequencies.
This model carries CE declarations of conformity and UL/CSA certifications for general use, with additional approvals such as LR, RINA, and UKCA where applicable. RoHS and REACH declarations confirm compliance with environmental and chemical regulations, supporting global distribution and regulatory alignment in diverse markets.
Expect about 0.3 million mechanical cycles and monitor coil consumption values (holding and pull-in) to manage energization costs. Plan periodic inspections of main wiring connections (100 mm² bars) and auxiliary circuits, verify surge protection integrity, and schedule preventive maintenance aligned with the panel’s duty cycle to optimize uptime and cost of ownership.
