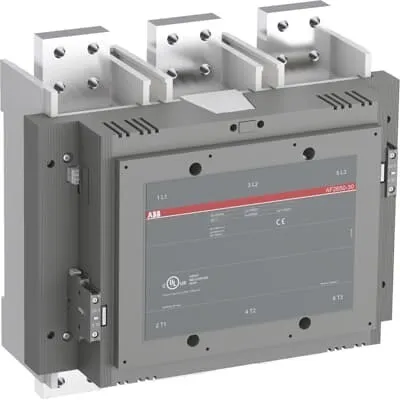

ABB AF2650-30-22 Contactor - UL/CSA 2700 A
Part Number: 1SFL667033R7022
Quick Summary
AF2650-30-22 Contactor is a high-capacity motor starter for industrial drive systems. In real-world panels, voltage fluctuations and varying loads can waste energy and shorten equipment life. It carries CE, UL/CSA, and UKCA certifications, ensuring global compliance and safer operation across markets. With a wide control-voltage range and built-in surge protection, this device helps reduce panel energy consumption while delivering reliable starts. For OEMs and panel builders, its modular AF technology and add-on auxiliary blocks enable scalable, cost-efficient installations and predictable maintenance.
Product Information
Extended Description
1SFL667033R7022 ABB: The AF2650-30-22-70 CT19001 is a 3 pole - 1000 V IEC or 1000 V UL contactor with pre-mounted auxiliary contacts and Main Circuit Bars, switching power circuits up to 2650 A (AC-1) or 2700 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Data Sheet, Technical Information (Part 2)
Contactors and Overload relays guide
Instructions and Manuals
Operating instruction, Contactors AF2650(T), AF2850(T)
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
438 mm
Product Net Depth / Length
244 mm
Product Net Height
422 mm
Product Net Weight
43 kg
Number of Main Contacts NO
3
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
2
Number of Auxiliary Contacts NC
2
Number of Poles
3P
Rated Operational Voltage
Main Circuit 1140 V
Rated Frequency (f)
Main Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (Ith)
acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 2650 A
Rated Operational Current AC-1 (Ie)
(1000 V) 40 °C 2650 A | (1000 V) 55 °C 2350 A | (1000 V) 70 °C 2120 A | (690 V) 40 °C 2650 A | (690 V) 55 °C 2350 A | (690 V) 70 °C 2120 A | (1140 V) 40 °C 2650 A
Rated Operational Current DC-1 (Ie)
(110 V) 1-Pole, 70 °C 2650 A | (110 V) 2 Poles in Series, 70 °C 2650 A | (110 V) 3 Poles in Series, 70 °C 2650 A | (220 V) 3 Poles in Series, 40 °C 2650 A | (220 V) 3 Poles in Series, 70 °C 2650 A | (260 V) 3 Poles in Series, 70 °C 2650 A | (300 V) 3 Poles in Series, 70 °C 2650 A | (340 V) 3 Poles in Series, 70 °C 2650 A | (600 V) 3 Poles in Series, 40 °C 2650 A | (72 V) 1-Pole, 70 °C 2650 A | (72 V) 2 Poles in Series, 70 °C 2650 A | (72 V) 3 Poles in Series, 70 °C 2650 A | (850 V) 3 Poles in Series, 40 °C 2650 A
Rated Short-time Withstand Current Low Voltage (Icw)
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 10000 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 2800 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 5500 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 12000 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 7500 A
Maximum Breaking Capacity
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 8400 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1140 V | acc. to UL/CSA 1000 V
Rated Impulse Withstand Voltage (Uimp)
Main Circuit 8 kV
Maximum Electrical Switching Frequency
(AC-1) 15 cycles per hour
Mechanical Durability
0.3 million
Maximum Mechanical Switching Frequency
300 cycles per hour
Coil Operating Limits
(acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C)
Rated Control Circuit Voltage (Uc)
50 Hz 100 ... 250 V | 60 Hz 100 ... 250 V | DC Operation 100 ... 250 V
Coil Consumption
Holding at Max. Rated Control Circuit Voltage 50 Hz 48 V·A | Holding at Max. Rated Control Circuit Voltage 60 Hz 48 V·A | Holding at Max. Rated Control Circuit Voltage DC 20.5 V·A | Pull-in at Max. Rated Control Circuit Voltage 50 Hz 2450 V·A | Pull-in at Max. Rated Control Circuit Voltage 60 Hz 2450 V·A | Pull-in at Max. Rated Control Circuit Voltage DC 2290 V·A
Power Loss
at Rated Operating Conditions per Pole 200 W
Operate Time
Between Coil De-energization and NC Contact Closing 35 ... 55 ms | Between Coil De-energization and NO Contact Opening 35 ... 55 ms | Between Coil Energization and NC Contact Opening 50 ... 80 ms | Between Coil Energization and NO Contact Closing 50 ... 80 ms
Connecting Capacity Main Circuit
Bar 100 mm²
Connecting Capacity Auxiliary Circuit
Flexible with Ferrule 2x 0.75 ... 2.5 mm² | Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm² | Flexible 2x0.75 ... 2.5 mm² | Solid 2 x 1 ... 4 mm² | Stranded 2 x 1 .... 4 mm²
Connecting Capacity
Bar 100 mm²
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
Tightening Torque
Cable Lug 45 N·m
Terminal Type
Main Circuit: Bars
Product Name
Block Contactor
Maximum Operating Voltage UL/CSA
Main Circuit 1000 V
General Use Rating UL/CSA
(1000 V AC) 2700 A | (600 V AC) 2700 A
Ambient Air Temperature
Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °C | Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C | Close to Contactor for Storage -40 ... 70 °C
Maximum Operating Altitude Permissible
Without Derating 3000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
End Of Life Disassembling Instructions
End-of-life instruction - AF1350(B)(T), AF1650(B)(T), AF1650N8, AF2050(B)(T), AF2650(B)(T), AF2850(B)(T)
Environmental Product Declaration - EPD
Environmental product declaration AF1350, AF1650, AF2050, AF2650 (CN) Contactors
CB Certificate
SEMKO_SE70500M1
CCS Certificate
CCS Certificate, Contactor, AF116 to AF2850 (Sweden)
CQC Certificate
CQC Certificate, AC Contactor, AF2650-30-*-*, AF2650T-30-*-*, AF2850-30-*-*, AF2850T-30-*-*, Made in Sweden | CQC Certificate, Contactor, AF2650, Made in China
Declaration of Conformity - CCC
CCC Declaration of Conformity, AC Contactor, AF2650-30-*-*, AF2650T-30-*-*, AF2850-30-*-*, AF2850T-30-*-*, Made in Sweden | CCC Declaration of Conformity, Contactor, AF2650, Made in China
Declaration of Conformity - CE
CE Declaration of Conformity - Contactor - AF400...AF2850
Declaration of Conformity - UKCA
UK Declaration of Conformity - Contactors >100A
EAC Certificate
9AKK107046A8618
LR Certificate
Lloyds register Certificate, Contactor, AF400...AF2850
UL Certificate
cULus Certificate, Contactor, AF2650...AF2850
Package Level 1 Units
box 1 piece
Package Level 1 Width
555 mm
Package Level 1 Depth / Length
365 mm
Package Level 1 Height
500 mm
Package Level 1 Gross Weight
45 kg
Package Level 1 EAN
7320500524978
Package Level 2 Units
1 piece
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4755 >> Contactors
Wide control voltage range with AF technology reduces energy waste and improves reliability across 100-250 V AC, 100-250 V DC drives, enabling stable motor starts in networks with voltage fluctuations. This translates to lower energy bills and longer drive life in manufacturing lines, pumps, and conveyors. The 3-pole main circuit supports up to 2650 A (AC-1) and 2700 A UL general use, allowing designers to consolidate switching hardware and minimize panel footprint while maintaining high fault tolerance. Built-in surge protection and a rated insulation voltage of 1140 V reduce transient damage and simplify safety compliance in demanding environments. The block-type design is easily extended with add-on auxiliary contact blocks, accelerating a scalable upgrade path without reworking cabinets. With compatible connectors (Bar 100 mm²) and versatile coil options, installation is faster and more reliable, reducing commissioning time and field wiring errors. Robust environmental specs, RoHS/REACH declarations, and multiple certifications provide confidence for global deployments and long-term maintenance planning.
