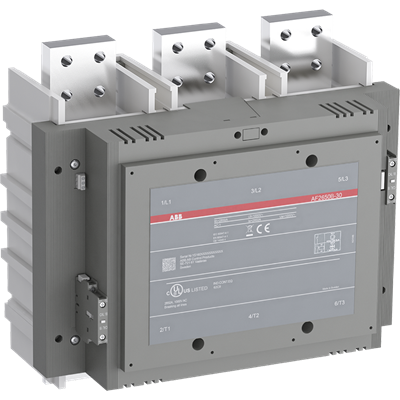

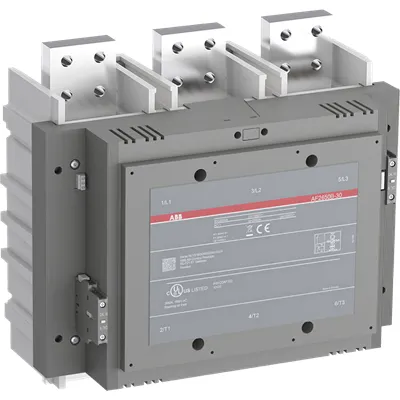

ABB 1SFL667063R7022 Block Contactor UL/CE 1000V
Part Number: 1SFL667063R7022
Quick Summary
ABB 1SFL667063R7022 Block Contactor is a high-capacity switch for motor and power circuits in industrial control panels. In real-world panels, voltage fluctuations can cause nuisance trips and unreliable operation; this device's wide control voltage range helps maintain stable performance even as supply voltages swing. The AF technology design delivers robust reliability with integrated surge protection and a compact, modular footprint. CE, UL and RoHS/REACH compliances streamline global approvals and batch testing, while documentation supports fast certification. For engineers and procurement teams, the unit offers easy panel integration, scalable auxiliary contacts, and accessory options that reduce wiring complexity and maintenance costs over the life of the installation.
Product Information
Extended Description
1SFL667063R7022 ABB: The AF2650B-30-22-70 is a 3 pole - 1000 V IEC or 1000 V UL contactor with pre-mounted auxiliary contacts and standard ferrules, switching power circuits up to 2650 A (AC-1) or 2700 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
1SBC100192C0206
Data Sheet, Technical Information (Part 2)
Contactors and Overload relays guide
Instructions and Manuals
Operating instruction, Contactors AF2650(T), AF2850(T)
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
438 mm
Product Net Depth / Length
244 mm
Product Net Height
422 mm
Product Net Weight
43 kg
Rated Control Circuit Voltage (Uc)
50 Hz 100...250 V
Coil Consumption
Holding at Max. Rated Control Circuit Voltage 50 Hz 48 V·A | Pull-in at Max. Rated Control Circuit Voltage 50 Hz 2450 V·A
Connecting Capacity Main Circuit
Bar 100 mm²
Connecting Capacity Auxiliary Circuit
Flexible with Ferrule 2x 0.75 ... 2.5 mm² | Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm² | Flexible 1x 0.75 ... 2.5 mm² | Solid 2x 1 ... 4 mm² | Stranded 2x 1 ... 4 mm²
Connecting Capacity
Bar 100 mm²
Recommended Screw Driver
Control Circuit M3.5 | Control Circuit Pozidriv 2
Tightening Torque
Cable Lug 45 N·m
Terminal Type
Main Circuit: Bars
Product Name
Block Contactor
Ambient Air Temperature
Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °C | Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C | Close to Contactor for Storage -40 ... 70 °C
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
End Of Life Disassembling Instructions
End-of-life instruction - AF1350(B)(T), AF1650(B)(T), AF1650N8, AF2050(B)(T), AF2650(B)(T), AF2850(B)(T)
CB Certificate
SEMKO_SE70500M1
CCS Certificate
CCS Certificate, Contactor, AF116 to AF2850 (Sweden)
CQC Certificate
CQC Certificate, AC Contactor, AF2650-30-*-*, AF2650T-30-*-*, AF2850-30-*-*, AF2850T-30-*-*, Made in Sweden | CQC Certificate, Contactor, AF2650, Made in China
Declaration of Conformity - CCC
CCC Certificate, AC Contactor, AF2650-30-*-*, AF2650T-30-*-*, AF2850-30-*-*, AF2850T-30-*-*, AF2650B-30-*-*, AF2850B-30-*-*, Made in Sweden
Declaration of Conformity - CE
CE Declaration of Conformity - Contactor - AF400B...AF2850B
Declaration of Conformity - UKCA
UK Declaration of Conformity - Contactors >100A
EAC Certificate
9AKK107046A8618
LR Certificate
Lloyds register Certificate, Contactor, AF400...AF2850
RINA Certificate
RINA Certificate, AF95, AF110, AF145, AF185, AF210, AF260, AF300, AF400, AF460, AF580, AF750, AF1250, AF1350, AF1650, AF2050, AF2650, AF116, AF140, AF146, AF190, AF205, AF265, AF305, AF370
RMRS Certificate
9AKK107045A6978
UL Certificate
cULus Certificate, Contactor, AF2650...AF2850
Package Level 1 Units
box 1 piece
Package Level 1 Width
555 mm
Package Level 1 Depth / Length
365 mm
Package Level 1 Height
500 mm
Package Level 1 Gross Weight
45 kg
Package Level 1 EAN
7320500481660
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
Feature AF technology enables a wide control voltage range of 100-250 V AC/DC, reducing sensitivity to input fluctuations. Business Impact This translates to more stable switching, lower panel energy waste, and fewer nuisance trips in variable networks. Application Ideal for control cabinets in manufacturing lines where control voltage varies and reliability is critical. Feature High switching capacity with AC-1 rating up to 2650 A (2700 A UL general use). Business Impact Supports large motor loads and high-inertia loads, enabling fewer contactor replacements and reduced downtime. Application Heavy-duty motor control in conveyors, presses, and pumps. Feature Integrated surge protection and compact AF block design. Business Impact Improves reliability, minimizes additional protective devices, and saves panel space. Application Ideal for compact control panels with stringent space constraints. Feature AF technology allows easy expansion with add-on auxiliary contact blocks. Business Impact Enables scalable control logic and simplified maintenance, reducing downtime during upgrades. Application Suitable for modular control schemes in automation plants. Feature Flexible terminal options: Main circuit uses bars; auxiliary circuits accept ferrules and solid or stranded conductors. Business Impact Simplifies wiring, speeds installation, and improves connection reliability. Application For diverse field wiring scenarios in panel assemblies. Feature Comprehensive documentation and certifications including CE, UL, RoHS, REACH. Business Impact Accelerates compliance and approvals for global deployments, reducing project lead times. Application Export-ready configurations and fast onboarding for multi-site installations.
Get a Quick Quote for a ABB 1SFL667063R7022
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFL667063R7022?
Enquire Now
FAQs
This 3-pole block contactor uses Bar 100 mm² main circuit connections and supports a wide auxiliary wiring range, including ferrules and solid conductors. Its modular AF design accepts add-on auxiliary contact blocks, enabling seamless upgrades within existing panels without replacing the base unit. Ensure mounting clearance aligns with the 438 mm width and 422 mm height specification for trouble-free integration.
The coil accepts 100–250 V across AC and DC, allowing operation across varying supply conditions without misoperation. AF technology stabilizes operation by accommodating voltage fluctuations, reducing hold-up energy waste and ensuring consistent pull-in behavior even in unstable networks.
Yes. The ABB AF2650-series contactor supports up to 2650 A in AC-1 service, with UL general use ratings up to 2700 A. This makes it suitable for heavy-duty motors and high-inertia loads, reducing the need for multiple contactors in parallel and simplifying control schemes.
The device carries CE and UL certifications, along with RoHS and REACH compliance. Additional declarations and certificates cover environmental and safety standards, easing regulatory approvals and supporting export readiness for global deployments.
Plan for 438 mm width and 244 mm depth with a 422 mm height footprint. Main circuit connections use bars rated at 100 mm², while auxiliary circuits accept flexible ferrule or solid conductors within the specified range. Use the recommended M3.5 control circuit screwdriver and follow the tightening torque of 45 N·m for cable lugs to ensure reliable connections.
