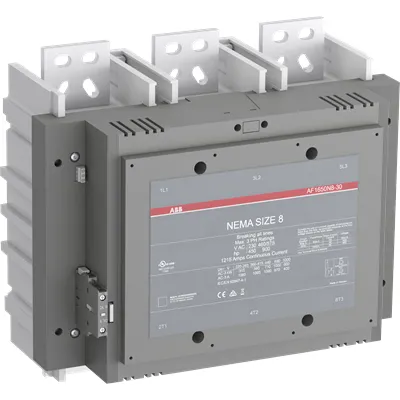

ABB 1SFL677001N7011 Block Contactor - IEC/UL 1000V
Part Number: 1SFL677001N7011
Quick Summary
Block Contactor ABB 1SFL677001N7011 enables reliable motor control for large industrial drives. In demanding panels, voltage fluctuations can cause nuisance coil de-energization or energy waste. AF technology provides a wide control voltage range from 100 to 250 V (ac/dc), ensuring stable operation and reduced panel energy consumption. The device complies with IEC 60947-1 / 60947-4-1, EN 60947-1 / 60947-4-1, UL 508 and CSA C22.2 N°14, and carries CE declarations for conformity. Its block-type design supports easy extension with auxiliary contact blocks and a broad accessory ecosystem, while compact construction saves panel space. For procurement, the combination of performance, standardization, and lifecycle compliance translates into lower maintenance costs and improved system reliability.
Product Information
Extended Description
1SFL677001N7011 ABB: The AF1650N8-30-11-70 NEMA Contactor is a 3 pole - 1000 V IEC or 1000 V UL contactor with Main Circuit: Bars, controlling motors up to 560 kW / 400 V AC (AC-3) or 900 hp / 480 V UL 1650 A (AC-1) or 1650 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V, 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Instructions and Manuals
Operating instruction, Contactors AF1350, AF1650,AF2050
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
438 mm
Product Net Depth / Length
244 mm
Product Net Height
392 mm
Product Net Weight
33 kg
Number of Main Contacts NO
3
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
1
Number of Auxiliary Contacts NC
1
Number of Poles
3P
Standards
IEC 60947-1 / 60947-4-1 and EN 60947-1 / 60947-4-1, UL 508, CSA C22.2 N°14
Rated Operational Voltage
Main Circuit 1000 V
Rated Frequency (f)
Main Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (Ith)
acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 1650 A
Rated Operational Current AC-1 (Ie)
(1000 V) 40 °C 1650 A | (1000 V) 55 °C 1450 A | (1000 V) 70 °C 1270 A | (690 V) 40 °C 1650 A | (690 V) 55 °C 1450 A | (690 V) 70 °C 1270 A
Rated Operational Current AC-3 (Ie)
(220 / 230 / 240 V) 55 °C 1060 A
Rated Operational Current DC-1 (Ie)
(110 V) 1-Pole, 40 °C 1650 A | (110 V) 2 Poles in Series, 40 °C 1650 A | (220 V) 3 Poles in Series, 40 °C 1650 A | (600 V) 3 Poles in Series, 40 °C 1650 A | (850 V) 3 Poles in Series, 40 °C 1650 A
Rated Operational Power AC-3 (Pe)
(415 V) 630 kW | (440 V) 710 kW | (500 V) 710 kW | (690 V) 1000 kW | (1000 V) 600 kW | (380 / 400 V) 560 kW | (220 / 230 / 240 V) 315 kW
Rated Breaking Capacity AC-3
8 x Ie AC-3
Rated Making Capacity AC-3
10 x Ie AC-3
Rated Short-time Withstand Current Low Voltage (Icw)
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 10000 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 2200 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 5500 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 12000 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 7500 A
Maximum Breaking Capacity
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 12000 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V
Rated Impulse Withstand Voltage (Uimp)
Main Circuit 8 kV
Maximum Electrical Switching Frequency
(AC-1) 60 cycles per hour | (AC-2 / AC-4) 60 cycles per hour | (AC-3) 60 cycles per hour
Mechanical Durability
0.5 million
Maximum Mechanical Switching Frequency
300 cycles per hour
Coil Operating Limits
(acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C)
Rated Control Circuit Voltage (Uc)
50 Hz 100...250 V | 60 Hz 100 ... 250 V | DC Operation 100...250 V
Coil Consumption
Holding at Max. Rated Control Circuit Voltage 50 Hz 48 V·A | Holding at Max. Rated Control Circuit Voltage 60 Hz 48 V·A | Holding at Max. Rated Control Circuit Voltage DC 20.5 V·A | Pull-in at Max. Rated Control Circuit Voltage 50 Hz 2450 V·A | Pull-in at Max. Rated Control Circuit Voltage 60 Hz 2450 V·A | Pull-in at Max. Rated Control Circuit Voltage DC 2290 V·A
Power Loss
at Rated Operating Conditions per Pole 80 W
Operate Time
Between Coil De-energization and NC Contact Closing 35 ... 55 ms | Between Coil De-energization and NO Contact Opening 35 ... 55 ms | Between Coil Energization and NC Contact Opening 50 ... 80 ms | Between Coil Energization and NO Contact Closing 50 ... 80 ms
Connecting Capacity Main Circuit
Bar 100 mm²
Connecting Capacity Auxiliary Circuit
Flexible with Ferrule 2x 0.75 ... 2.5 mm² | Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm² | Flexible 2x 0.75 ... 2.5 mm² | Solid 2x 1 ... 4 mm² | Stranded 2x 1 ... 4 mm²
Connecting Capacity
Bar 100 mm²
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
Tightening Torque
Cable Lug 45 N·m
Terminal Type
Main Circuit: Bars
Product Name
Block Contactor
NEMA Size
8
Horsepower Rating NEMA
(230 V AC) Three Phase 450 Hp | (460 V AC) Three Phase 900 Hp | (575 V AC) Three Phase 900 Hp
General Use Rating UL/CSA
(1000 V AC) 1650 A
Ambient Air Temperature
Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °C | Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C | Close to Contactor for Storage -40 ... 70 °C
Maximum Operating Altitude Permissible
Without Derating 3000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
End Of Life Disassembling Instructions
End-of-life instruction - AF1350(B)(T), AF1650(B)(T), AF1650N8, AF2050(B)(T), AF2650(B)(T), AF2850(B)(T)
Environmental Product Declaration - EPD
Environmental product declaration AF1350(T), AF1650(T)(N), AF2050(T), AF2650(T), AF2850 (SE)
CB Certificate
SEMKO_SE-74013
cUL Certificate
cULus Certificate, Contactor, AF1350, AF1650, AF2050 (NLDX)
Declaration of Conformity - CE
CE Declaration of Conformity - Contactor - AF400...AF2850
Package Level 1 Units
box 1 piece
Package Level 1 Width
555 mm
Package Level 1 Depth / Length
365 mm
Package Level 1 Height
500 mm
Package Level 1 Gross Weight
35 kg
Package Level 1 EAN
7320500543726
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4762 >> Nema Contactors
Feature: AF technology with a broad control voltage range (100–250 V AC, 50/60 Hz, and DC). Business Impact: stabilizes coil operation despite voltage variations, reducing energy waste and nuisance trips. Application: ideal for large drives in factories where mains quality fluctuates and control circuits must tolerate variations without performance loss.\n\nFeature: 3-pole main circuit rated to 1000 V and current ratings up to 1650 A (AC-1/AC-3 depending on voltage). Business Impact: enables high-torque motor control and generous overload margin, supporting motors up to 560 kW at 400 V AC-3. Application: conveyors, pumps, and fans in heavy-duty automation lines.\n\nFeature: Built-in surge protection and compact block design. Business Impact: protects contacts, extends service life, and reduces cabinet costs by removing the need for separate suppression components. Application: space-constrained switchgear where reliability is critical.\n\nFeature: Block-type design with add-on auxiliary contact blocks. Business Impact: scalable control circuits, simplified wiring, and easier maintenance with modular expansion. Application: multi-axis control and expandable motor control panels.\n\nFeature: Robust installation credentials: Bar 100 mm² main circuit connectors; IP20 coil terminals; IP00 main terminals; 45 N·m tightening torque. Business Impact: straightforward panel assembly, secure wiring, and reliable performance in harsh environments. Application: OEM assemblies and retrofit projects requiring dependable fixed-contact switching.\n\nFeature: Compliance and lifecycle support: RoHS, REACH, WEEE; End-of-Life disassembly and EPD information. Business Impact: ensured regulatory compliance and sustainable procurement practices, reducing risk across the supply chain. Application: procurement for regulated industries and long-life industrial installations.
Get a Quick Quote for a ABB 1SFL677001N7011
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFL677001N7011?
Enquire Now
FAQs
Plan for a 3-pole main circuit with Bar 100 mm² connections and 45 N·m tightening torque. Use coil terminals rated IP20 and main terminals IP00, ensuring correct clearance and venting. The unit supports add-on auxiliary blocks, so lay out space for future expansion without reworking the cabinet wiring. Verify ambient temperatures and altitude per specifications to prevent derating and ensure reliable switching under load conditions.
For AC-3 at 690 V, Ie remains high, and at 415–440 V it covers up to 1000 kW per the catalog, with AC-1 ratings up to 1650 A at 1000 V and 1450–1270 A at elevated temperatures. The device is designed for 3P operation with NO/NC auxiliary contacts, enabling versatile motor control. This makes it suitable for high-power motor starters in material handling and process industries.
Yes. It supports ambient temperatures from -25 to 70°C depending on configuration, with derating considerations at higher temperatures. It is rated for up to 3000 m altitude without derating, making it appropriate for industrial sites with varying elevations. For storage, the temperature range extends to -40 to 70°C. Ensure the installation environment meets these limits to maintain performance.
The product complies with IEC 60947-1 / 60947-4-1 and EN 60947-1 / 60947-4-1, UL 508, CSA C22.2 N°14, and CE declarations. It also carries CB certification SEMKO_SE-74013 and cULus for related variants. These certifications support safe integration into global control panels and ensure conformity with electrical protection and circuit control requirements.
The AF technology reduces energy waste by stabilizing coil operation across voltage variations, lowering panel heat and energy costs. Built-in surge protection, modular auxiliary contacts, and high mechanical durability (0.5 million cycles) translate to longer service intervals and lower maintenance. Its compatibility with standardized accessory blocks simplifies spare parts management and extends the life of legacy switchgear while meeting RoHS, REACH, and WEEE requirements.
