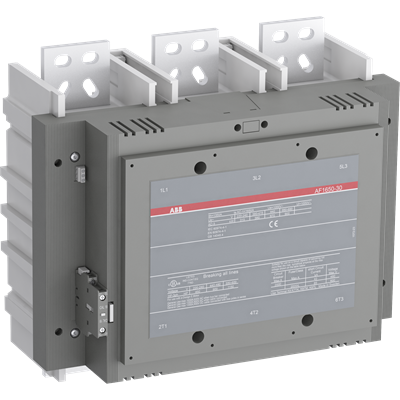

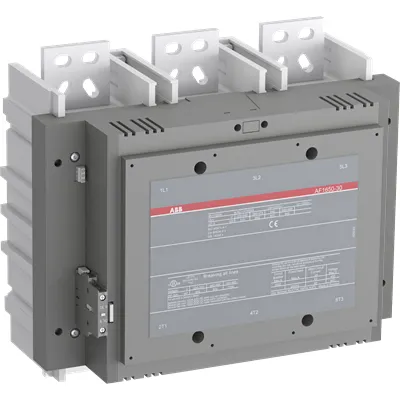

ABB AF1650-30-00-70 Block Contactor - UL/CSA 1000 V
Part Number: 1SFL677001R7000
Quick Summary
ABB AF1650-30-00-70 block contactor is a three-pole motor controller for industrial automation applications. Engineers often face voltage fluctuations that trigger nuisance trips and wasted energy in control panels, especially in unreliable networks. This device comes with CE and UL/CSA certifications, plus RoHS/REACH compliance, delivering global safety and regulatory assurance. The AF technology enables a wide control voltage range and modular extendability, helping OEMs and maintenance teams reduce panel footprint, simplify wiring, and lower lifecycle costs while preserving robust motor control performance. For designers tackling demanding loads, this solution blends reliability with practical adaptability for commercial and heavy-duty installations.
Product Information
Extended Description
1SFL677001R7000 ABB: The AF1650-30-00-70 is a 3 pole - 1000 V IEC or 1000 V UL contactor and Main Circuit Bars, controlling motors up to 560 kW / 400 V AC (AC-3) or 1150 hp / 480 V UL and switching power circuits up to 1650 A (AC-1) or 1650 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Data Sheet, Technical Information (Part 2)
Contactors and Overload relays guide
Instructions and Manuals
Operating instruction, Contactors AF1350, AF1650,AF2050
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
438 mm
Product Net Depth / Length
244 mm
Product Net Height
392 mm
Product Net Weight
33 kg
Number of Main Contacts NO
3
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
0
Number of Auxiliary Contacts NC
0
Number of Poles
3P
Rated Operational Voltage
Main Circuit 1000 V
Rated Operational Current AC-1 (Ie)
(1000 V) 40 °C 1650 A | (1000 V) 55 °C 1450 A | (1000 V) 70 °C 1270 A | (690 V) 40 °C 1650 A | (690 V) 55 °C 1450 A | (690 V) 70 °C 1270 A
Rated Operational Current AC-3 (Ie)
(220 / 230 / 240 V) 55 °C 1060 A
Rated Operational Power AC-3 (Pe)
(415 V) 630 kW | (440 V) 710 kW | (500 V) 710 kW | (690 V) 1000 kW | (1000 V) 600 kW | (380 / 400 V) 560 kW | (220 / 230 / 240 V) 315 kW
Rated Short-time Withstand Current Low Voltage (Icw)
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 10000 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 2200 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 5500 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 12000 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 7500 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V | acc. to UL/CSA 1000 V
Rated Control Circuit Voltage (Uc)
50 Hz 100 ... 250 V
Coil Consumption
Holding at Max. Rated Control Circuit Voltage 50 Hz 48 V·A | Holding at Max. Rated Control Circuit Voltage 60 Hz 48 V·A | Pull-in at Max. Rated Control Circuit Voltage 50 Hz 2450 V·A | Pull-in at Max. Rated Control Circuit Voltage 60 Hz 2450 V·A | Pull-in at Max. Rated Control Circuit Voltage DC 2290 V·A
Power Loss
at Rated Operating Conditions per Pole 80 W
Terminal Type
Main Circuit: Bars
Product Name
Block Contactor
NEMA Size
8
Maximum Operating Voltage UL/CSA
Main Circuit 1000 V
General Use Rating UL/CSA
(1000 V AC) 1650 A | (600 V AC) 1650 A
Horsepower Rating UL/CSA
(220 ... 240 V AC) Three Phase 450 Hp | (440 ... 480 V AC) Three Phase 900 Hp | (550 ... 600 V AC) Three Phase 1150 Hp
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
End Of Life Disassembling Instructions
End-of-life instruction - AF1350(B)(T), AF1650(B)(T), AF1650N8, AF2050(B)(T), AF2650(B)(T), AF2850(B)(T)
Environmental Product Declaration - EPD
Environmental product declaration AF1350(T), AF1650(T)(N), AF2050(T), AF2650(T), AF2850 (SE)
ABS Certificate
ABS Certificate, Contactor, AF400...AF2050 (Sweden)
BV Certificate
BV Certificate, Contactor, AF400 ... AF2850
CB Certificate
SEMKO_SE-74013
CCS Certificate
CCS Certificate, Contactor, AF116 to AF2850 (Sweden)
CQC Certificate
CQC Certificate, AC Contactor, AF1350-30-*-*, AF1650-30-*-*, AF2050-30-*-*, AF1350T-30-*-*, AF1650T-30-*-*, AF2050T-30-*-*, Made in Sweden | CQC Certificate, Contactor, AF1350, AF1650, AF2050, Made in China
Declaration of Conformity - CCC
CCC Declaration of Conformity, AC Contactor, AF1350-30-*-*, AF1650-30-*-*, AF2050-30-*-*, AF1350T-30-*-*, AF1650T-30-*-*, AF2050T-30-*-*, Made in Sweden | CCC Declaration of Conformity, Contactor, AF1350, AF1650, AF2050, Made in China
Declaration of Conformity - CE
CE Declaration of Conformity - Contactor - AF400...AF2850
Declaration of Conformity - UKCA
UK Declaration of Conformity - Contactors >100A
DNV GL Certificate
DNV Certificate, Contactor, AF400...AF2850
EAC Certificate
9AKK107046A8618
LR Certificate
Lloyds register Certificate, Contactor, AF400...AF2850
PRS Certificate
PRS Certificate - AF116...AF1650
RINA Certificate
RINA Certificate, AF95, AF110, AF145, AF185, AF210, AF260, AF300, AF400, AF460, AF580, AF750, AF1250, AF1350, AF1650, AF2050, AF2650, AF116, AF140, AF146, AF190, AF205, AF265, AF305, AF370
RMRS Certificate
9AKK107045A6978
UL Certificate
cULus Certificate, Contactor, AF1350, AF1650, AF2050 (NLDX)
UL Listing Card
UL_E73397
Package Level 1 Width
555 mm
Package Level 1 Depth / Length
365 mm
Package Level 1 Height
500 mm
Package Level 1 Gross Weight
35 kg
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4755 >> Contactors
Feature → Business Impact → Application: Wide control voltage range (50 Hz 100-250 V; DC) minimizes the need for multiple coil variants, reducing inventory and panel design time while maintaining reliable pull-in across fluctuating networks. This translates to lower commissioning risk and faster startup in processes like packaging lines and material handling. Feature → Application: Built-in surge protection and AF block design support compact control cabinets; enables straightforward expansion with auxiliary contact blocks to tailor the logic for pumps, conveyors, and fans without overhauling enclosures. Feature → Business Impact → Application: Rated Operational Current AC-1 up to 1650 A and AC-3 up to 1060 A at 55 °C (220/230/240 V) provides ample headroom for high-inertia motors, reducing the need for oversized starter kits and delivering energy-efficiency gains in continuous operation. Feature → Application: Main circuit bars and 3P configuration simplify wiring and serviceability; compatible with AF accessories for quick upgrades, minimizing downtime during maintenance windows. Feature → Business Impact → Application: Coil consumption and power loss of 80 W per pole, with both AC and DC coil options, support lower heat generation in panels and improved overall system efficiency, benefitting thermal management in compact control rooms.
Get a Quick Quote for a ABB 1SFL677001R7000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFL677001R7000?
Enquire Now
FAQs
The AF1650-30-00-70 is a three-pole block contactor designed for panel mounting with main circuit bars. It supports modular extension via add-on auxiliary contact blocks and AF accessories, enabling easy upgrades without full disassembly. The footprint (438 mm wide, 244 mm deep, 392 mm high) and weight (33 kg) should be considered for rack space and crane lifting requirements, while the coil voltage range permits flexible drive integration in mixed-voltage environments.
Key ratings include main circuit voltage up to 1000 V, AC-1 current up to 1650 A, and AC-3 current up to 1060 A at 55 °C (varies with voltage). It supports a wide coil range of 100-250 V AC, plus DC, with coil power losses around 80 W per pole. Power handling covers multiple nominal voltages (415–1000 V) with corresponding rated powers from 315 kW to 1000 kW for AC-3 duty.
Yes. The AF1650-30-00-70 is certified for UL/CSA general use at 1650 A and rated for 1000 V, with CE declarations of conformity for ABB contactors in the AF series. Additional RoHS and REACH compliance ensure safer material usage and regulatory alignment across markets.
AF technology offers a wide control voltage range, reducing energy waste from control circuits and enabling stable operation in networks with voltage fluctuations. The block design and modular accessory system minimize panel footprint and wiring complexity, while built-in surge protection lowers the risk of circuit damage and downtime.
The AF1650-30-00-70 supports add-on auxiliary contact blocks and a broad range of AF accessories, enabling tailored control logic, status signaling, and remote diagnostics. Compatibility with standard AF formats simplifies upgrades and spare-part sourcing, reducing maintenance time and inventory needs.
