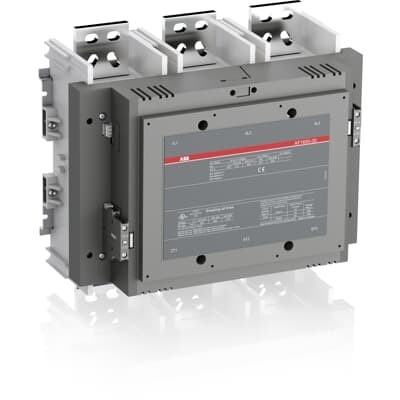

ABB 1SFL677001R7022 Block Contactor - 1000V UL/CSA
Part Number: 1SFL677001R7022
Quick Summary
ABB AF1650 block contactor is a three-pole motor switch used to protect and control large industrial motors. Engineers frequently contend with voltage variation and wasted energy in control panels, which AF technology helps mitigate by supporting a wide control voltage range of 100–250 V AC or DC. This device carries CE, UL/CSA, and UKCA certifications, reinforcing compliance across global markets, and features a compact AF block design with built-in surge protection. For system integrators and OEMs, the combination of scalable auxiliary blocks and reliable performance translates into lower installation costs and improved uptime in demanding industrial environments.
Product Information
Extended Description
1SFL677001R7022 ABB: The AF1650-30-22-70 is a 3 pole - 1000 V IEC or 1000 V UL contactor pre-mounted auxiliary contacts and and Main Circuit Bars, controlling motors up to 560 kW / 400 V AC (AC-3) or 900 hp / 480 V UL and switching power circuits up to 1650 A (AC-1) or 1650 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Data Sheet, Technical Information (Part 2)
Contactors and Overload relays guide
Instructions and Manuals
Operating instruction, Contactors AF1350, AF1650,AF2050
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Dimension Diagram
Dimension Drawing, Contactor, AF1350, AF1650
Product Net Width
438 mm
Product Net Depth / Length
244 mm
Product Net Height
392 mm
Product Net Weight
33 kg
Number of Main Contacts NO
3
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
2
Number of Auxiliary Contacts NC
2
Number of Poles
3P
Rated Operational Voltage
Main Circuit 1000 V
Rated Frequency (f)
Main Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (Ith)
acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 1650 A
Rated Operational Current AC-1 (Ie)
(1000 V) 40 °C 1650 A | (1000 V) 55 °C 1450 A | (1000 V) 70 °C 1270 A | (690 V) 40 °C 1650 A | (690 V) 55 °C 1450 A | (690 V) 70 °C 1270 A
Rated Operational Current AC-3 (Ie)
(1000 V) 55 °C 400 A | (220 / 230 / 240 V) 55 °C 1060 A
Rated Operational Current DC-1 (Ie)
(110 V) 1-Pole, 40 °C 1650 A | (110 V) 2 Poles in Series, 40 °C 1650 A | (220 V) 3 Poles in Series, 40 °C 1650 A | (600 V) 3 Poles in Series, 40 °C 1650 A | (850 V) 3 Poles in Series, 40 °C 1650 A
Rated Operational Power AC-3 (Pe)
(415 V) 630 kW | (440 V) 710 kW | (500 V) 710 kW | (690 V) 1000 kW | (1000 V) 600 kW | (380 / 400 V) 560 kW | (220 / 230 / 240 V) 315 kW
Rated Making Capacity AC-3
10 x Ie AC-3
Rated Short-time Withstand Current Low Voltage (Icw)
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 10000 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 2200 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 5500 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 12000 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 7500 A
Maximum Breaking Capacity
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 12000 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V | acc. to UL/CSA 1000 V
Rated Impulse Withstand Voltage (Uimp)
Main Circuit 8 kV
Maximum Electrical Switching Frequency
(AC-1) 60 cycles per hour | (AC-2 / AC-4) 60 cycles per hour | (AC-3) 60 cycles per hour
Mechanical Durability
0.5 million
Maximum Mechanical Switching Frequency
300 cycles per hour
Coil Operating Limits
(acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C)
Rated Control Circuit Voltage (Uc)
50 Hz 100 ... 250 V | 60 Hz 100 ... 250 V | DC Operation 100 ... 250 V
Coil Consumption
Holding at Max. Rated Control Circuit Voltage 50 Hz 48 V·A | Holding at Max. Rated Control Circuit Voltage 60 Hz 48 V·A | Holding at Max. Rated Control Circuit Voltage DC 20.5 V·A | Pull-in at Max. Rated Control Circuit Voltage 50 Hz 2450 V·A | Pull-in at Max. Rated Control Circuit Voltage 60 Hz 2450 V·A | Pull-in at Max. Rated Control Circuit Voltage DC 2290 V·A
Power Loss
at Rated Operating Conditions per Pole 80 W
Operate Time
Between Coil De-energization and NC Contact Closing 35 ... 55 ms | Between Coil De-energization and NO Contact Opening 35 ... 55 ms | Between Coil Energization and NC Contact Opening 50 ... 80 ms | Between Coil Energization and NO Contact Closing 50 ... 80 ms
Connecting Capacity Main Circuit
Bar 100 mm²
Connecting Capacity Auxiliary Circuit
Flexible with Ferrule 2x 0.75 ... 2.5 mm² | Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm² | Flexible 2x0.75 ... 2.5 mm² | Solid 2 x 1 ... 4 mm² | Stranded 2 x 1 .... 4 mm²
Connecting Capacity
Bar 100 mm²
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
Tightening Torque
Cable Lug 45 N·m
Terminal Type
Main Circuit: Bars
Product Name
Block Contactor
NEMA Size
8
Horsepower Rating NEMA
(230 V AC) Three Phase 450 Hp | (460 V AC) Three Phase 900 Hp | (575 V AC) Three Phase 900 Hp
Maximum Operating Voltage UL/CSA
Main Circuit 1000 V
General Use Rating UL/CSA
(1000 V AC) 1650 A | (600 V AC) 1650 A
Horsepower Rating UL/CSA
(220 ... 240 V AC) Three Phase 450 hp | (440 ... 480 V AC) Three Phase 900 hp | (550 ... 600 V AC) Three Phase 1150 hp
Full Load Amps Motor Use
(440 ... 480 V AC) Three Phase 1030 A | (550 ... 600 V AC) Three Phase 1050 A
Ambient Air Temperature
Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °C | Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C | Close to Contactor for Storage -40 ... 70 °C
Maximum Operating Altitude Permissible
Without Derating 3000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
End Of Life Disassembling Instructions
End-of-life instruction - AF1350(B)(T), AF1650(B)(T), AF1650N8, AF2050(B)(T), AF2650(B)(T), AF2850(B)(T)
Environmental Product Declaration - EPD
Environmental product declaration AF1350(T), AF1650(T)(N), AF2050(T), AF2650(T), AF2850 (SE) | Environmental product declaration AF1350, AF1650, AF2050, AF2650 (CN) Contactors
ABS Certificate
ABS Certificate, Contactor, AF400...AF2050 (Sweden)
BV Certificate
BV Certificate, Contactor, AF400 ... AF2850
CB Certificate
SEMKO_SE-74013
CCS Certificate
CCS Certificate, Contactor, AF116 to AF2850 (Sweden)
CQC Certificate
CQC Certificate, AC Contactor, AF1350-30-*-*, AF1650-30-*-*, AF2050-30-*-*, AF1350T-30-*-*, AF1650T-30-*-*, AF2050T-30-*-*, Made in Sweden | CQC Certificate, Contactor, AF1350, AF1650, AF2050, Made in China
Declaration of Conformity - CCC
CCC Declaration of Conformity, AC Contactor, AF1350-30-*-*, AF1650-30-*-*, AF2050-30-*-*, AF1350T-30-*-*, AF1650T-30-*-*, AF2050T-30-*-*, Made in Sweden | CCC Declaration of Conformity, Contactor, AF1350, AF1650, AF2050, Made in China
Declaration of Conformity - CE
CE Declaration of Conformity - Contactor - AF400...AF2850
Declaration of Conformity - UKCA
UK Declaration of Conformity - Contactors >100A
DNV GL Certificate
DNV Certificate, Contactor, AF400...AF2850
EAC Certificate
9AKK107046A8618
GL Certificate
GL_20263-04HH
LOVAG Certificate
SE-201993
LR Certificate
Lloyds register Certificate, Contactor, AF400...AF2850
PRS Certificate
PRS Certificate - AF116...AF1650
RINA Certificate
RINA Certificate, AF95, AF110, AF145, AF185, AF210, AF260, AF300, AF400, AF460, AF580, AF750, AF1250, AF1350, AF1650, AF2050, AF2650, AF116, AF140, AF146, AF190, AF205, AF265, AF305, AF370
RMRS Certificate
9AKK107045A6978
UL Certificate
cULus Certificate, Contactor, AF1350, AF1650, AF2050 (NLDX)
UL Listing Card
UL_E73397
Package Level 1 Units
box 1 piece
Package Level 1 Width
555 mm
Package Level 1 Depth / Length
365 mm
Package Level 1 Height
500 mm
Package Level 1 Gross Weight
35 kg
Package Level 1 EAN
7320500249710
Package Level 2 Units
1 piece
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4758 >> Iec Contactors
E-Number (Finland)
3707165
Wide control voltage range (100-250 V AC/DC) → Stabilizes control signals and reduces energy waste in fluctuating networks, enabling reliable start-ups in automation lines. This translates to better uptime and lower energy costs in conveyors, pumps, and presses. Compatible with add-on auxiliary contact blocks → Easy expansion of control logic without replacing the main device, lowering total installed cost and simplifying panel wiring in machine builders. High current ratings (AC-1 up to 1650 A, AC-3 up to 400 A at 1000 V) → Supports large motors and heavy loads (up to 560 kW at 400 V AC), delivering robust performance in heavy machinery. Block design with main circuit bars and pre-mounted auxiliary contacts → Reduces assembly time and cabinet footprint, improving assembly efficiency in panel houses and OEM assemblies. Built-in surge protection and IP65-like protection in critical areas → Enhances protection against voltage spikes and harsh environments, minimizing protective cabinet requirements. Durable construction with 0.5 million mechanical operations and 60 cycles per hour capacity → Extends service life and reduces maintenance intervals in continuous-operation applications.
Get a Quick Quote for a ABB 1SFL677001R7022
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFL677001R7022?
Enquire Now
FAQs
The AF1650-30-22-70 supports coil voltages from 100 to 250 V across AC and DC. For wiring, connect the control circuit to the coil terminals and use the robust main circuit bars for 1000 V nominal operation. When panel voltage varies, the wide coil range maintains reliable pull-in and holding, reducing mis-starts and wear. Use the provided auxiliary contact blocks to tailor interlocking or feedback signals to your PLC or safety relays.
Rated Operational Current AC-1 at 1000 V is up to 1650 A under 40 °C, with reductions at higher ambient temperatures. AC-3 current at 1000 V is 400 A (55 °C). The device can switch motors up to about 560 kW at 400 V AC (AC-3) and up to higher UL ratings for certain configurations, supporting large motors in metalworking, pumps, and HVAC systems.
Yes. The AF1650-30-22-70 uses a block design that is easily extended with add-on auxiliary contact blocks. This enables expanded control logic, status feedback, and interlocking without redesigning the main assembly. It simplifies wiring, reduces panel height, and supports scalable control architectures for evolving machines.
Key certifications include CE Declarations of Conformity, UL/CSA listings for general use up to 1650 A, and UKCA compliance. The product also aligns with RoHS, REACH, and WEEE requirements for modern industrial equipment. Tracking these certifications ensures global market eligibility and safer, regulation-compliant installations.
Plan for a robust mechanical footprint: 438 mm width, 244 mm depth, 392 mm height, and 33 kg weight. Ensure proper torque on main circuit lugs (roughly 45 N·m) and provide adequate cooling for ambient extremes (-25 to 70 °C). Use the wide control voltage tolerance to reduce inventory variety, and leverage the built-in surge protection to minimize panel protection costs and downtime.
