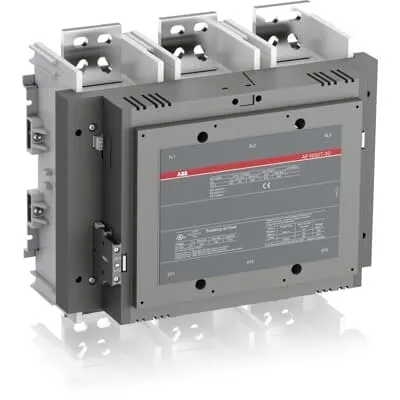

ABB 1SFL677001R9104 Block Contactor - AF1650T CE
Part Number: 1SFL677001R9104
Quick Summary
ABB Block Contactor 1SFL677001R9104 provides reliable motor control for heavy-duty conveyors and pumps. In production environments, voltage fluctuations and inconsistent control signals can cause nuisance trips and wasted energy. This device embraces robust AF technology and a broad control voltage range (230-240 V, 50/60 Hz) to maintain stable operation even in unstable networks. It carries a CE declaration and UL/CSA listings, with UKCA and other certificates in the broader ABB portfolio, ensuring compliance across markets. Designed for IEC 60947-4-1, this 3-pole block contactor supports modular extension and auxiliary contacts, reducing panel space and wiring complexity while delivering dependable protection and lower energy consumption. The result is improved uptime, easier maintenance, and lower total cost of ownership for industrial motor circuits.
Product Information
Extended Description
1SFL677001R9104 ABB: The AF1650T-30-11 230-240V 50/60Hz is a 3 pole - 1000 V IEC or 1000 V UL contactor pre-mounted auxiliary contacts and and Main Circuit Bars, controlling motors up to 560 kW / 400 V AC (AC-3) or 900 hp / 480 V UL and switching power circuits up to 1650 A (AC-1) or 1650 A UL general use. Thanks to the AF technology, the contactor has control voltage range (230-240 V 50/60 Hz), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Product does not contain any mounting kit.
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Data Sheet, Technical Information (Part 2)
Contactors and Overload relays guide
Instructions and Manuals
Operating instruction, Contactors AF1350, AF1650,AF2050
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Dimension Diagram
Dimension Drawing, Contactor, AF1350, AF1650
Product Net Width
438 mm
Product Net Depth / Length
244 mm
Product Net Height
392 mm
Product Net Weight
33 kg
Number of Main Contacts NO
3
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
1
Number of Auxiliary Contacts NC
1
Number of Poles
3P
Rated Operational Voltage
Main Circuit 1000 V
Rated Frequency (f)
Main Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (Ith)
acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 1650 A
Rated Operational Current AC-1 (Ie)
(1000 V) 40 °C 1650 A | (1000 V) 55 °C 1450 A | (1000 V) 70 °C 1270 A | (690 V) 40 °C 1650 A | (690 V) 55 °C 1450 A | (690 V) 70 °C 1270 A
Rated Operational Current AC-3 (Ie)
(1000 V) 55 °C 400 A | (220 / 230 / 240 V) 55 °C 1060 A
Rated Operational Current DC-1 (Ie)
(110 V) 1-Pole, 40 °C 1650 A | (110 V) 2 Poles in Series, 40 °C 1650 A | (220 V) 3 Poles in Series, 40 °C 1650 A | (600 V) 3 Poles in Series, 40 °C 1650 A | (850 V) 3 Poles in Series, 40 °C 1650 A
Rated Operational Power AC-3 (Pe)
(415 V) 630 kW | (440 V) 710 kW | (500 V) 710 kW | (690 V) 1000 kW | (1000 V) 600 kW | (380 / 400 V) 560 kW | (220 / 230 / 240 V) 315 kW
Rated Making Capacity AC-3
10 x Ie AC-3
Maximum Breaking Capacity
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 12000 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V | acc. to UL/CSA 1000 V
Rated Impulse Withstand Voltage (Uimp)
Main Circuit 8 kV
Maximum Electrical Switching Frequency
(AC-1) 60 cycles per hour | (AC-2 / AC-4) 60 cycles per hour | (AC-3) 60 cycles per hour
Mechanical Durability
0.5 million
Maximum Mechanical Switching Frequency
300 cycles per hour
Coil Operating Limits
(acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C)
Rated Control Circuit Voltage (Uc)
50 Hz 230 ... 240 V | 60 Hz 230 ... 240 V
Coil Consumption
Holding at Max. Rated Control Circuit Voltage 50 Hz 48 V·A | Holding at Max. Rated Control Circuit Voltage 60 Hz 48 V·A | Holding at Max. Rated Control Circuit Voltage DC 20.5 V·A | Pull-in at Max. Rated Control Circuit Voltage 50 Hz 2450 V·A | Pull-in at Max. Rated Control Circuit Voltage 60 Hz 2450 V·A | Pull-in at Max. Rated Control Circuit Voltage DC 2290 V·A
Power Loss
at Rated Operating Conditions per Pole 80 W
Operate Time
Between Coil De-energization and NC Contact Closing 35 ... 55 ms | Between Coil De-energization and NO Contact Opening 35 ... 55 ms | Between Coil Energization and NC Contact Opening 50 ... 80 ms | Between Coil Energization and NO Contact Closing 50 ... 80 ms
Connecting Capacity Main Circuit
Bar 100 mm²
Connecting Capacity Auxiliary Circuit
Flexible with Ferrule 1x 0.75 ... 2.5 mm² | Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm² | Flexible 2x0.75 ... 2.5 mm² | Solid 2 x 1 ... 4 mm² | Stranded 2 x 1 .... 4 mm²
Connecting Capacity
Bar 100 mm²
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
Tightening Torque
Cable Lug 45 N·m
Terminal Type
Main Circuit: Bars
Product Name
Block Contactor
NEMA Size
8
Horsepower Rating NEMA
(230 V AC) Three Phase 450 Hp | (460 V AC) Three Phase 900 Hp | (575 V AC) Three Phase 900 Hp
Maximum Operating Voltage UL/CSA
Main Circuit 600 V
General Use Rating UL/CSA
(1000 V AC) 1650 A | (600 V AC) 1650 A
Horsepower Rating UL/CSA
(220 ... 240 V AC) Three Phase 450 hp | (440 ... 480 V AC) Three Phase 900 hp | (550 ... 600 V AC) Three Phase 1150 hp
Full Load Amps Motor Use
(440 ... 480 V AC) Three Phase 1030 A | (550 ... 600 V AC) Three Phase 1050 A
Ambient Air Temperature
Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °C | Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C | Close to Contactor for Storage -40 ... 70 °C
Maximum Operating Altitude Permissible
Without Derating 3000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
End Of Life Disassembling Instructions
End-of-life instruction - AF1350(B)(T), AF1650(B)(T), AF1650N8, AF2050(B)(T), AF2650(B)(T), AF2850(B)(T)
Environmental Product Declaration - EPD
Environmental product declaration AF1350(T), AF1650(T)(N), AF2050(T), AF2650(T), AF2850 (SE)
ABS Certificate
ABS Certificate, Contactor, AF400...AF2050 (Sweden)
BV Certificate
BV Certificate, Contactor, AF400 ... AF2850
CB Certificate
SEMKO_SE-74013
CCS Certificate
CCS Certificate, Contactor, AF116 to AF2850 (Sweden)
CQC Certificate
CQC Certificate, AC Contactor, AF1350-30-*-*, AF1650-30-*-*, AF2050-30-*-*, AF1350T-30-*-*, AF1650T-30-*-*, AF2050T-30-*-*, Made in Sweden
Declaration of Conformity - CCC
CCC Declaration of Conformity, AC Contactor, AF1350-30-*-*, AF1650-30-*-*, AF2050-30-*-*, AF1350T-30-*-*, AF1650T-30-*-*, AF2050T-30-*-*, Made in Sweden
Declaration of Conformity - CE
CE Declaration of Conformity - Contactor - AF400...AF2850
Declaration of Conformity - UKCA
UK Declaration of Conformity - Contactors >100A
DNV GL Certificate
DNV Certificate, Contactor, AF400...AF2850
EAC Certificate
9AKK107046A8618
GL Certificate
GL_20263-04HH
LOVAG Certificate
SE-201993
LR Certificate
Lloyds register Certificate, Contactor, AF400...AF2850
RINA Certificate
RINA Certificate, AF95, AF110, AF145, AF185, AF210, AF260, AF300, AF400, AF460, AF580, AF750, AF1250, AF1350, AF1650, AF2050, AF2650, AF116, AF140, AF146, AF190, AF205, AF265, AF305, AF370
UL Certificate
cULus Certificate, Contactor, AF1350, AF1650, AF2050 (NLDX)
Package Level 1 Units
box 1 piece
Package Level 1 Width
555 mm
Package Level 1 Depth / Length
365 mm
Package Level 1 Height
500 mm
Package Level 1 Gross Weight
35 kg
Package Level 1 EAN
7320500480366
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4755 >> Contactors
