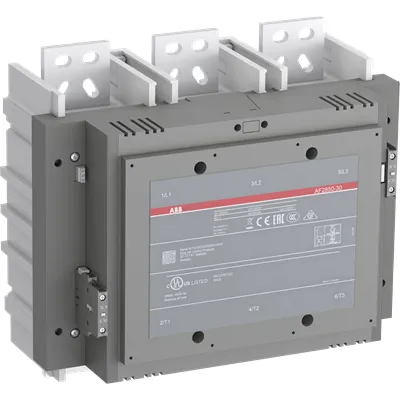

ABB AF2850-30-22-70 Contactor - 1000 V UL/CE

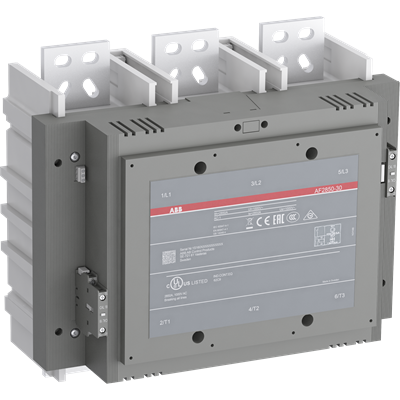

Part Number: 1SFL687001R7022
Quick Summary
ABB AF2850-30-22-70 Contactor is a high-capacity three-pole device designed for motor starters in industrial automation. It enables reliable switching of power circuits up to 2850 A (AC-1) at 1000 V, with pre-mounted auxiliary contacts for compact panel layouts. In challenging electrical environments, voltage fluctuations and unstable networks can cause nuisance trips; AF technology accommodates a wide control voltage range (100–250 V AC, 50/60 Hz, and DC) to maintain stable operation and reduce energy waste. This family delivers built‑in surge protection and a block-type design that simplifies extension with add-on auxiliary blocks and accessories. Compliance with key standards (CE, UL/CSA, UKCA) supports global deployments, while IP20 coil terminals and IP00 main terminals ensure safe, robust installations. This delivers business value by improving uptime and simplifying maintenance in motor control applications, with scalable expansion options.
Product Information
Extended Description
1SFL687001R7022 ABB: The AF2850-30-22-70 is a 3 pole - 1000 V IEC or 1000 V UL contactor with pre-mounted auxiliary contacts and Main Circuit Bars, switching power circuits up to 2850 A (AC-1) or 2850 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Data Sheet, Technical Information (Part 2)
Contactors and Overload relays guide
Instructions and Manuals
Operating instruction, Contactors AF2650(T), AF2850(T)
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
438 mm
Product Net Depth / Length
244 mm
Product Net Height
422 mm
Product Net Weight
43 kg
Number of Main Contacts NO
3
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
2
Number of Auxiliary Contacts NC
2
Number of Poles
3P
Rated Operational Voltage
Main Circuit 1000 V
Rated Frequency (f)
Main Circuit 60 Hz
Conventional Free-air Thermal Current (Ith)
acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 2850 A
Rated Operational Current AC-1 (Ie)
(1000 V) 40 °C 2850 A | (1000 V) 55 °C 2600 A | (1000 V) 70 °C 2300 A | (690 V) 40 °C 2850 A | (690 V) 55 °C 2600 A | (690 V) 70 °C 2300 A
Rated Short-time Withstand Current Low Voltage (Icw)
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 10000 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 3000 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 5500 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 12000 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 7500 A
Maximum Breaking Capacity
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 8400 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V | acc. to UL/CSA 1000 V
Rated Impulse Withstand Voltage (Uimp)
8 kV
Maximum Electrical Switching Frequency
(AC-1) 15 cycles per hour
Mechanical Durability
0.3 million
Maximum Mechanical Switching Frequency
60 cycles per hour
Coil Operating Limits
(acc. to IEC 60947-4-1) 0.85 ... 1.1 x Uc (at θ ≤ 70 °C)
Rated Control Circuit Voltage (Uc)
50 Hz 100 ... 250 V | 60 Hz 100 ... 250 V | DC Operation 100 ... 250 V
Coil Consumption
Holding at Max. Rated Control Circuit Voltage 50 Hz 48 V·A | Holding at Max. Rated Control Circuit Voltage 60 Hz 48 V·A | Holding at Max. Rated Control Circuit Voltage DC 20.5 W | Pull-in at Max. Rated Control Circuit Voltage 50 Hz 2450 V·A | Pull-in at Max. Rated Control Circuit Voltage 60 Hz 2540 V·A | Pull-in at Max. Rated Control Circuit Voltage DC 2290 W
Power Loss
at Rated Operating Conditions per Pole 200 W
Operate Time
Between Coil De-energization and NC Contact Closing 35 ... 55 ms | Between Coil De-energization and NO Contact Opening 35 ... 55 ms | Between Coil Energization and NC Contact Opening 50 ... 80 ms | Between Coil Energization and NO Contact Closing 50 ... 80 ms
Connecting Capacity Main Circuit
Bar 100 mm²
Connecting Capacity Auxiliary Circuit
Flexible with Ferrule 2x 0.75 ... 2.5 mm² | Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm² | Flexible 2x0.75 ... 2.5 mm² | Solid 2 x 1 ... 4 mm² | Stranded 2 x 1 .... 4 mm²
Connecting Capacity
Bar 100 mm²
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
Terminal Type
Screw Terminals
Product Name
Block Contactor
Maximum Operating Voltage UL/CSA
Main Circuit 1000 V
General Use Rating UL/CSA
(1000 V AC) 2850 A | (600 V AC) 2850 A
Ambient Air Temperature
Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °C | Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C | Close to Contactor for Storage -40 ... 70 °C
Maximum Operating Altitude Permissible
Without Derating 3000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
End Of Life Disassembling Instructions
End-of-life instruction - AF1350(B)(T), AF1650(B)(T), AF1650N8, AF2050(B)(T), AF2650(B)(T), AF2850(B)(T)
Environmental Product Declaration - EPD
Environmental product declaration AF1350(T), AF1650(T)(N), AF2050(T), AF2650(T), AF2850 (SE)
CB Certificate
SEMKO_SE70500M1
CQC Certificate
CQC Certificate, AC Contactor, AF2650-30-*-*, AF2650T-30-*-*, AF2850-30-*-*, AF2850T-30-*-*, Made in Sweden
Declaration of Conformity - CCC
CCC Declaration of Conformity, AC Contactor, AF2650-30-*-*, AF2650T-30-*-*, AF2850-30-*-*, AF2850T-30-*-*, Made in Sweden
Declaration of Conformity - CE
CE Declaration of Conformity - Contactor - AF400...AF2850
Declaration of Conformity - UKCA
UK Declaration of Conformity - Contactors >100A
EAC Certificate
9AKK107046A8618
LR Certificate
Lloyds register Certificate, Contactor, AF400...AF2850
UL Certificate
cULus Certificate, Contactor, AF2650...AF2850
Package Level 1 Units
box 1 piece
Package Level 1 Width
555 mm
Package Level 1 Depth / Length
365 mm
Package Level 1 Height
500 mm
Package Level 1 Gross Weight
45 kg
Package Level 1 EAN
7320500515105
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4755 >> Contactors
Feature: Three-pole main contacts (NO) totaling three poles, plus two NO and two NC auxiliary contacts. Business Impact: Enables high-current, multi-pole switching in a single device, reducing wiring and panel space. Application: Large motor drives and centralized control where compact footprint matters. Feature: AF technology with a wide control voltage range (100–250 V for AC 50/60 Hz and DC). Business Impact: Tolerates control-voltage variations and saves energy by avoiding unnecessary panel power draw. Application: Control cabinets in environments with fluctuating supply quality. Feature: Built-in surge protection. Business Impact: Lowers external protection requirements and extends component life in surge-prone installations. Application: Industrial automation lines with unstable mains. Feature: Block-type design with expandable auxiliary blocks. Business Impact: Scales easily to larger control schemes without complex rewiring. Application: Motor control centers and modular installations where future expansion is expected. Feature: Rated insulation voltage of 1000 V and 60 Hz operation. Business Impact: Ensures reliable performance in high-voltage motor circuits and compliance with standard IEC/UL requirements. Application: Heavy-duty motor starters for conveyors, pumps, and fans. Feature: Robust electrical ratings (Ie up to 2850 A at 40 °C; Icw up to 12 kA short-time). Business Impact: Supports demanding load profiles with clear safety margins. Application: High‑duty cycle machinery in process lines.
Get a Quick Quote for a ABB 1SFL687001R7022
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFL687001R7022?
Enquire Now
FAQs
This contactor is a 3-pole device with 3 main NO contacts and 2 NO/2 NC auxiliary contacts, designed for 1000 V systems. It uses screw terminals for both main and auxiliary circuits and accepts 100 mm² main conductors. For installations, ensure panel space for a block-type unit, plan for compatible add-on auxiliary blocks, and verify control wiring within the 100–250 V AC/DC range to avoid misoperation.
Rated operational current Ie is up to 2850 A at 40 °C (depending on voltage). The contactor provides short-time withstand current Icw values up to 10000 A for 10 s, 3000 A for 15 min, 5500 A for 1 min, and 12000 A for 1 s, with de-energized coil temperatures remaining within limits. These figures support reliable motor starting and protection in demanding duty cycles.
Yes. With three main NO contacts rated up to 2850 A at 40 °C, integrated auxiliary contacts, and 1000 V insulation, this block contactor is well suited for heavy motor drives in conveyors, pumps, and fans. The AF technology provides voltage tolerance and energy efficiency, while built‑in surge protection reduces external protection needs and simplifies system design.
The AF2850-30-22-70 carries CE and UL/CSA certifications, with additional documentation for UKCA, EAC, LR, CCC, and other compliance marks. These approvals support global product deployment, safety validation, and regulatory adherence in industrial environments, ensuring customers meet international procurement standards and asset integrity requirements.
AF technology reduces energy waste through a wide control voltage range and minimizes external protection components thanks to built‑in surge protection. The block design simplifies expansion, lowering wiring and maintenance complexity in large panels. Combined, these factors can shorten commissioning time, extend service intervals, and deliver measurable uptime gains in continuous operation applications.
