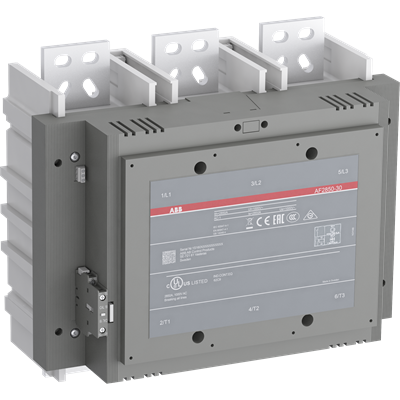

ABB 1SFL687001R9101 Block Contactor - UL/CE Certified
Part Number: 1SFL687001R9101
Quick Summary
ABB 1SFL687001R9101 block contactor is a three-pole motor control device for heavy loads in industrial panels. Maintainers frequently face voltage swings that cause nuisance trips and wasted energy. It carries CE and UL/CSA listings, with UKCA and other approvals where required, enabling broad market compliance. Designed for panel builders and machine integrators, it blends AF technology, surge protection, and accessories to improve reliability and reduce total cost of ownership. With a wide control voltage range of 230-240 V and a durable 1000 V insulation rating, it accommodates common industrial power conditions. Its robust 2850 A rating at 40 °C and extendable auxiliary block options support scalable automation projects.
Product Information
Extended Description
1SFL687001R9101 ABB: The AF2850T-30-11 230-240V 50/60Hz is a 3 pole - 1000 V IEC or 1000 V UL contactor with pre-mounted auxiliary contacts and Main Circuit Bars, switching power circuits up to 2850 A (AC-1) or 2850 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (230-240 V 50/60 Hz), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Data Sheet, Technical Information (Part 2)
Contactors and Overload relays guide
Instructions and Manuals
Operating instruction, Contactors AF2650(T), AF2850(T)
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
438 mm
Product Net Depth / Length
244 mm
Product Net Height
422 mm
Product Net Weight
43 kg
Number of Main Contacts NO
3
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
2
Number of Auxiliary Contacts NC
2
Number of Poles
3P
Rated Operational Voltage
Main Circuit 1000 V
Rated Frequency (f)
Main Circuit 60 Hz
Conventional Free-air Thermal Current (Ith)
acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 2850 A
Rated Operational Current AC-1 (Ie)
(1000 V) 40 °C 2850 A | (1000 V) 55 °C 2600 A | (1000 V) 70 °C 2300 A | (690 V) 40 °C 2850 A | (690 V) 55 °C 2600 A | (690 V) 70 °C 2300 A
Rated Short-time Withstand Current Low Voltage (Icw)
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 10000 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 3000 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 5500 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 12000 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 7500 A
Maximum Breaking Capacity
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 8400 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V | acc. to UL/CSA 1000 V
Rated Impulse Withstand Voltage (Uimp)
8 kV
Maximum Electrical Switching Frequency
(AC-1) 15 cycles per hour
Mechanical Durability
0.3 million
Maximum Mechanical Switching Frequency
60 cycles per hour
Coil Operating Limits
(acc. to IEC 60947-4-1) 0.85 ... 1.1 x Uc (at θ ≤ 70 °C)
Rated Control Circuit Voltage (Uc)
50 Hz 230 ... 240 V | 60 Hz 230...240 V | DC Operation 230 ... 240 V
Coil Consumption
Holding at Max. Rated Control Circuit Voltage 50 Hz 48 V·A | Holding at Max. Rated Control Circuit Voltage 60 Hz 48 V·A | Holding at Max. Rated Control Circuit Voltage DC 20.5 W | Pull-in at Max. Rated Control Circuit Voltage 50 Hz 2450 V·A | Pull-in at Max. Rated Control Circuit Voltage 60 Hz 2540 V·A | Pull-in at Max. Rated Control Circuit Voltage DC 2290 W
Power Loss
at Rated Operating Conditions per Pole 200 W
Operate Time
Between Coil De-energization and NC Contact Closing 35 ... 55 ms | Between Coil De-energization and NO Contact Opening 35 ... 55 ms | Between Coil Energization and NC Contact Opening 50 ... 80 ms | Between Coil Energization and NO Contact Closing 50 ... 80 ms
Connecting Capacity Main Circuit
Bar 100 mm²
Connecting Capacity Auxiliary Circuit
Flexible with Ferrule 2x 0.75 ... 2.5 mm² | Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm² | Flexible 2x0.75 ... 2.5 mm² | Solid 2 x 1 ... 4 mm² | Stranded 2 x 1 .... 4 mm²
Connecting Capacity
Bar 100 mm²
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
Terminal Type
Screw Terminals
Product Name
Block Contactor
Maximum Operating Voltage UL/CSA
Main Circuit 1000 V
General Use Rating UL/CSA
(1000 V AC) 2850 A | (600 V AC) 2850 A
Ambient Air Temperature
Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °C | Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C | Close to Contactor for Storage -40 ... 70 °C
Maximum Operating Altitude Permissible
Without Derating 3000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
End Of Life Disassembling Instructions
End-of-life instruction - AF1350(B)(T), AF1650(B)(T), AF1650N8, AF2050(B)(T), AF2650(B)(T), AF2850(B)(T)
Environmental Product Declaration - EPD
Environmental product declaration AF1350(T), AF1650(T)(N), AF2050(T), AF2650(T), AF2850 (SE)
CB Certificate
SEMKO_SE70500M1
CQC Certificate
CQC Certificate, AC Contactor, AF2650-30-*-*, AF2650T-30-*-*, AF2850-30-*-*, AF2850T-30-*-*, Made in Sweden
Declaration of Conformity - CCC
CCC Declaration of Conformity, AC Contactor, AF2650-30-*-*, AF2650T-30-*-*, AF2850-30-*-*, AF2850T-30-*-*, Made in Sweden
Declaration of Conformity - CE
CE Declaration of Conformity - Contactor - AF400...AF2850
Declaration of Conformity - UKCA
UK Declaration of Conformity - Contactors >100A
EAC Certificate
9AKK107046A8618
UL Certificate
cULus Certificate, Contactor, AF2650...AF2850
Package Level 1 Units
box 1 piece
Package Level 1 Width
555 mm
Package Level 1 Depth / Length
365 mm
Package Level 1 Height
500 mm
Package Level 1 Gross Weight
45 kg
Package Level 1 EAN
7320500515433
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4755 >> Contactors
Feature AF technology provides a wide control voltage range of 230-240 V, reducing control voltage sensitivity and enabling stable operation across fluctuating networks → This translates to improved motor startup reliability and lower panel energy waste in manufacturing settings → Applied in automated conveyors and processing lines. Feature Three main NO contacts and two NO plus two NC auxiliary contacts in a compact 3P block contactor design → Business impact includes streamlined wiring, reduced part count, and easier diagnostics in machine control panels → Ideal for machine tools and packaging lines requiring clear interlock logic. Feature Built-in surge protection and main circuit bars up to 100 mm² → Application advantage is enhanced protection against transient events, reducing panel protection hardware and maintenance costs → Common in outdoor or warehouse environments with electrical noise. Feature 1000 V insulation rating and high-rated operational current (Ie up to 2850 A at 40 °C) → Benefit is capability to switch large motor loads with confidence, minimizing replacement cycles → Suitable for large pumps, fans, and heavy conveyors. Feature Screw terminals for main circuit, flexible auxiliary wiring (2x 0.75–2.5 mm², solid 2×1–4 mm²) and compatible add-on auxiliary blocks → Installation convenience and future-proofing, enabling straightforward field upgrades and simplified schematics. Feature Compliance footprint including RoHS/REACH and environmental declarations → Ensures regulatory alignment for global manufacturing and export → Reduces compliance risk during audits and customer reviews.
