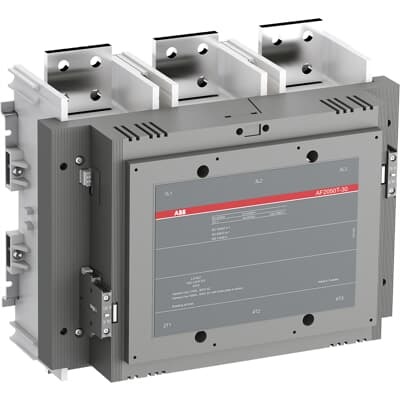

ABB AF2050T-30-11 Contactor - CE & UL Certified
Part Number: 1SFL707001R9101
Quick Summary
ABB AF2050T-30-11 Contactor is a high-capacity three-pole switch designed for motor control in demanding industrial environments. It addresses panel reliability challenges by tolerating wide control voltage variations, reducing nuisance trips and energy waste. This solution carries CE and UL/CSA certifications, plus UKCA and additional compliance declarations, supporting global deployment. With pre-mounted auxiliary contacts and main circuit bars, it enables rapid commissioning and scalable control cabinet design, while AF technology delivers dependable performance across fluctuating power networks, delivering measurable efficiency and uptime gains for your production lines.
Product Information
Extended Description
1SFL707001R9101 ABB: The AF2050T-30-11 230-240V 50/60Hz is a 3 pole - 1000 V IEC or 1000 V UL contactor with pre-mounted auxiliary contacts and Main Circuit Bars, switching power circuits up to 2050 A (AC-1) or 2100 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (230-240 V 50/60 Hz), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Data Sheet, Technical Information (Part 2)
Contactors and Overload relays guide
Instructions and Manuals
Operating instruction, Contactors AF1350, AF1650,AF2050
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Dimension Diagram
Dimension Drawing, Contactor, AF1350, AF1650
Product Net Width
438 mm
Product Net Depth / Length
244 mm
Product Net Height
392 mm
Product Net Weight
33 kg
Number of Main Contacts NO
3
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
1
Number of Auxiliary Contacts NC
1
Number of Poles
3P
Rated Operational Voltage
Main Circuit 1000 V
Rated Frequency (f)
Main Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (Ith)
acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 2050 A
Rated Operational Current AC-1 (Ie)
(1000 V) 40 °C 2050 A | (1000 V) 55 °C 1750 A | (1000 V) 70 °C 1500 A | (690 V) 40 °C 2050 A | (690 V) 55 °C 1750 A | (690 V) 70 °C 1500 A
Rated Operational Current AC-3 (Ie)
(1000 V) 55 °C 425 A | (220 / 230 / 240 V) 55 °C 1060 A
Rated Operational Current DC-1 (Ie)
(220 V) 3 Poles in Series, 40 °C 2050 A | (600 V) 3 Poles in Series, 40 °C 2050 A | (850 V) 3 Poles in Series, 40 °C 2050 A
Rated Operational Power AC-3 (Pe)
(415 V) 630 kW | (440 V) 710 kW | (690 V) 1000 kW | (1000 V) 630 kW
Rated Breaking Capacity AC-3
8 x Ie AC-3
Rated Making Capacity AC-3
10 x Ie AC-3
Rated Short-time Withstand Current Low Voltage (Icw)
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 10000 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 2200 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 5500 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 12000 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 7500 A
Maximum Breaking Capacity
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 12000 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V | acc. to UL/CSA 1000 V
Rated Impulse Withstand Voltage (Uimp)
Main Circuit 8 kV
Maximum Electrical Switching Frequency
(AC-1) 60 cycles per hour
Mechanical Durability
0.5 million
Maximum Mechanical Switching Frequency
300 cycles per hour
Coil Operating Limits
(acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C)
Rated Control Circuit Voltage (Uc)
50 Hz 230 ... 240 V | 60 Hz 230 ... 240 V | DC Operation 230 ... 240 V
Coil Consumption
Holding at Max. Rated Control Circuit Voltage 50 Hz 48 V·A | Holding at Max. Rated Control Circuit Voltage 60 Hz 48 V·A | Holding at Max. Rated Control Circuit Voltage DC 20.5 V·A | Pull-in at Max. Rated Control Circuit Voltage 50 Hz 2450 V·A | Pull-in at Max. Rated Control Circuit Voltage 60 Hz 2450 V·A | Pull-in at Max. Rated Control Circuit Voltage DC 2290 V·A
Power Loss
at Rated Operating Conditions per Pole 125 W
Operate Time
Between Coil De-energization and NC Contact Closing 35 ... 55 ms | Between Coil De-energization and NO Contact Opening 35 ... 55 ms | Between Coil Energization and NC Contact Opening 50 ... 80 ms | Between Coil Energization and NO Contact Closing 50 ... 80 ms
Connecting Capacity Main Circuit
Bar 100 mm²
Connecting Capacity Auxiliary Circuit
Flexible with Ferrule 2x 0.75 ... 2.5 mm² | Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm² | Flexible 2x0.75 ... 2.5 mm² | Solid 2 x 1 ... 4 mm² | Stranded 2 x 1 .... 4 mm²
Connecting Capacity
Bar 100 mm²
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
Tightening Torque
Cable Lug 45 N·m
Terminal Type
Main Circuit: Bars
Product Name
Block Contactor
Maximum Operating Voltage UL/CSA
Main Circuit 600 V
General Use Rating UL/CSA
(1000 V AC) 2100 A | (600 V AC) 2100 A
Ambient Air Temperature
Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °C | Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C | Close to Contactor for Storage -40 ... 70 °C
Maximum Operating Altitude Permissible
Without Derating 3000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
End Of Life Disassembling Instructions
End-of-life instruction - AF1350(B)(T), AF1650(B)(T), AF1650N8, AF2050(B)(T), AF2650(B)(T), AF2850(B)(T)
Environmental Product Declaration - EPD
Environmental product declaration AF1350(T), AF1650(T)(N), AF2050(T), AF2650(T), AF2850 (SE)
ABS Certificate
ABS Certificate, Contactor, AF400...AF2050 (Sweden)
BV Certificate
BV Certificate, Contactor, AF400 ... AF2850
CB Certificate
SEMKO_SE-74013
CCS Certificate
CCS Certificate, Contactor, AF116 to AF2850 (Sweden)
CQC Certificate
CQC Certificate, AC Contactor, AF1350-30-*-*, AF1650-30-*-*, AF2050-30-*-*, AF1350T-30-*-*, AF1650T-30-*-*, AF2050T-30-*-*, Made in Sweden
Declaration of Conformity - CCC
CCC Declaration of Conformity, AC Contactor, AF1350-30-*-*, AF1650-30-*-*, AF2050-30-*-*, AF1350T-30-*-*, AF1650T-30-*-*, AF2050T-30-*-*, Made in Sweden
Declaration of Conformity - CE
CE Declaration of Conformity - Contactor - AF400...AF2850
Declaration of Conformity - UKCA
UK Declaration of Conformity - Contactors >100A
EAC Certificate
9AKK107046A8618
LR Certificate
Lloyds register Certificate, Contactor, AF400...AF2850
RINA Certificate
RINA Certificate, AF95, AF110, AF145, AF185, AF210, AF260, AF300, AF400, AF460, AF580, AF750, AF1250, AF1350, AF1650, AF2050, AF2650, AF116, AF140, AF146, AF190, AF205, AF265, AF305, AF370
RMRS Certificate
9AKK107045A6978
UL Certificate
cULus Certificate, Contactor, AF1350, AF1650, AF2050 (NLDX)
Package Level 1 Units
box 1 piece
Package Level 1 Width
555 mm
Package Level 1 Depth / Length
365 mm
Package Level 1 Height
500 mm
Package Level 1 Gross Weight
35 kg
Package Level 1 EAN
7320500382066
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4758 >> Iec Contactors
Wide control voltage range enables robust operation with 230-240 V control signals, reducing panel energy consumption and improving reliability in unstable electrical networks. This translates to fewer trips and smoother motor start-ups in conveyors and pumps, delivering tangible uptime gains in continuous operation applications. Built-in surge protection paired with AF technology protects downstream electronics and circuit components, lowering maintenance costs and extending equipment life in high-crest factor environments such as metalworking and processing lines. The 3-pole design supports heavy AC-1 loads up to 2050 A and AC-3 loads up to 425 A at 1000 V, providing reliable motor starting and protection for large motors in packaging, plastics, and mining equipment. The modular design accepts add-on auxiliary contact blocks, enabling easy expansion for control logic changes, while pre-mounted main bars simplify wiring and reduce installation time in laboratory automation and assembly lines. Construction with Bar 100 mm² main circuit connections, IP20 coil terminals, and IP00 main terminals supports durable, high-current assemblies in board-level and panel applications, with a tightening torque of 45 N·m aiding secure, vibration-resistant connections. The compact block design and wide operating temperature range (-25 to 70 °C for various configurations) support global deployment in harsh environments, including automotive, cement, and water treatment facilities.
Get a Quick Quote for a ABB 1SFL707001R9101
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFL707001R9101?
Enquire Now
FAQs
To install, mount the 3P block contactor securely and connect the Main Circuit with 100 mm² bars while ensuring the IP00 termination for main terminals. Wire the coil to 230–240 V control supply (50/60 Hz) and use the recommended tightening torque of 45 N·m for cable lugs. Include pre-mounted auxiliary contacts as needed and verify clearances around the 438 mm width unit. This setup supports reliable operation in industrial environments and simplifies future expansion with add-on auxiliary blocks.
For AC-1 operation at 1000 V, the AF2050T-30-11 supports up to 2050 A at 40 °C, 1750 A at 55 °C, and 1500 A at 70 °C. For AC-3, it provides 425 A at 1000 V (55 °C) and up to 1060 A at 220–240 V (55 °C). These ratings enable dependable motor starting and switching for large machines in heavy industry.
Yes. The AF2050T-30-11 is designed for heavy motor loads with a 3P configuration, 1000 V insulation, and robust AC-1/AC-3 ratings. Its AF technology offers voltage tolerance and integrated surge protection, reducing oscillations and protecting equipment. The modular design and main-bar wiring support quick integration into packaging lines, plastics machinery, and other high-demand automation systems.
This ABB AF2050T-30-11 contactor carries CE and UL/CSA certifications, along with UKCA marking and additional declarations for RoHS, REACH, and environmental compliance. The broad certificate set, including ABS, BV, RINA, and LR where listed, supports international procurement and compliance across diverse markets and customer requirements.
The contactor delivers energy efficiency through AF technology and a wide control voltage range, reducing panel power losses. Built-in surge protection decreases fault exposure, while 0.5 million mechanical operations indicate high durability. Its modular add-on capability minimizes future wiring work, enabling easier maintenance, faster upgrades, and a favorable total cost of ownership in continuous-operation environments.
