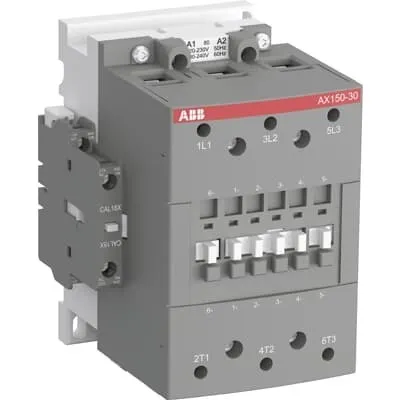

ABB 1SFL991074R2611 Block Contactor - UL Listed
Part Number: 1SFL991074R2611
Quick Summary
Block Contactor AX150-30-11-26 enables reliable motor switching for heavy-duty conveyors and machine lines. Engineers often struggle with heat buildup, short duty cycles, and downtime when selecting starters that truly match load profiles. This ABB solution carries CE Declaration of Conformity, UL certification, and RoHS compliance, signaling strong safety and regulatory alignment across global installations. The unit features three main NO contacts and one auxiliary NO/NC contact in a compact 3P frame, with per-pole power loss of 2.7 W. Beyond performance, you gain predictable maintenance intervals, easier wiring, and energy efficiency, reducing lifecycle costs while improving plant uptime in demanding 690 V networks.
Product Information
Extended Description
1SFL991074R2611 ABB: AX150-30-11-26 Contactor
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Instructions and Manuals
AX 90~150A instructions
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
102 mm
Product Net Depth / Length
123.5 mm
Product Net Height
148 mm
Product Net Weight
1.9 kg
Number of Main Contacts NO
3
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
1
Number of Auxiliary Contacts NC
1
Number of Poles
3P
Rated Operational Current AC-1 (Ie)
(690 V) 40 °C 160 A | (690 V) 55 °C 145 A | (690 V) 70 °C 130 A
Rated Operational Current AC-3 (Ie)
(415 V) 55 °C 115 A | (440 V) 55 °C 100 A | (500 V) 55 °C 100 A | (690 V) 55 °C 82 A | (380 / 400 V) 55 °C 115 A | (220 / 230 / 240 V) 55 °C 115 A
Power Loss
at Rated Operating Conditions per Pole 2.7 W
Product Name
Block Contactor
Maximum Operating Altitude Permissible
Without Derating 3000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CQC Certificate
CQC Certificate, Contactor, AX95, AX115, AX150, Made in China
Declaration of Conformity - CCC
CCC Declaration of Conformity, Contactor, AX95, AX115, AX150, Made in China
Declaration of Conformity - CE
CE Declaration of conformity - Contactor - AX95...AX370
UL Certificate
cULus Certificate, Contactor, A95...A110, AX95...AX150
Package Level 1 Width
140 mm
Package Level 1 Depth / Length
170 mm
Package Level 1 Height
130 mm
Package Level 1 Gross Weight
2.1 kg
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4755 >> Contactors
Three main NO contacts and one auxiliary NO/NC contact are built into a compact 3P frame, streamlining wiring and enabling straightforward control logic. This reduces panel wiring complexity, minimizes miswire risk, and shortens commissioning time in new installations. The device delivers AC-1 ratings up to 160 A at 690 V (40 °C), 145 A at 55 °C, and 130 A at 70 °C, with AC-3 ratings up to 115 A across standard three-phase voltages, enhancing motor start reliability for demanding loads. A per-pole power loss of 2.7 W supports energy efficiency and cooler operation in continuous duty. With a width of 102 mm, depth of 123.5 mm, height of 148 mm, and weight of 1.9 kg, installation in compact panels is straightforward and fast. Operating altitude up to 3000 m without derating broadens deployment in high-altitude facilities. The module complies with RoHS, REACH, TSCA, WEEE B2B, CE, UL, CCC, and CQC standards, simplifying global sourcing. CAD 2D/3D data and technical manuals accelerate integration with existing ABB AX family components. Minimum order is 1 piece, with tariff classification 85364900, aiding procurement planning and logistics.
Get a Quick Quote for a ABB 1SFL991074R2611
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFL991074R2611?
Enquire Now
FAQs
Install in a standard 3P enclosure with a 102 mm wide footprint. Connect the three main NO contacts to the load and line sides, connect the one auxiliary NO/NC contact to the control circuit, and wire the coil control for the rated supply (up to 690 V as specified). Use proper torque on mounting screws and verify wiring against the datasheet CAD drawings for correct spacing and clearance.
AC-1 rated current is up to 160 A at 690 V at 40 °C, 145 A at 690 V at 55 °C, and 130 A at 690 V at 70 °C. AC-3 ratings reach 115 A at 415–440–380–400 V across 55 °C. This enables dependable motor starting for typical three-phase motors in mixed ambient conditions.
Yes. The three-pole design, 3 NO main contacts, and one auxiliary contact support reliable motor switching for conveyors, pumps, and machine tools. The low per-pole power loss (2.7 W) improves energy efficiency, while the 690 V compatibility and robust ratings ensure dependable operation in demanding automation lines.
It carries CE Declaration of Conformity, UL certification, and RoHS compliance, along with TSCA, CMRT, WEEE B2B, CCC, and CQC as documented. These certifications reinforce safety, environmental responsibility, and global regulatory readiness for international deployments.
Routine maintenance focuses on inspecting contact wear and ensuring clean, secure wiring. The 2.7 W per pole loss reduces energy costs in continuous operation, while the compact form factor minimizes panel space. Standard ABB spare parts for AX family compatibility simplify lifecycle planning and help lower total cost of ownership.
