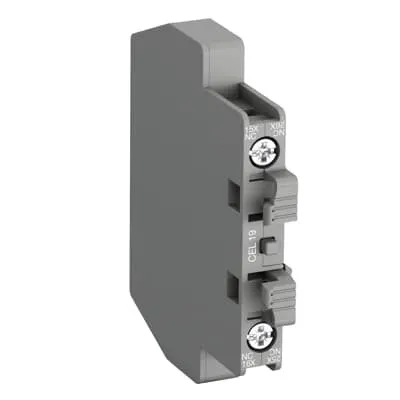

ABB 1SFN010833R1001 Auxiliary Contact Block - IP20
Part Number: 1SFN010833R1001
Quick Summary
Auxiliary Contact Block provides a single NC contact for signaling in motor control circuits. This compact accessory helps you extend control capabilities without enlarging the main contactor footprint, reducing wiring complexity and panel clutter. CE and UL declarations, UKCA marking, and RoHS compliance support modern regulatory requirements, while IP20 protection reinforces reliability in dry, indoor environments. For engineers and procurement teams, this block offers a straightforward path to safer interlocking, clearer fault indication, and scalable control architectures. Use with AF-series contactors to maximize panel space, simplify wiring, and improve overall machine uptime and maintenance planning.
Product Information
Extended Description
1SFN010833R1001 ABB: Auxiliary contact block, equipped with 1 N.C. Ring Tounge terminals.
Minimum Order Quantity
1 piece
Customs Tariff Number
85369010
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Instructions and Manuals
Operating instruction, Contactor, AF(S)190 ... AF(S)370
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
14.9 mm
Product Net Depth / Length
79 mm
Product Net Height
67.3 mm
Product Net Weight
0.03 kg
Number of Auxiliary Contacts NO
0
Number of Auxiliary Contacts NC
1
Rated Operational Voltage
Auxiliary Circuit 125 V
Power Loss
at Rated Operating Conditions per Pole 0.15 W
Connecting Capacity Auxiliary Circuit
Flexible with Ferrule 1x 0.75 ... 2.5 mm² | Flexible with Ferrule 2x 0.75 ... 2.5 mm² | Rigid 1 x 1 ... 4 mm² | Rigid 2 x 1 ... 4 mm²
Wire Stripping Length
Auxiliary Circuit 9 mm
Degree of Protection
IP20
Recommended Screw Driver
Auxiliary Circuit 1 x 5.5 | Auxiliary Circuit Pozidriv 2
Tightening Torque
Auxiliary Circuit 1 N·m
Terminal Type
Ring-Tongue Terminals
Suitable For
AF116B, AF140B, AF146B, AF190B, AF205B, AF265B, AF305B, AF370B
Product Name
Auxiliary Contact Block
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Declaration of Conformity - CE
CE Declaration of Conformity - Auxiliary contact - CAL16, CCL16, CAL18, CEL18, CAL19, CEL19
Declaration of Conformity - UKCA
UK Declaration of Conformity - Auxiliary contact blocks
UL Certificate
cURus certificate, Contactor accessories, CEL19-RT
Package Level 1 Units
bag 1 piece
Package Level 1 Width
70 mm
Package Level 1 Depth / Length
75 mm
Package Level 1 Height
10 mm
Package Level 1 Gross Weight
0.04 kg
Package Level 1 EAN
7320500510773
Object Classification Code
K
ETIM 7
EC000041 - Auxiliary contact block
ETIM 8
EC000041 - Auxiliary contact block
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
Feature → Business Impact → Application: The block provides 1 NC auxiliary contact and 1 N.C. Ring Tongue terminal interface, delivering a clear, redundant signaling path with minimal contact resistance. This translates to improved interlocking accuracy and reduced risk of misoperation in control schemes; ideal for machine signaling, status indication, and interlock logic in compact panels. Application: fits AF-series contactors (AF116B through AF370B), enabling seamless integration into existing control architectures. Feature → Business Impact → Application: Low power loss of 0.15 W per pole supports energy-efficient control circuits, lowering overall panel heat and long-term energy costs. Application: suitable for continuous operation in standard industrial environments demanding reliable signaling with minimal thermal load.
Get a Quick Quote for a ABB 1SFN010833R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFN010833R1001?
Enquire Now
FAQs
Install on compatible AF contactors (AF116B, AF140B, AF146B, AF190B, AF205B, AF265B, AF305B, AF370B). Use the ring-tongue terminals for the auxiliary circuit, strip wires to 9 mm, and tighten to 1 N·m. Ensure IP20 rating by mounting in a dry indoor panel and verify clearance around the device to prevent contact with live parts.
The block provides 1 normally closed contact, 125 V auxiliary circuit rating, and a per-pole power loss of 0.15 W. Wiring is flexible with ferrule 0.75–2.5 mm² or rigid 1–4 mm² connections, supporting reliable signaling with standard control voltages.
Yes. It’s designed to extend signaling and interlocking within AF-series control circuits, offering compact dimensions (14.9 mm width, 79 mm depth, 67.3 mm height) and IP20 protection for dependable operation in controlled environments.
The part supports CE and UKCA declarations, UL cURus certification for contactor accessories, and RoHS compliance. It also aligns with CMRT and WEEE guidelines, confirming responsible material use and end-of-life handling.
Maintenance is minimal due to solid mechanical contact and durable ring-tongue terminals. The low power loss reduces panel heat and energy costs, while compatibility with AF-series devices lowers installation time and wiring errors, delivering faster ROI through improved reliability and easier field servicing.
