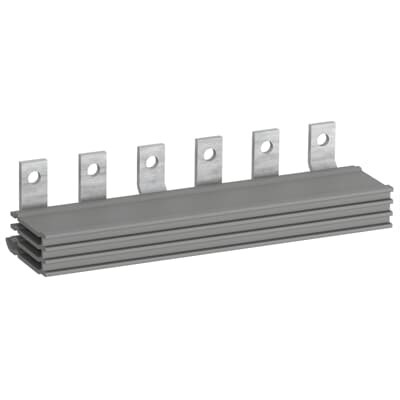

ABB 1SFN084214R1000 Connection Set - CE & UKCA
Part Number: 1SFN084214R1000
Quick Summary
ABB 1SFN084214R1000 Connection Set provides phase-to-phase interconnections for AF116–AF146 block contactors. Engineers often struggle with wiring reliability and field assembly speed, especially in compact motor control panels. CE, UKCA and cUL certifications ensure regulatory compliance and safe operation in global installations, while RoHS/REACH declarations support sustainability and supply chain ethics. This accessory delivers robust screw-terminal connections, reduces mis-wiring risk, and simplifies service in the field. By standardizing interconnects, it also lowers spare-part variety and accelerates panel assembly, delivering measurable time savings and total-cost-of-ownership improvements for contractors and OEMs. Its compatibility with AF116, AF140 and AF146 streamlines purchasing and inventory planning for multi-model drives.
Product Information
Extended Description
1SFN084214R1000 ABB: Phase to Phase connectors (change over), 3-pole, AF116-AF146
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Instructions and Manuals
Interconnection bars, BEP140-30,BEP205-30,BEP370-30
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
178 mm
Product Net Depth / Length
49 mm
Product Net Height
40.9 mm
Product Net Weight
0.32 kg
Terminal Type
Screw Terminals
Suitable For
AF116 | AF140 | AF146
Suitable for Product Class
Block Contactors
Product Name
Connection Set
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
cUL Certificate
cULus Certificate, Contactor, AF116-30...AF146-30, AFS116-30...AFS146-30
Declaration of Conformity - CE
CE Declaration of Conformity - Accessories for AF116...AF370
Declaration of Conformity - UKCA
UK Declaration of Conformity - Contactor accessories >100A
Package Level 1 Units
bag 1 piece
Package Level 1 Width
178 mm
Package Level 1 Depth / Length
40.9 mm
Package Level 1 Height
49 mm
Package Level 1 Gross Weight
0.335 kg
Package Level 1 EAN
7320500480335
Object Classification Code
W
ETIM 7
EC002498 - Accessories for low-voltage switch technology
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
eClass
V11.0 : 27371392
UNSPSC
39122221
IDEA Granular Category Code (IGCC)
5219 >> Switch part or accessory
E-Number (Finland)
3706542
E-Number (Norway)
4188101
E-Number (Sweden)
3210211
Feature: Phase-to-phase interconnection with a 3-pole BEP140-30 design and screw terminals. Business Impact: Delivers secure, reliable interconnects that minimize wiring errors and panel downtime, boosting overall equipment effectiveness in motor control centers. Application: Ideal for AF116–AF146 block contactors in industrial drives and power distribution panels. Paragraph two emphasizes compatibility and installation efficiency: Feature: Compatible with AF116, AF140, and AF146 contactors; screw-terminal design supports robust torque control and long-term reliability. Business Impact: Reduces maintenance visits and simplifies field retrofits, cutting service costs. Application: Suitable for retrofit projects and new builds in automation cabinets. Paragraph three highlights dimensions and fit: Feature: Slim footprint with precise 178 mm width, 49 mm depth, and 40.9 mm height; weight around 0.32 kg. Business Impact: Fits standard DIN-rail mounted assemblies and minimizes enclosure changes. Application: Enables fast integration in compact panels and machine builds. Paragraph four covers compliance and documentation: Feature: Comprehensive certifications and declarations (CE, UKCA, cUL, RoHS/REACH, CMRT). Business Impact: Ensures regulatory alignment across regions, simplifying supplier qualification and audit readiness. Application: Supports global manufacturing footprints and multi-country deployments. Paragraph five addresses procurement and maintenance: Feature: Minimum order quantity of 1 piece and documented compatibility with interconnection bars BEP140-30, BEP205-30, BEP370-30. Business Impact: Streamlines BOM processing and reduces stocking complexity. Application: Effective for OEMs managing large assemblies and spare-part cohorts.
Get a Quick Quote for a ABB 1SFN084214R1000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFN084214R1000?
Enquire Now
FAQs
The 1SFN084214R1000 Connection Set is designed specifically for AF116, AF140 and AF146 block contactors, providing a secure 3-pole phase-to-phase interconnection. It uses screw terminals for reliable, vibration-resistant connections and is intended to simplify interconnections in motor control centers and drive assemblies that employ these contactors. This ensures consistent electrical performance and reduces wiring errors during panel assembly and maintenance.
The accessory features screw terminals for robust terminations and a compact footprint suitable for tight panels. It has a product width of 178 mm, depth of 49 mm, and height of 40.9 mm, with an approximate net weight of 0.32 kg. A minimum order quantity is 1 piece, and it ships in a bag packaging format (Package Level 1).
This connection set carries CE and UKCA declarations of conformity, along with a cULus certificate, and is RoHS/REACH compliant. These certifications validate safety and environmental compliance across Europe and North America, supporting regulatory approvals, supplier qualification, and customer audits in multinational manufacturing environments.
By standardizing phase-to-phase interconnections with screw-terminal reliability and a uniform footprint, the set reduces wiring labor, minimizes mis-termination risk, and speeds panel assembly and future maintenance. Its AF116–AF146 compatibility helps simplify BOMs and stocking, enabling faster fabrication of motor control panels and lower downtime during preventive maintenance and retrofits.
Minimum order quantity is 1 piece, packaged as bag 1 piece. The part is associated with a 7320500480335 EAN and is compatible with interconnection bars BEP140-30, BEP205-30, and BEP370-30. This packaging and MOQ support streamlined purchasing, inventory planning, and just-in-time manufacturing workflows.
