ABB 1SFN084304R1000 Connection Set - CE Certified
Part Number: 1SFN084304R1000
Quick Summary
ABB 1SFN084304R1000 Connection Set is a busbar kit for 3-pole phase-to-phase contactors in compact control panels. Installation time and wiring complexity can slow projects, especially in space-constrained cabinets. It carries CE and UKCA declarations for regulatory compliance, plus RoHS and REACH assurances for sustainable materials. This accessory is designed for ABB A95, A110, AX95, AX115 and AX150 family contactors, enabling a neat, secure interconnection on the line or load side. The compact 55 mm width and 50 mm depth help reduce panel footprint while maintaining robust screw-terminal connections. For procurement teams, the kit streamlines sourcing as a single integration solution that improves install reliability and serviceability.
Product Information
Extended Description

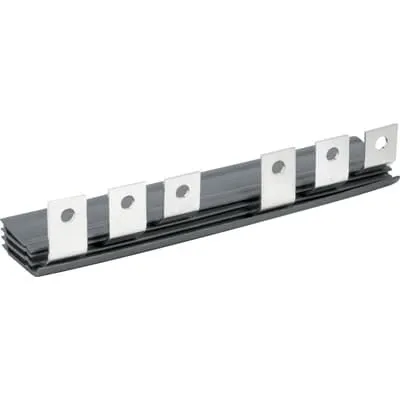

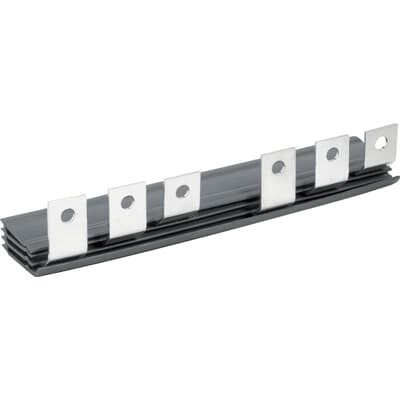

1SFN084304R1000 ABB: Line or load side busbar kit for 3 pole phase to phase contactors mounted side by side
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Instructions and Manuals
5309660-66
Product Net Width
55 mm
Product Net Depth / Length
50 mm
Product Net Height
117 mm
Product Net Weight
0.25 kg
Terminal Type
Screw Terminals
Suitable For
A95 | A110 | AX95 | AX115 | AX150
Suitable for Product Class
Block Contactors
Product Name
Connection Set
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Declaration of Conformity - CE
CE Declaration of Conformity - Accessories for A95...A300
Declaration of Conformity - UKCA
UK Declaration of Conformity - Contactor accessories >100A
Package Level 1 Units
bag 1 piece
Package Level 1 Width
161 mm
Package Level 1 Depth / Length
55 mm
Package Level 1 Height
50 mm
Package Level 1 Gross Weight
0.26 kg
Package Level 1 EAN
7320500175071
Object Classification Code
W
ETIM 7
EC002498 - Accessories for low-voltage switch technology
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
eClass
V11.0 : 27371392
UNSPSC
39122221
IDEA Granular Category Code (IGCC)
5219 >> Switch part or accessory
E-Number (Norway)
4120503
Feature: A purpose-built busbar kit provides clean, parallel connections for three-pole phase-to-phase contactors mounted side by side. Impact: simplifies harness routing, reduces panel build time, and lowers wiring error rates during commissioning. Application: ideal for ABB A95, A110, AX95, AX115 and AX150 block contactors in space-constrained control panels. Feature: Screw terminals offer robust, serviceable connections with predictable torque retention. Impact: improves vibration resistance in industrial environments and eases field maintenance with straightforward disassembly. Application: supports secure line and load interconnections in motor control circuits. Feature: Compact footprint—55 mm net width, 50 mm depth, and 117 mm height—preserves cabinet space. Impact: increases panel density, reduces enclosure size, and lowers weight for easier installation. Application: suited for panel builders prioritizing compact assemblies without sacrificing reliability. Feature: Regulatory and material compliance are built-in, including CE and UKCA declarations and RoHS/REACH alignment. Impact: accelerates compliance documentation, reduces supplier risk, and simplifies audits. Application: compatible with standard motor protection and control assemblies across European and UK sites. Feature: Clear compatibility with ABB contactor families and standard ETIM/UNSPSC classifications ensures fast integration. Impact: minimizes design variance, speeds procurement, and reduces the number of spare parts required. Application: ideal for modular automation projects that combine multiple ABB contactors in a single enclosure.
Get a Quick Quote for a ABB 1SFN084304R1000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFN084304R1000?
Enquire Now
FAQs
Designed for ABB block contactors, the 1SFN084304R1000 Connection Set supports A95, A110, AX95, AX115, and AX150 series. It functions as a line or load side busbar kit, enabling side-by-side mounting of three-pole devices and providing screw-terminal connections. With a compact footprint and 1 piece minimum order, it simplifies panel planning and reduces wiring complexity on standard motor control assemblies.
Installing this connection set delivers measurable gains in reliability and efficiency. The integrated busbar minimizes loose connections and miswiring risks typical of hand-wired interconnects, while screw terminals provide repeatable torque and durable vibration resistance. In practice, panel builds finish faster, commissioning is smoother, and ongoing maintenance benefits from easier access and predictable terminal performance in ABB-controlled motor circuits.
Yes. The product carries CE and UKCA declarations, along with RoHS and REACH compliance, aligning it with European and UK regulatory expectations for electrical accessories. WEEE considerations are managed through B2B classifications, and the unit is designed for durable operation in industrial environments. Auditors and procurement teams will appreciate the clear conformity documentation included with the data.
Installation considerations include confirming compatibility with ABB A95/A110 AX95 AX115 AX150 contactors, planning for side-by-side mounting and proper clearances, and applying correct screw-terminal torque per the data sheet. Ensure line and load wiring follows the intended interconnection path to avoid cross-wiring. The kit’s 55 mm width and 50 mm depth fit typical panel racks, and the Data Sheet 1SBC100214C0202 provides mounting guidance.
Evaluating ROI, the ABB connection set translates to faster installation times, fewer wiring errors, and lower field maintenance costs over the motor-control lifecycle. By consolidating interconnects into a single, pre-assembled busbar, commissioning becomes more predictable, spare parts stocking is simplified, and regulatory compliance documentation is streamlined for audits. In high-volume panel builds, the cumulative time savings justify the investment within months.
