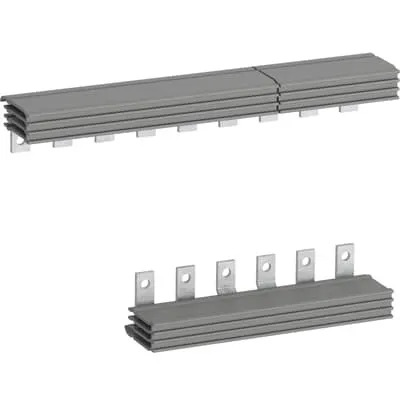

ABB 1SFN084413R1000 Connection Set - CE Certified
Part Number: 1SFN084413R1000
Quick Summary
ABB 1SFN084413R1000 Connection Set enables secure interconnections for Star-Delta starters in motor-control panels. This accessory reduces wiring errors and simplifies panel assembly in compact spaces. The product carries CE Declaration of Conformity, UKCA marking, and cULus certification, giving you cross‑regional compliance for critical equipment. Designed for AF116, AF140, and AF146 contactors, it supports quick installation and reliable long-term operation. By standardizing interconnections, it lowers labor costs and minimizes commissioning time, helping you meet project schedules and uptime targets in industrial environments. This solution integrates seamlessly with ABB BEY140-4 and BEY-series interconnections, delivering measurable efficiency gains and improved maintenance planning for electrical protection and circuit control teams.
Product Information
Extended Description
1SFN084413R1000 ABB: Connections for Star-Delta starters L+D=AF140, Y=AF116
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Instructions and Manuals
Interconnection bars, BEY140-4,BEY190-4,BEY205-4,BEY265-4,BEY370-4
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
240 mm
Product Net Depth / Length
36 mm
Product Net Height
43 mm
Product Net Weight
1.04 kg
Terminal Type
Screw Terminals
Suitable For
AF116 | AF140 | AF146
Suitable for Product Class
Block Contactors
Product Name
Connection Set
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
cUL Certificate
cULus Certificate, Contactor, AF116-30...AF146-30, AFS116-30...AFS146-30
Declaration of Conformity - CE
CE Declaration of Conformity - Accessories for AF116...AF370
Declaration of Conformity - UKCA
UK Declaration of Conformity - Contactor accessories >100A
Package Level 1 Units
bag 1 piece
Package Level 1 Width
178 mm
Package Level 1 Depth / Length
123 mm
Package Level 1 Height
49 mm
Package Level 1 Gross Weight
1.06 kg
Package Level 1 EAN
7320500471616
Object Classification Code
W
ETIM 7
EC002498 - Accessories for low-voltage switch technology
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
eClass
V11.0 : 27371392
UNSPSC
39122221
IDEA Granular Category Code (IGCC)
5219 >> Switch part or accessory
E-Number (Finland)
3706543
E-Number (Norway)
4188102
E-Number (Sweden)
3210221
Feature: Screw terminals provide secure, vibration-resistant wiring connections. Business Impact: Reduces loose connections and arcing risk, improving equipment reliability in harsh industrial environments. Application: Ideal for field wiring in AF116, AF140, and AF146 configurations. Feature: Broad compatibility with AF116, AF140, AF146. Business Impact: Lowers inventory complexity and procurement overhead by supporting multiple contactor types. Application: Streamlines design and stocking for Star-Delta motor starter projects. Feature: Compact footprint and weight (240 mm width, 36 mm depth, 43 mm height; 1.04 kg). Business Impact: Enables dense panel layouts and easier handling during installation and maintenance. Application: Fits space-constrained control panels and retrofits where interconnects must share limited space. Feature: Regulatory compliance (CMRT, REACH, RoHS, WEEE) and multiple certifications (CE, UKCA, cUL). Business Impact: Reduces regulatory risk and procurement friction across regions, supporting compliant sourcing and audit readiness. Application: Global projects with cross‑regional supply chains. Feature: Documentation and packaging (Data Sheet, CAD drawings, interconnection bars documentation; bag 1 piece). Business Impact: Accelerates engineering, enables accurate CAD imports, and simplifies logistics. Application: System design, installation planning, and field deployment across plant floors.
Get a Quick Quote for a ABB 1SFN084413R1000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFN084413R1000?
Enquire Now
FAQs
This Connection Set is designed to be compatible with AF116, AF140, and AF146 contactors, ensuring secure screw-terminal interconnections within Star-Delta starter assemblies. It simplifies wiring in BEY140-4 and similar motor protection configurations, reducing panel complexity and installation time while maintaining compliant interconnects.
Key specs include a product net width of 240 mm, depth 36 mm, height 43 mm, and weight 1.04 kg. It uses screw terminals, supports AF116/AF140/AF146, and is supplied as a single-piece bag. International certifications include CE, UKCA, and cULus, with RoHS and REACH compliance documented.
Yes. The set is specifically intended for Star-Delta starters, providing reliable interconnections for AF series contactors (AF116/AF140/AF146) used in BEY630-like schemes. It helps consolidate interconnections, reduce wiring errors, and speed up commissioning in motor protection and control panels.
Consider CE Declaration of Conformity for European compliance, UKCA marking for UK installations, and the cULus certificate for North American use. The product also carries RoHS and REACH declarations, aligning with environmental and safety standards for electrical components.
By standardizing interconnections and using screw terminals for secure wiring, maintenance becomes faster and less error-prone, reducing downtime. The compact form factor supports scalable protection architectures, potentially lowering labor costs, speeding upgrades, and improving uptime across multiple machines and lines.
