ABB 1SFN084814R1000 Connection Set - AF190-AF205
Part Number: 1SFN084814R1000
Quick Summary
ABB 1SFN084814R1000 Connection Set enables phase-to-phase interconnection for AF190 and AF205 block contactors. In the field, tight, error‑prone wiring and misaligned interconnects slow installs and raise outage risk, so a reliable, plug‑and‑play solution matters. The product carries CE and UKCA conformity, a cULus certification, plus RoHS and REACH declarations to support global compliance. Designed for screw-terminal interfaces, it aligns with AF190–AF205, simplifying panel layouts and reducing spare‑parts variety. By standardizing connections and enabling quick field assembly, it improves installation throughput and long‑term maintenance planning, delivering measurable reductions in engineering time and lifecycle costs for motor-control applications.
Product Information
Extended Description

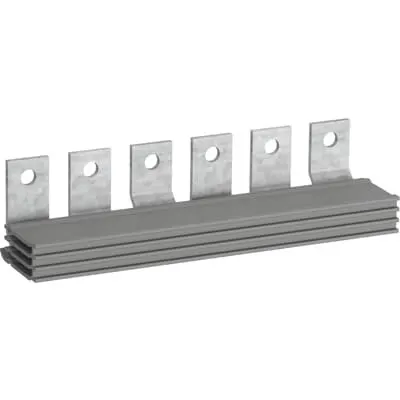

1SFN084814R1000 ABB: Phase to Phase connectors (change over), 3-pole, AF190-AF205
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Instructions and Manuals
Interconnection bars, BEP140-30,BEP205-30,BEP370-30
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
208 mm
Product Net Depth / Length
52 mm
Product Net Height
51.5 mm
Product Net Weight
0.53 kg
Terminal Type
Screw Terminals
Suitable For
AF190 | AF205
Suitable for Product Class
Block Contactors
Product Name
Connection Set
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
cUL Certificate
cULus Certificate, Contactor, AF116-30...AF146-30, AFS116-30...AFS146-30
Declaration of Conformity - CE
CE Declaration of Conformity - Accessories for AF116...AF370
Declaration of Conformity - UKCA
UK Declaration of Conformity - Contactor accessories >100A
Package Level 1 Units
bag 1 piece
Package Level 1 Width
208 mm
Package Level 1 Depth / Length
51.5 mm
Package Level 1 Height
52 mm
Package Level 1 Gross Weight
0.55 kg
Package Level 1 EAN
7320500478578
Object Classification Code
W
ETIM 7
EC002498 - Accessories for low-voltage switch technology
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
eClass
V11.0 : 27371392
UNSPSC
39122221
IDEA Granular Category Code (IGCC)
5219 >> Switch part or accessory
E-Number (Finland)
3706548
E-Number (Norway)
4188105
E-Number (Sweden)
3210212
The 3-pole phase-to-phase connection set is designed for AF190 and AF205 block contactors, delivering a robust interconnection that reduces wiring errors and speeds panel assembly. This feature translates to lower installation labor costs and fewer post-installation failures, especially in vibration-prone environments. It is specifically suited for motor-control panels where reliable phase switching is critical and where standardized interconnects support scalable panel design. The screw-terminal configuration provides a secure, vibration-resistant connection that maintains conductivity under start‑up transients, reducing maintenance calls and extending component life. With precise dimensions (208 mm width, 52 mm depth, 51.5 mm height) and a weight of 0.53 kg, it fits neatly into standard cabinets, enabling cleaner layouts and CAD-ready documentation. The accessory also aligns with BEP bars and installation accessories, promoting modularity and faster changeovers. Its certifications—CE, UKCA, cULus, RoHS, and REACH—simplify cross-border deployments and supplier audits, while the 1 piece minimum order quantity streamlines procurement planning and reduces stock complexity. Packaging is designed for practical stocking (bag 1 piece), supporting predictable replenishment and maintenance contracts. In practice, technicians report faster interconnections, standardized mounting points, and easier spares management, contributing to lower total cost of ownership in diverse industrial settings.
