ABB 1SFN085704R1000 Connection Set - CE/UKCA Approved
Part Number: 1SFN085704R1000
Quick Summary
The ABB 1SFN085704R1000 Connection Set provides busbar interconnection for 3-pole contactors mounted side by side. It reduces wiring complexity, speeds installation, and lowers the risk of loose connections in compact switchgear. CE and UKCA declarations support European compliance, and cULus certification expands suitability for North American installations, while RoHS/REACH declarations ensure material compliance. Compatible with AF400 and AF460 block contactors, this kit streamlines procurement, reduces panel footprint, and delivers faster time-to-value in electrical protection and circuit-control assemblies. Engineers will appreciate the defined MOQ and standardized dimensions for easy CAD integration. By supporting modular busbar configurations, it scales with evolving control architectures.
Product Information
Extended Description

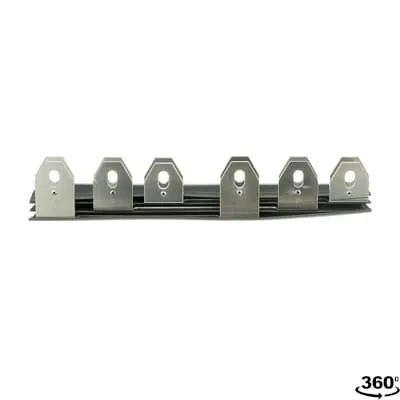

1SFN085704R1000 ABB: Line or load side busbar kit for 3 pole phase to phase contactors mounted side by side
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Instructions and Manuals
Interconnection bars, BES 460, BES 750
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
402 mm
Product Net Depth / Length
72 mm
Product Net Height
78 mm
Product Net Weight
2.2 kg
Terminal Type
Screw Terminals
Suitable For
AF400 | AF460
Suitable for Product Class
Block Contactors
Product Name
Connection Set
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
cUL Certificate
cULus Certificate, Contactor, AF116-30...AF146-30, AFS116-30...AFS146-30
Declaration of Conformity - CE
CE Declaration of Conformity - Accessories for AF400...AF2850
Declaration of Conformity - UKCA
UK Declaration of Conformity - Contactor accessories >100A
Package Level 1 Units
box 1 piece
Package Level 1 Width
470 mm
Package Level 1 Depth / Length
90 mm
Package Level 1 Height
260 mm
Package Level 1 Gross Weight
2.4 kg
Package Level 1 EAN
7320500222249
Object Classification Code
W
ETIM 7
EC002498 - Accessories for low-voltage switch technology
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
eClass
V11.0 : 27371392
UNSPSC
39122221
IDEA Granular Category Code (IGCC)
5219 >> Switch part or accessory
E-Number (Finland)
3709275
E-Number (Norway)
4116145
E-Number (Sweden)
4116145
Feature: Line or load side busbar kit for 3-pole phase-to-phase contactors mounted side by side → Business Impact: Simplifies interconnections, reduces wiring errors, and enables modular expandability → Application: Used in motor protection and control panels with AF400/AF460 contactors. Feature: Screw terminals → Business Impact: Ensures secure, reliable connections with straightforward maintenance → Application: Suitable for high-current interconnections in compact switchgear. Feature: Compatible with AF400 and AF460 → Business Impact: Eliminates the need for adapters, speeds rollout, and minimizes stock variety → Application: Ideal for ABB block contactor configurations in industrial control panels. Feature: Full material and regulatory compliance (CE, UKCA, cULus, RoHS, REACH) → Business Impact: Reduces regulatory risk, smooths global procurement, and supports audit readiness → Application: Global manufacturing environments and multi-site deployments. Feature: Clear dimensions and packaging data (402 mm width, 72 mm depth, 78 mm height; 2.2 kg) → Business Impact: Improves layout planning, enclosure fit, and logistics decisions → Application: Panel design, space budgeting, and shipping planning. Feature: Data sheets and CAD resources available → Business Impact: Accelerates design validation and CAD integration → Application: Engineering workflows and pre-assembly planning for control panels.
Get a Quick Quote for a ABB 1SFN085704R1000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFN085704R1000?
Enquire Now
FAQs
The BES460-30 Connection Set is designed to work with ABB AF400 and AF460 block contactors, providing a pre-formed busbar interconnect that simplifies line and load side wiring. This compatibility reduces the need for adapters and minimizes installation steps in control panels, improving both reliability and installation speed.
Install the busbar kit on the line or load side of the 3-pole contactors mounted side by side, using the screw terminals for secure interconnections. Verify alignment with AF400/AF460 assemblies, tighten screws to specification, and confirm that the interconnects are free of strain. Refer to the 1SBC100214C0202 data sheet for detailed mounting instructions.
This connection set carries CE and UKCA declarations for European compliance and cULus certification for North American use, alongside RoHS and REACH declarations for material sustainability. These certifications help ensure regulatory compliance across regions, reduce procurement risk, and support global manufacturing and product stewardship programs.
Product net width is 402 mm, net depth 72 mm, and net height 78 mm, with a net weight of 2.2 kg. Packaging details include box-level packaging with dimensions suitable for standard enclosure spaces, aiding layout planning and shipping efficiency.
Benefits include reduced wiring complexity, faster assembly, improved connection reliability, and a smaller panel footprint. Typical applications are motor protection and control panels using ABB AF400/AF460 block contactors, where modular interconnection and regulatory compliance simplify design, procurement, and long-term maintenance.
