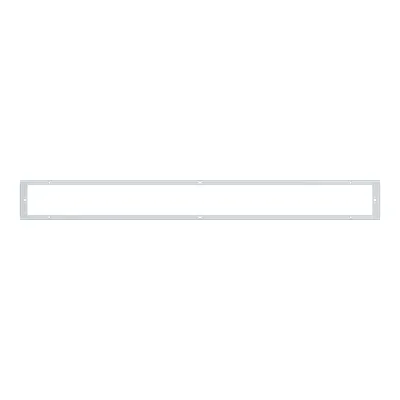

ABB 1SKA580000R0016 Sub Distribution Cabinet - IP41
Part Number: 1SKA580000R0016
Quick Summary
ABB 1SKA580000R0016 Sub Distribution Cabinet provides compact, secure housing for control gear in industrial switchgear and distribution enclosures. It addresses space constraints, simplifies panel layouts, and protects sensitive components from dust, moisture, and accidental contact in demanding environments. The enclosure carries IP41 protection and RoHS/REACH compliance, supporting operator safety and customer sustainability goals while ensuring regulatory readiness across global supply chains. Built with powder-coated steel in a durable grey finish (RAL 7035) and a built-in depth of 300 mm, it delivers consistent aesthetics and long service life. Its compatibility with ABB GDUN250-AJS55 modules makes retrofit and expansion straightforward for panel builders and OEMs seeking scalable, compliant sub-distribution solutions.
Product Information
Extended Description
1SKA580000R0016 ABB: ABB1SKA580000R0016, Sub Distribution, GDUN250-AJS55
Number of Flange Openings
1
Number of Conduit Inlets
0
Surface Finishing
Powder coating
Housing Material
Steel
RAL Number
RAL 7035 - Light Grey
Color
Grey
RoHS Information
EU RoHS Declaration of Conformity Unikit
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240129
REACH Declaration
EU REACH SVHC Declaration Unikit
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240129
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP41
Product Net Width
50 mm
Product Net Height
1600 mm
Product Net Depth / Length
300 mm
Built-In Depth (t2)
300 mm
Thickness
Cabinet Plate 1.5 mm | Door Plate 1.5 mm
ETIM 8
EC000058 - Empty cabinet
ETIM 9
EC000058 - Empty cabinet
eClass
V11.0 : 27142408
One flange opening simplifies conduit routing and reduces install time, enabling clean cable management in tight cabinets and faster commissioning for GDUN250-AJS55 deployments. Zero conduit inlets minimizes ingress paths and maintenance overhead, supporting sealed, modular installations where conduits are managed elsewhere in the panel. Powder coating provides a durable, corrosion-resistant finish that lowers lifecycle costs and preserves appearance in busy factories. Steel housing delivers high mechanical strength to withstand equipment vibrations and incidental impacts, maintaining enclosure integrity in demanding lines. RAL 7035 light grey ensures standardized appearance across fleets, aiding asset management and reducing misidentification. The enclosure's RoHS and REACH compliance, together with ETIM/ eClass classifications, streamline procurement, auditing, and supplier qualification, while the 1600 mm x 50 mm x 300 mm footprint supports efficient panel layout planning. This combination supports faster project delivery, reduced service interruptions, and scalable expansion for evolving control architectures.
Get a Quick Quote for a ABB 1SKA580000R0016
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SKA580000R0016?
Enquire Now
FAQs
The 1SKA580000R0016 is designed as a sub-distribution cabinet that integrates with ABB GDUN250-AJS55 and similar panel components. Its 1 flange opening simplifies conduit alignment, and its 300 mm depth matches typical DIN rail and module footprints. Ensure mounting holes align with module frames and plan cable routing to minimize connector stress during retrofit.
IP41 indicates protection against solid objects larger than 1 mm and protection against water splashes from a limited range of angles. For indoor factory floors, this level suffices for dry, clean environments with occasional splashes. For harsher sites you may need higher IP ratings or additional gaskets and sealing options.
Yes, the cabinet carries EU RoHS and REACH declarations, with specified dates and SVHC disclosures. This supports compliance documentation for audits, helps minimize supply chain risk, and simplifies certification trails for European regulatory requirements. Keep the accompanying declarations up to date during any material changes or supplier reassessment.
With a single flange opening and zero conduit inlets, plan external conduit routing to align with the flange and maintain enclosure integrity. Use cable glands or fittings suitable for 1 mm clearance and route cables along the cabinet edge to prevent interference with doors and hinges. Verify enclosure depth compatibility with installed modules.
Powder-coated steel offers better scratch resistance and corrosion protection than bare steel, reducing repainting costs and downtime. This increases mean time between failures and lowers lifecycle costs, especially in busy production lines. The finish also preserves aesthetics, aiding asset management and resale value for panel builders.
