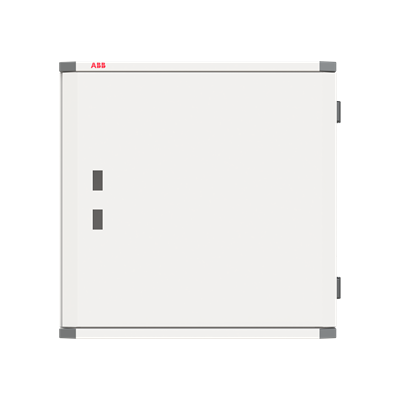

ABB 1SKU124152C0001 Sub Distribution Boards - IP54
Part Number: 1SKU124152C0001
Quick Summary
ABB 1SKU124152C0001 Sub Distribution Boards deliver compact, floor-mounted enclosures for robust panel-level electrical distribution in industrial facilities. Engineers often contend with constrained footprints, inconsistent grounding, and lengthy installation cycles when upgrading control infrastructure. This unit provides IP54 protection with grounded Class I construction and CE compliance, plus RoHS and REACH declarations for reliable operation in demanding environments. Built around a steel, powder-coated housing with a 700x700 mm footprint and a 250 A rating, it helps streamline distribution while reducing total cost of ownership. Designed for Unikit systems and floor-installation needs, it supports quick mounting, safe access, and predictable maintenance workflows across manufacturing environments.
Product Information
Extended Description
1SKU124152C0001 ABB: GDUN150-01 UNIKIT Complete built up Empty 250A, plain door, wall mounted size 1, IP 41
Rated Current (In)
250 A
Number of Flange Openings
1
Number of Conduit Inlets
0
Cover Plate Type
Optional
Mounting Type
Floor installation
Door Type
Panel Door
Surface Finishing
Powder coating
Housing Material
Steel
RAL Number
RAL 7035 - Light Grey
Color
Grey
RoHS Information
EU RoHS Declaration of Conformity Unikit
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240129
REACH Declaration
EU REACH SVHC Declaration Unikit
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240129
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP54
Protection Class
Grounded (Class I)
Product Net Width
700 mm
Product Net Height
700 mm
Product Net Depth / Length
150 mm
Built-In Depth (t2)
150 mm
Thickness
Cabinet Plate 1.5 mm | Door Plate 1.5 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
32 kg
Declaration of Conformity - CE
Declaration of confirmity CE
ETIM 8
EC000058 - Empty cabinet
ETIM 9
EC000058 - Empty cabinet
eClass
V11.0 : 27142408
Feature: Rated Current 250 A → Benefit: Enables high-load distribution within a compact cabinet, reducing the number of cabinets needed and minimizing wiring complexity in machine rooms. Application: Suitable for mid-to-high power panels in automotive or process industries. | Feature: Floor installation mounting → Benefit: Simplifies installation in fixed facility layouts and permits stable, vibration-resistant mounting in busy plant floors. Application: Ideal for control panels in manufacturing lines. | Feature: IP54 protection, Grounded (Class I) housing → Benefit: Provides reliable dust and splash protection while ensuring protective earthing for safe operation in harsh environments. Application: Outdoor or semi-enclosed plant areas with strict safety requirements. | Feature: Powder-coated steel housing, 700x700 mm footprint → Benefit: Durable surface finish and standardized footprint streamline replacement and interoperability with existing Unikit systems. Application: New builds and retrofits in metalwork-heavy facilities. | Feature: Optional cover plate, CE/RoHS/REACH compliance → Benefit: Flexible enclosure customization with regulatory assurance, reducing compliance risk and enabling quicker authorization in audits. Application: Assembly lines, packaging cells, and machine control stations requiring formal conformity. | Feature: 1 flange opening, 0 conduit inlets → Benefit: Simplified interior layout and reduced assembly time, improving installation velocity and reducing field labor costs. Application: Panel distribution where conduit routing is minimal. | Feature: 700x700x150 mm dimensions, 32 kg weight → Benefit: Manageable size for space-constrained rooms with straightforward handling and installation. Application: Plant rooms with limited footprint.
Get a Quick Quote for a ABB 1SKU124152C0001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SKU124152C0001?
Enquire Now
FAQs
This cabinet is designed for Unikit-compatible setups with a 700x700 mm footprint and floor installation. It features one flange opening and no conduit inlets, facilitating straightforward mounting and clean internal wiring. Use the optional cover plate for additional enclosure sealing when needed, and plan for room to access the panel door for maintenance.
The enclosure is rated for 250 A, supporting medium to high current distribution. It provides IP54 protection and a grounded Class I housing, ensuring safety in dusty or splashing environments. The 700x700x150 mm size and 32 kg weight balance installation ease with sufficient internal space for standard busbars and components.
Yes. The steel, powder-coated housing offers durability, while IP54 protection and Class I grounding ensure reliable operation amid dust, splashes, and routine maintenance in factory floors. RoHS and REACH compliance further minimize regulatory risk in regulated industries, making it appropriate for machine rooms and outdoor-adjacent installations.
The cabinet carries CE declarations and conforms with EU RoHS and REACH requirements. It is associated with CMRT and WEEE classifications, and aligns with ETIM 8/9 references for empty cabinets while supporting standard eClass identification. This regulatory package supports audit readiness and interoperability in European facilities.
The robust steel construction and powder-coated finish deliver long service life with minimal corrosion concerns, reducing replacement frequency. Optional cover plates and straightforward mounting save installation time, lowering labor costs. CE/RoHS/REACH compliance plus a predictable maintenance footprint help justify lifecycle costs in capital projects and plant upgrades.
