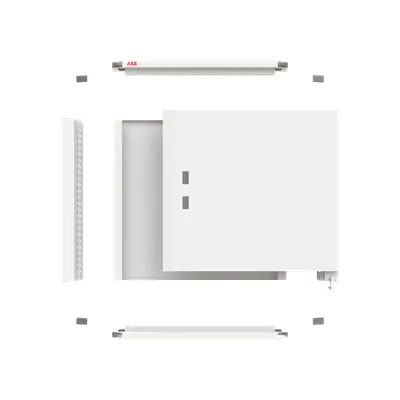

ABB 1SKU124152C0009 Sub Distribution Cabinet - IP54
Part Number: 1SKU124152C0009
Quick Summary
ABB 1SKU124152C0009 Sub Distribution Cabinet provides compact power distribution for industrial control panels. Engineers often struggle with space constraints, protective rating, and reliable grounding in Unikit kit deployments. This unit carries CE Declaration of Conformity, RoHS and REACH compliance, IP54 protection, and grounded Class I construction. Its powder-coated steel housing ensures durability in demanding environments, while the 700 x 700 mm footprint aligns with common cabinet grids. For OEMs and maintenance teams, it simplifies sourcing and accelerates installation within automation assemblies. Choosing a standard, CE-marked solution also supports streamlined procurement, training, and aftermarket support across plant teams. This translates into reduced project risk and faster time-to-value for new lines.
Product Information
Extended Description
1SKU124152C0009 ABB: GDUN150-01KP UNIKIT Kits for Empty 250A, plain door, wall mounted size 1, IP 41
Rated Current (In)
250 A
Number of Flange Openings
1
Number of Conduit Inlets
0
Cover Plate Type
Optional
Mounting Type
Floor installation
Door Type
Panel Door
Surface Finishing
Powder coating
Housing Material
Steel
RAL Number
RAL 7035 - Light Grey
Color
Grey
RoHS Information
EU RoHS Declaration of Conformity Unikit
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240129
REACH Declaration
EU REACH SVHC Declaration Unikit
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240129
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP54
Protection Class
Grounded (Class I)
Product Net Width
700 mm
Product Net Height
700 mm
Product Net Depth / Length
150 mm
Built-In Depth (t2)
150 mm
Thickness
Cabinet Plate 1.5 mm | Door Plate 1.5 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
32 kg
Declaration of Conformity - CE
Declaration of confirmity CE
ETIM 8
EC000058 - Empty cabinet
ETIM 9
EC000058 - Empty cabinet
eClass
V11.0 : 27142408
250 A rated current enables a compact main feeder for machines and control panels. This rating supports high-current distribution without trading footprint or accessibility. In Unikit kit deployments it reduces the number of cabinets required to service a line, delivering space savings and simpler wiring layouts. IP54 protection and grounded Class I construction protect internal components from dust and incidental moisture on factory floors. This combination provides reliable operation in semi-protected environments where humidity and dust can otherwise compromise performance. The enclosure supports safe operation and de-energization in routine maintenance. The housing uses steel with a durable powder-coated finish in RAL 7035 light grey. The coating adds corrosion resistance and uniform appearance across a modular automation install. The color, finish, and material choice also support clear visual identification and maintenance of the panel scheme. With a 700 mm by 700 mm footprint and a 150 mm built-in depth, the cabinet aligns with common 700 mm grid layouts and 1 flange opening configurations. The panel door design provides easy access while maintaining security and dust protection. An optional cover plate further enhances protection for sensitive components in rugged environments. RoHS and REACH declarations, along with CMRT reporting, ensure regulatory compliance in supply chains and manufacturing. ETIM EC000058 classification and EU WEEE alignment support procurement systems and end-user documentation. Overall, the cabinet is ready for integration into standard automation architectures, delivering predictable performance and lowering total cost of ownership.
Get a Quick Quote for a ABB 1SKU124152C0009
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SKU124152C0009?
Enquire Now
FAQs
ABB 1SKU124152C0009 is designed specifically for Unikit empty cabinet kits, offering a 700 mm x 700 mm footprint and 150 mm depth that match Unikit module grids. It supports floor installation with one flange opening and a panel door for straightforward access. The unit ships with powder-coated steel housing and a standard 1.5 mm cabinet plate, simplifying integration into existing Unikit-based control enclosures.
Key specs include a 250 A rated current, IP54 protection, and grounded Class I construction. The enclosure uses steel with a powder-coated finish (RAL 7035) and provides one flange opening, no conduit inlets, and a panel door option. Regulatory compliance is supported by EU RoHS and REACH declarations, with CE marking for European markets.
Yes. The 250 A high-current rating, 700x700 mm footprint, and floor-mounting capability make it ideal for machine builders and OEMs needing robust power distribution in automation panels. The panel-door access, dust and moisture protection, and Unikit compatibility support fast wiring, easy routine maintenance, and scalable panel configurations for evolving production lines.
The cabinet features CE Declaration of Conformity, EU RoHS, REACH declarations, CMRT, ETIM EC000058 classification, and WEEE alignment. IP54 protection and grounded Class I construction further demonstrate regulatory compliance and suitability for industrial environments, with documentation available for procurement and compliance audits.
A durable powder-coated steel enclosure reduces corrosion-related downtime, while standardization with Unikit kits lowers spare-parts complexity and training costs. The panel-door design simplifies preventive maintenance, and the 250 A rating minimizes the need for additional enclosures. Overall, improved reliability and faster installation translate to lower total cost of ownership and quicker time-to-value on automation projects.
