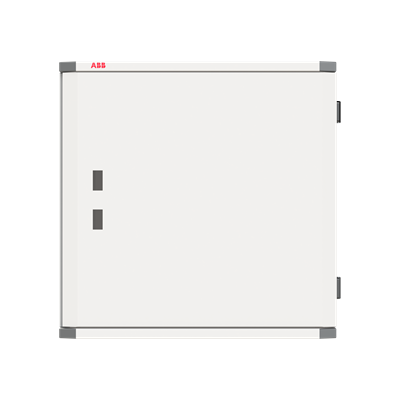

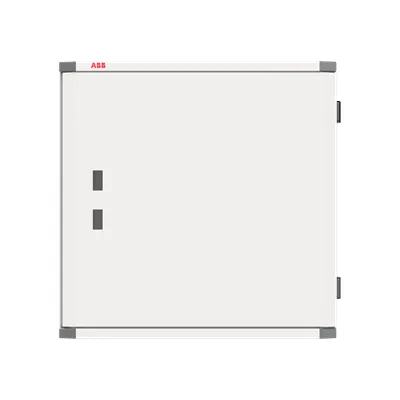

ABB 1SKU302152C0001 Unikit Cabinet - IP54
Part Number: 1SKU302152C0001
Quick Summary
Unikit Cabinet provides a rugged sub distribution enclosure for safe, reliable electrical distribution in industrial automation. Engineers often wrestle with tight spaces, corrosion risk, and difficult access in harsh manufacturing environments. It carries IP54 protection and grounded (Class I) housing, with EU RoHS and REACH declarations to simplify regulatory compliance. With a 700x700 mm footprint and powder-coated steel, it supports modular layouts while easing installation and future expansion. Designed for surface mounting and easy door access, it reduces wiring time and maintenance while improving overall enclosure integrity. That combination translates into lower downtime, predictable service intervals, and smoother procurement for EU projects.
Product Information
Extended Description
1SKU302152C0001 ABB: GDUN250-03 UNIKIT Complete built up Empty 630A, plain door, free standing size 3, IP 41
Number of Flange Openings
1
Cover Plate Type
Door
Mounting Type
Surface mounting
Door Type
Single
Surface Finishing
Powder coating
Housing Material
Steel
RAL Number
RAL 7035 - Light Grey
Color
Grey
RoHS Information
EU RoHS Declaration of Conformity Unikit
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240129
REACH Declaration
EU REACH SVHC Declaration Unikit
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240129
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP54
Protection Class
Grounded (Class I)
Product Net Width
700 mm
Product Net Height
700 mm
Product Net Depth / Length
300 mm
Thickness
Cabinet Plate 2 mm | Door Plate 2 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
42 kg
Declaration of Conformity - CE
Declaration of confirmity CE
ETIM 8
EC000058 - Empty cabinet
ETIM 9
EC000058 - Empty cabinet
eClass
V11.0 : 27142408
Sturdy steel enclosure with a powder-coated finish delivers robust protection against dust, moisture, and mechanical wear. This translates to extended enclosure life and reduced maintenance costs, making it ideal for sub-distribution and automation panels in manufacturing lines where reliability is critical. The surface mounting and single door design streamline installation and provide quick access for routine maintenance, reducing on-site labor and downtime while enabling fast retrofit of existing lines. A 700x700x300 mm footprint fits standard layouts, supporting modular control cabinets and straightforward cable management in tight plant spaces. RoHS and REACH compliance, along with CE declarations, simplify supplier qualification and regulatory adherence for European projects. ETIM EC000058 and eClass 27142408 classifications further aid procurement and cross-system compatibility. The cabinet thickness of 2 mm for both the cabinet and door plates contributes to mechanical integrity without unnecessary weight penalties.
Get a Quick Quote for a ABB 1SKU302152C0001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SKU302152C0001?
Enquire Now
FAQs
This model is designed for surface mounting with a plain door and a single flange opening, reducing on-site fabrication. The 700x700 mm footprint and 2 mm steel panels simplify alignment with standard modular layouts, while the free-standing option supports quick retrofits without specialized supports. installers also benefit from the door-access layout for fast wiring and cable management during commissioning.
Yes. The Unikit cabinet features EU RoHS Declaration of Conformity and EU REACH SVHC Declaration, with a RoHS Date of 20240129 and REACH Date of 20240129. These declarations confirm the absence of restricted substances above threshold levels and support regulatory compliance for European procurement and installation.
Ideal for sub-distribution and modular control panels in manufacturing lines, tool machines, and packaging lines. Its IP54 rating and grounded Class I design protect internal components from dust and moisture, while the 700x700 footprint fits common rack layouts, enabling scalable configurations and straightforward cable routing for control systems.
The cabinet provides IP54 protection and a grounded (Class I) housing. The powder-coated steel construction adds durability in harsh plant environments, while the single-door access facilitates maintenance and inspection, maintaining enclosure integrity during routine service.
With a 2 mm thick cabinet and door plates, surface-mount compatibility, and a single-door design, the unit simplifies wiring changes and panel upgrades. Its standardized footprint supports modular expansion, and its RoHS/REACH CE compliance streamlines procurement for ongoing maintenance projects and future system integrations.
