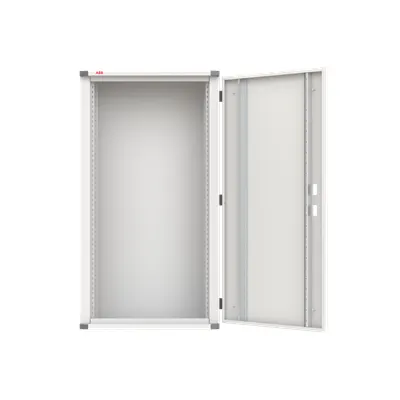

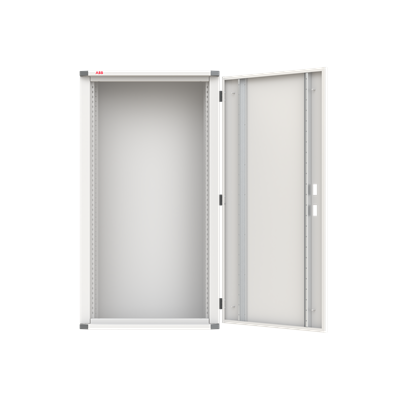

ABB 1SKU508152C0001 Unikit Sub Distribution Cabinet - IP54
Part Number: 1SKU508152C0001
Quick Summary
ABB 1SKU508152C0001 Unikit Sub Distribution Cabinet provides rugged, ready-to-install electrical distribution enclosures for industrial automation. This enclosure addresses common pain points such as limited space, dust ingress, and regulatory complexity when upgrading sub-distribution panels. It delivers CE declarations, EU RoHS and REACH compliance, and a reliable IP54-rated protective shell with grounded Class I construction, giving engineers confidence in long-term performance. With its powder-coated steel housing and a single door, it supports straightforward maintenance and consistent operation across harsh environments. In addition to surface mounting compatibility, the unit aligns with Unikit modular workflows, enabling scalable expansions and straightforward sourcing for panel builders and OEM projects.
Product Information
Extended Description
1SKU508152C0001 ABB: GDUN250-05 UNIKIT Complete built up Empty 630A, plain door, free standing size 5, IP 41
Number of Flange Openings
1
Number of Conduit Inlets
0
Cover Plate Type
Door
Mounting Type
Surface mounting
Door Type
Single
Surface Finishing
Powder coating
Housing Material
Steel
Cover Style
with Notch
RAL Number
RAL 7035 - Light Grey
Color
Grey
RoHS Information
EU RoHS Declaration of Conformity Unikit
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240129
REACH Declaration
EU REACH SVHC Declaration Unikit
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240129
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP54
Protection Class
Grounded (Class I)
Product Net Width
700 mm
Product Net Height
1300 mm
Product Net Depth / Length
300 mm
Built-In Depth (t2)
300 mm
Thickness
Cabinet Plate 1.5 mm | Door Plate 1.5 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
71 kg
Declaration of Conformity - CE
Declaration of confirmity CE
ETIM 8
EC000058 - Empty cabinet
ETIM 9
EC000058 - Empty cabinet
eClass
V11.0 : 27142408
Feature → Business Impact → Application: The IP54 protection and grounded Class I construction shield sensitive electronics from dust and moisture while ensuring safety, reducing field failures and maintenance costs in harsh factory environments; this makes the cabinet ideal for machine rooms and process lines where reliability is critical. Feature → Business Impact → Application: The generous footprint of 1300 mm x 700 mm x 300 mm supports organized internal layouts, enabling faster wiring, easier component upgrades, and standardized assemblies for panel builders. Feature → Business Impact → Application: A 630 A capacity rating supports downstream distribution needs, consolidating sub-distribution functions within a single, compliant enclosure and reducing cabinet sprawl on automation lines. Feature → Business Impact → Application: Surface mounting with a single door and a notch door option simplifies installation and servicing, accelerating commissioning and reducing downtime in seasonal maintenance windows. Feature → Business Impact → Application: Powder-coated steel with RAL 7035 grey finish provides durable aesthetics and corrosion resistance, lowering lifecycle costs and improving field acceptance in regulated environments. Feature → Business Impact → Application: EU RoHS, REACH, and CE declarations offer regulatory assurance for regulated industries, supporting traceability and risk management during audits. Feature → Business Impact → Application: The lightweight 71 kg per package design eases handling and reduces shipping costs while maintaining robust mechanical protection for rugged plant floors.
Get a Quick Quote for a ABB 1SKU508152C0001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SKU508152C0001?
Enquire Now
FAQs
To install the Unikit cabinet, prepare a flat, vibration-minimized surface, ensure level mounting, and use the recommended fasteners for steel enclosures. Align the single door and notch features for easy access, connect wiring through the exterior entry points, and verify the 1 flange opening is properly sealed. The surface-mount design supports quick panel integration and minimal footprint changes while maintaining IP54 protection.
The cabinet features a steel, powder-coated housing finished in RAL 7035 grey, with IP54 protection and grounded Class I construction. Internal dimensions are 1300 mm (H) x 700 mm (W) x 300 mm (D), with a 630 A capacity and a single door. It includes 1 flange opening and 0 conduit inlets, designed for surface mounting in automation environments.
Yes. The GDUN250-05 UNIKIT-based enclosure supports 630 A sub-distribution needs, offering robust mechanical protection and standardization for downstream panels. Its open-clear access and single-door design simplify wiring, while the 1 flange opening enables straightforward connections. This makes it suitable for main-to-sub distribution transitions within machine controls and process lines.
This cabinet carries CE declarations and EU RoHS and REACH compliance, ensuring regulatory alignment for European markets. It also has a WEEE classification as not in scope and ETIM EC000058 identifying it as an empty cabinet. The IP54 rating, RoHS/REACH declarations, and CE documentation support audits and sustainability commitments in regulated industries.
Ideal for sub-distribution and control-panel applications in automation facilities, the Unikit cabinet fits machine enclosures, process lines, and factory automation layouts requiring reliable IP54 protection, surface mounting, and compliant materials. Its 1300x700x300 mm footprint supports scalable architectures and consistent sourcing for OEMs and panel builders.
