ABB 1SKU610152C0019 Empty Enclosure - IP54 Class I
Part Number: 1SKU610152C0019
Quick Summary
ABB 1SKU610152C0019 Empty Enclosure is a rugged floor-standing cabinet that protects electrical gear in industrial environments. This design addresses common space, protection, and access challenges that can disrupt production schedules. With IP54 protection, grounded (Class I) construction, and CE, RoHS, and REACH declarations, it delivers reliable safety and lifecycle performance. The kit-friendly Unikit-250 compatibility, powder-coated steel housing, and a transparent door option support efficient installation, easy maintenance, and long-term operational value for automation installers and plant engineers.
Product Information
Extended Description

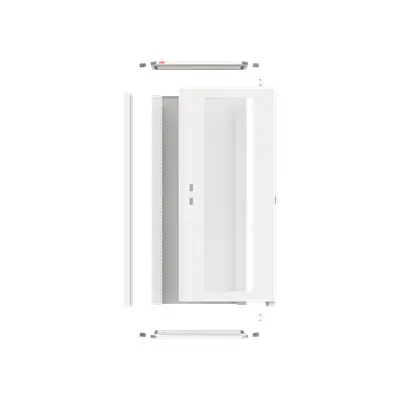

1SKU610152C0019 ABB: Unikit-250 free standing size 55 (1600x700x300 HxWxD mm), in kit form, transparent door, IP41
Rated Current (In)
630 A
Number of Flange Openings
1
Number of Conduit Inlets
0
Cover Plate Type
Optional
Mounting Type
Floor installation
Door Type
Panel Door
Surface Finishing
Powder coating
Door Surface Finishing
Transparent
Housing Material
Steel
RAL Number
RAL 7035 - Light Grey
Color
Grey
RoHS Information
EU RoHS Declaration of Conformity Unikit
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240129
REACH Declaration
EU REACH SVHC Declaration Unikit
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240129
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP54
Protection Class
Grounded (Class I)
Product Net Width
700 mm
Product Net Height
1600 mm
Product Net Depth / Length
300 mm
Built-In Depth (t2)
300 mm
Thickness
Cabinet Plate 1.5 mm | Door Plate 1.5 mm
Declaration of Conformity - CE
Declaration of confirmity CE
ETIM 8
EC000058 - Empty cabinet
ETIM 9
EC000058 - Empty cabinet
eClass
V11.0 : 27142408
Feature: Rated Current (I_n) 630 A. Business Impact: Supports high-current drives and control hardware without oversizing, reducing cabinet sprawl and total cost of ownership. Application: Suitable for motor drives, PLCs, and distribution gear within a single robust enclosure. Feature: One flange opening. Business Impact: Simplifies clean cable entry and routing while enabling future expansion without rework. Application: Control panels requiring orderly ingress and scalable wiring layouts. Feature: Floor installation mounting. Business Impact: Provides a stable base that minimizes vibration and movement in challenging environments, extending component life. Application: Factory floors and plant spaces where equipment endures mechanical stress. Compatibility note: designed to work with Unikit-250 free standing kit form for rapid deployment. Feature: Panel door with optional cover plate and transparent door variant. Business Impact: Improves access and visibility during maintenance, reducing downtime and risk of mis-wiring. Application: Electrical cabinets housing motors, drives, and I/O modules on busy lines. Feature: Steel housing with powder coating (RAL 7035 Grey). Business Impact: Delivers durable, corrosion-resistant protection suitable for dusty and humid environments, lowering replacement frequency. Application: Industrial environments where longevity and appearance matter for uptime and compliance. Feature: Environmental and safety credentials (IP54, Class I). Business Impact: Ensures dust and water ingress protection while maintaining proper grounding for personnel safety. Application: Enclosures in manufacturing cells and automated lines requiring reliable environmental performance.
Get a Quick Quote for a ABB 1SKU610152C0019
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SKU610152C0019?
Enquire Now
FAQs
This floor-standing enclosure is designed for bolt-down installation on factory floors and accommodates Unikit-250 free standing kit form. With a single flange opening and 1.5 mm cabinet/d door plate thickness, electricians can route cables cleanly and integrate existing drives, PLCs, and I/O modules without major rework, reducing commissioning time.
Key specs include a rated current of 630 A, IP54 protection, and grounded (Class I) construction. The steel housing with powder coating provides reliable protection against dust and moisture, while the door design (panel or transparent) supports visibility and quick inspection of internal components.
Yes. The enclosure employs a robust steel cabinet with powder coating, IP54 ingress protection, and Class I grounding. Combined with RoHS and REACH declarations, it meets common regulatory and reliability requirements for metal enclosures operating in dusty, humid, or wash-down capable spaces.
Ideal for industrial automation, motor drives, PLC-based control systems, and switchgear assemblies. The 1600x700x300 mm footprint, 630 A capacity, and Unikit-250 compatibility make it well-suited for plants seeking scalable, durable control cabinets with easy maintenance and clear access for technicians.
The powder-coated steel exterior reduces corrosion-related downtime, and the option for a transparent door speeds visual inspections. Combined with CE/RoHS/REACH compliance and long service life, this cabinet supports lower lifecycle costs, reduced maintenance intervals, and improved uptime for automated production lines.
