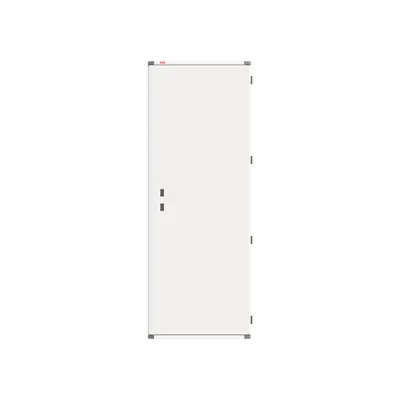

ABB 1SKU612152C0001 Unikit Cabinet Grounded Class I IP54
Part Number: 1SKU612152C0001
Quick Summary
ABB 1SKU612152C0001 Unikit cabinet serves as a rugged sub-distribution enclosure for industrial control panels. Engineers face space constraints, mounting flexibility challenges, and the need for durable protection against dust, humidity, and impacts. This unit delivers CE conformity, IP54 ingress protection, and EU RoHS/REACH compliance to support safe, regulatory-ready operations. Its floor-standing footprint, powder-coated steel surface in RAL 7035, and transparent door finish simplify maintenance and future upgrades. By aligning with ABB Unikit accessories, it accelerates installation, reduces risk, and supports scalable panel infrastructure for manufacturing lines.
Product Information
Extended Description
1SKU612152C0001 ABB: GDUN250-06 UNIKIT Complete built up Empty 630A, plain door, free standing size 6, IP 41
Rated Current (In)
630 A
Number of Flange Openings
1
Number of Conduit Inlets
0
Cover Plate Type
Optional
Mounting Type
Floor installation
Door Type
Panel Door
Surface Finishing
Powder coating
Door Surface Finishing
Transparent
Housing Material
Steel
RAL Number
RAL 7035 - Light Grey
Color
Grey
RoHS Information
EU RoHS Declaration of Conformity Unikit
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240129
REACH Declaration
EU REACH SVHC Declaration Unikit
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240129
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP54
Protection Class
Grounded (Class I)
Product Net Width
700 mm
Product Net Height
1900 mm
Product Net Depth / Length
300 mm
Built-In Depth (t2)
300 mm
Thickness
Cabinet Plate 1.5 mm | Door Plate 1.5 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
96 kg
Declaration of Conformity - CE
Declaration of confirmity CE
ETIM 8
EC000058 - Empty cabinet
ETIM 9
EC000058 - Empty cabinet
eClass
V11.0 : 27142408
630 A nominal current rating enables high-density power distribution within a single cabinet, reducing the number of enclosures and simplifying wiring. This supports faster assembly and lower installation costs in motor control and sub-distribution applications. The 1900 mm height, 700 mm width, and 300 mm depth provide a spacious interior for multiple devices and neat cabling. This footprint suits compact control panels in machine-building and process lines, where space is at a premium. IP54 protection offers reliable ingress protection against dust and water spray in controlled environments. For indoor plant rooms and lean manufacturing floors, this reduces commissioning risk and extends service life. Grounded (Class I) housing ensures a robust earth path and safer fault clearing, supporting compliance with common electrical safety standards. Powder-coated steel with a RAL 7035 finish delivers durable protection against corrosion and easy cleaning. The transparent door surface aids inspection and reduces maintenance time. Panel door design with optional cover plate provides flexible protection and easy access. Floor-standing mounting ensures stable installation in workshops or control rooms, and the design supports future upgrades as line needs evolve.
Get a Quick Quote for a ABB 1SKU612152C0001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SKU612152C0001?
Enquire Now
FAQs
This floor-standing cabinet is designed for indoor use with a 1900 mm height, 700 mm width, and 300 mm depth. Plan for floor mounting, account for 0 conduit inlets, and consider adding an optional door cover plate if future wiring needs expand. Ensure a clean, dry environment to maintain IP54 protection.
Key specs include a rated current of 630 A, one flange opening, zero conduit inlets, and a panel door with optional cover plate. The housing is steel with a powder-coated finish (RAL 7035).
IP54 protection and a grounded Class I design make it suitable for indoor controlled environments and semi-protected areas. For outdoor exposure, additional enclosure protection or climate control may be required.
It carries CE Declaration of Conformity, EU RoHS compliance, and EU REACH compliance, ensuring regulatory readiness for many industrial settings.
The robust powder-coated steel construction, large internal footprint, and compatibility with Unikit accessories reduce maintenance and retrofit costs, while enabling scalable panel infrastructure and faster installation across manufacturing lines.
