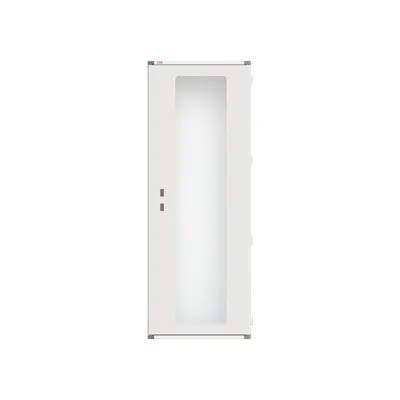

ABB 1SKU612152C0011 Unikit Floor-standing Cabinet - IP54
Part Number: 1SKU612152C0011
Quick Summary
ABB Unikit 1SKU612152C0011 floor-standing cabinet delivers a robust sub-distribution enclosure for industrial control panels. Engineers often grapple with limited space, inconsistent protection, and long lead times when upgrading plant electrical enclosures. This cabinet offers IP54 protection in a grounded Class I enclosure and includes CE, RoHS, and REACH declarations to support regulatory compliance and safer operation. Designed to integrate with ABB's Unikit system, it accelerates scalable panel builds, reduces wiring complexity, and lowers total cost of ownership for OEMs and end users alike. With a powder-coated steel housing, a transparent door for quick inspections, and a 700 mm width, it suits many plant layouts. The empty cabinet format minimizes procurement steps and simplifies field upgrades, while its sturdy build helps minimize downtime and maintenance costs.
Product Information
Extended Description
1SKU612152C0011 ABB: GDUN250-06T UNIKIT Complete built up Empty 630A, transparent door, free standing size 6, IP 41
Rated Current (In)
630 A
Number of Flange Openings
1
Number of Conduit Inlets
0
Cover Plate Type
Optional
Mounting Type
Floor installation
Door Type
Panel Door
Surface Finishing
Powder coating
Door Surface Finishing
Transparent
Housing Material
Steel
RAL Number
RAL 7035 - Light Grey
Color
Grey
RoHS Information
EU RoHS Declaration of Conformity Unikit
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240129
REACH Declaration
EU REACH SVHC Declaration Unikit
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240129
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP54
Protection Class
Grounded (Class I)
Product Net Width
700 mm
Product Net Height
1900 mm
Product Net Depth / Length
300 mm
Built-In Depth (t2)
300 mm
Thickness
Cabinet Plate 1.5 mm | Door Plate 1.5 mm
Package Level 1 Units
1 piece
Package Level 1 Gross Weight
96 kg
Declaration of Conformity - CE
Declaration of confirmity CE
ETIM 8
EC000058 - Empty cabinet
ETIM 9
EC000058 - Empty cabinet
eClass
V11.0 : 27142408
Feature 630 A rated current → Business Impact Supports large control circuits within a single enclosure, reducing cabinet sprawl and simplifying panel layout. Application Ideal for mid-to-large sub-distribution boards in manufacturing lines and process automation. The cabinet’s 1 flange opening and 0 conduit inlets provide a clean, serviceable interface for selective wiring strategies and future expansions. Feature Floor installation mounting → Business Impact Enables flexible placement in tight factory layouts, improving space utilization. Application Suitable for free-standing installations in switchgear rooms and control areas where stability and accessibility matter. Feature IP54 protection + Grounded (Class I) → Business Impact Delivers reliable protection against dust and moisture while ensuring safe earthing, lowering risk during commissioning and operation. Application Essential for indoor industrial environments with occasional wash-down or dusty conditions. Feature Panel Door with Transparent Surface → Business Impact Improves visibility of internal components and status indicators, reducing inspection time and improving safety. Application Ideal for ongoing maintenance in busy production lines. Feature Steel housing + Powder coating + RAL 7035 Grey → Business Impact Enhances corrosion resistance and plant aesthetics, reducing coating maintenance costs. Application Suitable for harsh environments typical of metalworking, food and beverage, and packaging lines. Feature 700 mm W x 1900 mm H x 300 mm D dimensions → Business Impact Provides a compact yet spacious interior for equipment, streamlining component selection and wiring. Application Fits standard sub-distribution footprints in many plants. Feature 630 A rated current + 96 kg package weight → Business Impact Supports heavy-duty applications while maintaining structural rigidity, lowering vibration-related wear. Application Recommended for high-current drives and controller assemblies in automation systems. Feature RoHS and REACH declarations + CE declaration → Business Impact Ensures regulatory compliance and easier supplier audits, reducing risk in procurement and downstream manufacturing. Application Critical for global projects with strict compliance requirements.
Get a Quick Quote for a ABB 1SKU612152C0011
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SKU612152C0011?
Enquire Now
FAQs
The 1SKU612152C0011 is designed to integrate with ABB's Unikit family as a floor-standing, empty cabinet for sub-distribution. It matches Unikit's modular approach, providing a 1 flange opening for controlled cable entry and a standard 700 mm width that aligns with common Unikit panel layouts, enabling quick assembly and scalable configurations.
Key specs include a 630 A rated current, grounded Class I enclosure, and IP54 protection. The cabinet supports robust internal wiring for high-current feeders and reduces the need for multiple smaller enclosures. The combination of these specs improves reliability and simplifies protection coordination in mid-to-large control circuits.
Yes. The steel housing with powder coating and IP54 rating provides durable protection against dust and moisture in indoor industrial settings. The transparent door and robust build support maintenance visibility and long service life, while the floor-standing mounting offers stable integration into existing plant layouts.
Absolutely. The cabinet carries a CE declaration and RoHS/REACH compliance statements, aligning with European regulatory standards. This helps ensure regulatory alignment across global supply chains and simplifies downstream certification for subsystem panels and final assemblies.
Prioritize floor-standing placement in accessible zones, use the transparent door for quick visual checks, and plan for a single flange entry to minimize cabling complexity. The 700×1900×300 mm footprint supports efficient space usage, while the 630 A rating accommodates high-current drives, reducing the number of cabinets required and lowering total cost of ownership.
