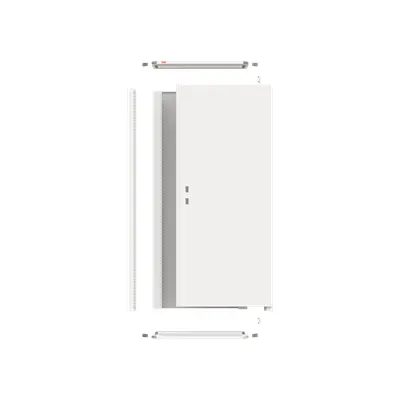

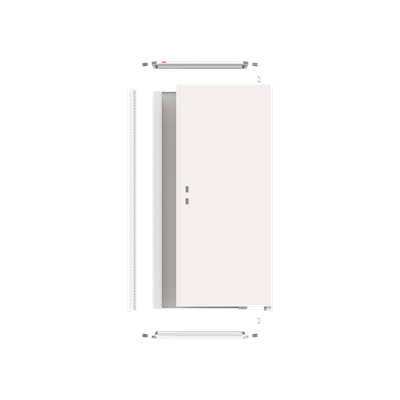

ABB 1SKU612152C5901 Empty Enclosure - IP54
Part Number: 1SKU612152C5901
Quick Summary
ABB Empty Enclosure is a robust, floor-standing cabinet designed to protect control gear in demanding industrial environments. It provides a secure, dust- and moisture-resistant housing for MCCs and automation electronics, helping minimize unplanned downtime. Built as a grounded (Class I) enclosure with IP54 protection, the unit also carries CE conformity to support compliant installations. The powder-coated steel body with a transparent door surface ensures durability and visibility of internal components, while the 1900 mm height and 700 mm width optimize panel layouts. This enclosure is well-suited for panel builders and machine builders seeking reliable, scalable protection with straightforward mounting and maintenance processes. For projects requiring durable metal cabinets, it aligns with RoHS/REACH expectations and ETIM classifications.
Product Information
Extended Description
1SKU612152C5901 ABB: Unikit-250 free standing size 06 (1900x800x300 HxWxD mm), in kit form,, plain door, IP41
Rated Current (In)
630 A
Number of Flange Openings
1
Number of Conduit Inlets
0
Cover Plate Type
Optional
Mounting Type
Floor installation
Door Type
Panel Door
Surface Finishing
Powder coating
Door Surface Finishing
Transparent
Housing Material
Steel
RAL Number
RAL 7035 - Light Grey
Color
Grey
RoHS Information
EU RoHS Declaration of Conformity Unikit
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240129
REACH Declaration
EU REACH SVHC Declaration Unikit
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240129
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP54
Protection Class
Grounded (Class I)
Product Net Width
700 mm
Product Net Height
1900 mm
Product Net Depth / Length
300 mm
Built-In Depth (t2)
300 mm
Thickness
Cabinet Plate 1.5 mm | Door Plate 1.5 mm
Declaration of Conformity - CE
Declaration of confirmity CE
ETIM 8
EC000058 - Empty cabinet
ETIM 9
EC000058 - Empty cabinet
eClass
V11.0 : 27142408
630 A rated current supports larger drives and feeder wiring inside a single cabinet, reducing panel-count and wiring complexity on the shop floor. This enables more compact, efficient control architectures with improved thermal management in crowded environments. With one flange opening and zero conduit inlets, installation remains tidy and scalable for future expansions. The optional cover plate lets you adapt the enclosure to evolving subsystems without major modifications or resealing. Built from steel with a durable powder-coated finish and a transparent door surface, the cabinet resists impact and corrosion while keeping diagnostics visible. The powder coating in RAL 7035 light grey simplifies fleet-wide maintenance and color matching across installations. Floor installation as mounting type provides a stable base for heavy panels and facilitates quick anchoring on factory floors. The panel door design offers convenient access to internal components, while IP54 protection and grounded Class I construction ensure safe operation in typical industrial environments. Regulatory compliance is supported by EU RoHS and REACH declarations, CE conformity, and ETIM/eClass classifications, aiding procurement and lifecycle planning. With a 1.5 mm cabinet plate and 1.5 mm door plate, the enclosure delivers a rigid, lightweight solution you can deploy with standard cabinet accessories and common mounting rails.
Get a Quick Quote for a ABB 1SKU612152C5901
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SKU612152C5901?
Enquire Now
FAQs
This enclosure is designed for floor-mounted installation with a single flange opening for straightforward entry and no conduit inlets, keeping wiring neat. The optional cover plate enables future subsystem additions without resealing or repainting. Compatibility with common panel accessories and mounting rails simplifies integration into existing factory layouts and reduces installation time.
The cabinet features a 630 A rated current, suitable for larger drives and feeders, and IP54 ingress protection with grounded (Class I) construction. CE conformity ensures regulatory compliance, while the powder-coated steel body provides durability in demanding environments. These specs support reliable operation in manufacturing and process control applications.
Yes. With IP54 protection, the enclosure offers dust ingress protection and limited moisture resistance suitable for typical factory floors. The grounded Class I construction adds electrical safety for panels in automated lines. It is well-suited for machine builders and panel shop deployments that require robust protection without moving to higher IP ratings.
The enclosure carries CE conformity, EU RoHS and REACH declarations, and ETIM 8/9 classifications, plus eClass 27142408. WEEE status indicates the product is not within WEEE scope. These certifications support procurement, regulatory reporting, and end-of-life planning for industrial installations.
The 1.5 mm cabinet and door plates provide rigidity without excessive weight, while powder coating extends coating life and reduces repaint cycles. The rugged build, IP54 protection, and RoHS/REACH CE compliance collectively reduce downtime, simplify maintenance scheduling, and improve lifecycle predictability, contributing to a lower total cost of ownership in automated environments.
