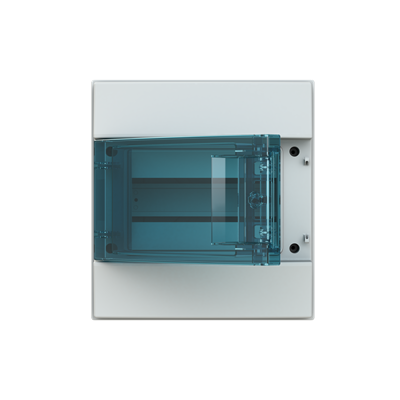

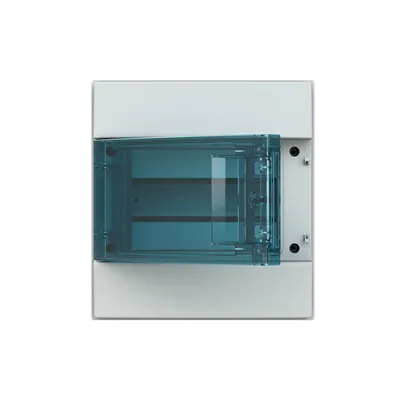

ABB 1SL1201A00 Consumer unit for Industrial Control - IP65
Part Number: 1SL1201A00
Quick Summary
ABB 1SL1201A00 is a surface-mounted consumer unit designed for compact electrical distribution in industrial control panels. It solves the common pain of custom enclosures by delivering an 8‑DIN‑module, ready-to-mount solution that speeds panel builds. This enclosure features IP65 protection for dust and water, CE conformity, and RoHS/REACH compliance, with a transparent door that enables quick status checks. By standardizing on this module, engineers and procurement teams gain faster installation, easier maintenance, and safer, regulator-ready enclosures for harsh environments. The 8‑DIN layout, light grey finish, and compatible accessories support scalable distributions while keeping total cost under control.
Product Information
Extended Description
1SL1201A00 ABB: MISTRAL65 transparent door 8 DIN modules GWT 650°C
Power Loss
Δt = 30K 20 W
Number of Line Terminals
0
Number of Rows
1
Closure Type
Snap Function
Configuration Type
Assembled with DIN-rail
Cover Plate Type
Door
Mounting Type
Surface mounting
Door Type
Single
Door Surface Finishing
Transparent
Enclosure Material
thermoplastic
Housing Material
Plastic
Transparent Door
Yes
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
8
RAL Number
RAL 7035 - Light Grey
Color
Light grey
Terminal Type
No Terminals
RoHS Information
EU Declaration of Conformity MISTRAL65 GWT 650°C
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20221015
REACH Declaration
REACh Regulation Enclosures - ABB S.p.A. Vittuone
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240429
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP65
Protection Class
Isolated (Class II)
Environmental Information
1SLC801013D0201
Width in Number of Modular Spacings
8
Product Net Width
232 mm
Product Net Height
250 mm
Product Net Depth / Length
155 mm
Product Net Weight
1.07 kg
Built-In Depth (t2)
98 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
12.82 kg
E-Number (Norway)
1700226
Declaration of Conformity - CE
EU Declaration of Conformity MISTRAL65 GWT 650°C
Instructions and Manuals
Instruction manual M65&M65H
Data Sheet, Technical Information
1SLC801013D0201
Building Information Modeling – BIM
ABB-BIM MISTRAL 65/65H and Switchboard
ETIM 8
EC000214 - Small distribution board
ETIM 9
EC000214 - Small distribution board
eClass
V11.0 : 27142409
Object Classification Code
U
Feature: Surface mounting with built-in 8 DIN module capacity enables compact, scalable panel layouts. Benefit: Reduces space requirements and simplifies future expansions, accelerating time-to-market for control panels in confined environments. Application: Suitable for compact switchboards and distribution enclosures where external footprint matters. Feature: Transparent single door and closed cover style provide immediate visual inspection without opening the enclosure. Benefit: Improves maintenance efficiency and safety by reducing unintended exposure during diagnostics. Application: Ideal for frequent status checks in high-availability industrial settings. Feature: Thermoplastic enclosure with light grey RAL 7035 finish and 232x250x155 mm footprint. Benefit: Durable, lightweight housing that resists environmental exposure while maintaining aesthetic consistency in an OEM assembly. Application: Preferred for cleanroom-adjacent or factory-floor installations where color coding and visibility are important. Feature: IP65 protection and Class II isolation with no terminals and surface-mount mounting. Benefit: Enhances safety and reliability in dusty or damp environments; simplifies wiring and reduces terminal-related failure points. Application: Widely used in harsh production lines and outdoor-rated switchgear cabinets. Feature: 8 DIN place units and DIN-rail assembly compatibility. Benefit: Facilitates rapid integration of internal components and standard module compatibility, speeding configuration changes. Application: Suitable for modular control panels and expanding distribution boards in evolving processes. Feature: Compliance and sustainability disclosures including RoHS, REACH, and CE declarations. Benefit: Minimizes regulatory risk and simplifies supplier documentation for global deployments. Application: Critical for multinational manufacturing sites and regulated industries.
Get a Quick Quote for a ABB 1SL1201A00
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SL1201A00?
Enquire Now
FAQs
The enclosure is designed for surface mounting to provide a compact exterior footprint. Inside, it accommodates 8 DIN modules and supports standard DIN-rail components to simplify wiring and internal layout. No terminal blocks are included externally, streamlining installation and reducing external wiring errors.
Key specs include IP65 protection, 8 DIN place units in a single row, dimensions 250 mm x 232 mm x 155 mm, net weight around 1.07 kg, and a thermoplastic enclosure with a transparent door. The product is CE compliant and RoHS/REACH certified, making it suitable for regulated industrial environments.
Yes. With IP65 sealing and Class II isolation, it withstands dust and water ingress in demanding settings. Certifications include CE conformity, RoHS compliance per EU directives, and REACH declarations, along with WEEE and ETIM/eClass classifications where applicable for procurement and integration.
Best suited for compact industrial control panels, small distribution boards, and switchgear housings where 8 DIN modules must be housed reliably. The transparent door aids rapid diagnostics, while the surface-mount design supports modular panel builds and quick scaling as process requirements evolve.
Maintenance is streamlined by the transparent door for quick visual checks, reducing fault-finding time. The lightweight thermoplastic body lowers handling costs, while CE, RoHS, and REACH compliance reduces regulatory risk. Overall, installation time decreases, and predictable, scalable enclosure design translates to lower total cost of ownership.
