1SL2402A00
Part Number: 1SL2402A00
Product Information
Extended Description

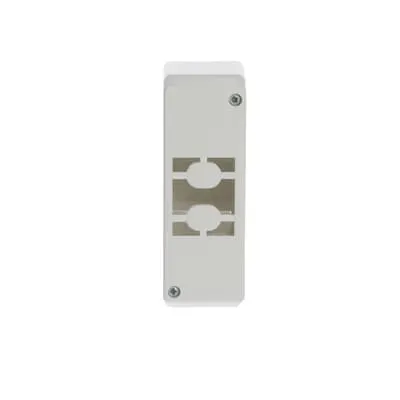

1SL2402A00 ABB: IP40 WALL-MOUNTING COVER 2M R9016;IP40 WALL-MOUNTING COVER 2M R9016
Power Loss
1 W
Number of Rows
1
Mounting Type
Wall mounting
Enclosure Material
thermoplastic
Material
thermoplastic
DIN Place Units
2
RAL Number
RAL 9016 - Traffic White
Color
white
RoHS Information
EU Declaration of Conformity IP40 Wall mounting Covers Consumer Units
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20221015
REACH Declaration
REACh Regulation Enclosures - ABB S.p.A. Vittuone
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240429
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP40
Protection Class
Isolated (Class II)
Environmental Information
1SLC001001D0905
Product Net Width
50 mm
Product Net Height
140 mm
Product Net Depth / Length
65 mm
Product Net Weight
0.094 kg
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
4.219 kg
E-Number (Sweden)
2290110
Declaration of Conformity - CE
EU Declaration of Conformity IP40 Wall mounting Covers Consumer Units
Data Sheet, Technical Information
1SLC001001D0905
ETIM 8
EC000775 - Cover for distribution board
ETIM 9
EC000775 - Cover for distribution board
eClass
V11.0 : 27142414
Object Classification Code
U
