1SLM004100A1209
Part Number: 1SLM004100A1209
Product Information
Extended Description

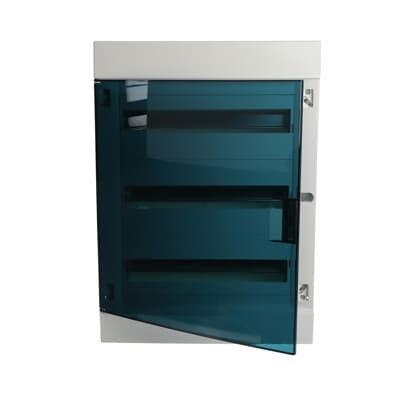

1SLM004100A1209 ABB: MISTRAL41F flush transparent door 54M;MISTRAL41F transparent door 54M
Power Loss
59 W
Number of Line Terminals
0
Number of Rows
3
Closure Type
Snap Function
Configuration Type
assembled with device carrier
Cover Plate Type
Door
Mounting Type
Flush mounting
Door Type
Single
Door Surface Finishing
Transparent
Enclosure Material
thermoplastic
Housing Material
Plastic
Transparent Door
Yes
Cover Style
with Notch
DIN Place Units
54
RAL Number
RAL 9016 - Traffic White
Color
Traffic white
Terminal Type
No Terminals
RoHS Information
EU Declaration of Conformity MISTRAL 41F GWT 650°C
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20221015
REACH Declaration
REACh Regulation Enclosures - ABB S.p.A. Vittuone
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240429
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP41
Protection Class
Isolated (Class II)
Width in Number of Modular Spacings
18
Product Net Width
430 mm
Product Net Height
600 mm
Product Net Depth / Length
127 mm
Product Net Weight
4.05 kg
Built-In Depth (t2)
93 mm
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
4.05 kg
Declaration of Conformity - CE
EU Declaration of Conformity MISTRAL 41F GWT 650°C
Instructions and Manuals
Installation instruction MISTRAL41 F
Building Information Modeling – BIM
ABB-BIM MISTRAL 41 F for brick walls
ETIM 8
EC000214 - Small distribution board
ETIM 9
EC000214 - Small distribution board
eClass
V11.0 : 27142409
Object Classification Code
U
