1SLM004100A1402
Part Number: 1SLM004100A1402
Product Information
Extended Description

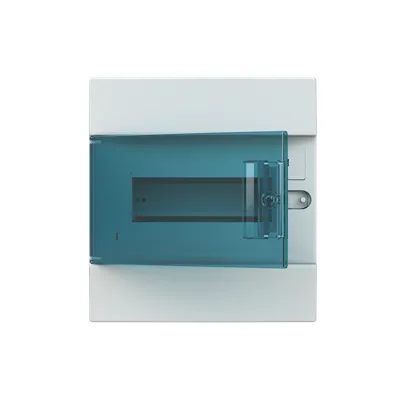

1SLM004100A1402 ABB: MISTRAL41F flush 850 transparent door 8M;MISTRAL41F 850 transparent door 8M
Power Loss
18 W
Number of Line Terminals
0
Number of Rows
1
Closure Type
Snap Function
Configuration Type
Assembled with DIN-rail
Cover Plate Type
Door
Mounting Type
Hollow wall
Door Type
Single
Door Surface Finishing
Transparent
Enclosure Material
thermoplastic
Housing Material
Plastic
Transparent Door
Yes
Cover Style
with Notch
DIN Place Units
8
RAL Number
RAL 9016 - Traffic White
Color
Traffic white
Terminal Type
No Terminals
RoHS Information
EU Declaration of Conformity MISTRAL 41F GWT 850°C
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20221015
REACH Declaration
REACh Regulation Enclosures - ABB S.p.A. Vittuone
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240429
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP41
Protection Class
Isolated (Class II)
Width in Number of Modular Spacings
8
Product Net Width
232 mm
Product Net Height
250 mm
Product Net Depth / Length
107 mm
Product Net Weight
0.83 kg
Built-In Depth (t2)
73 mm
Package Level 1 Units
box 12 piece
Package Level 1 Gross Weight
11 kg
Declaration of Conformity - CE
EU Declaration of Conformity MISTRAL 41F GWT 850°C
Instructions and Manuals
Installation instruction MISTRAL41 F
Building Information Modeling – BIM
ABB-BIM MISTRAL 41 F for hollow walls
ETIM 8
EC000214 - Small distribution board
ETIM 9
EC000214 - Small distribution board
eClass
V11.0 : 27142409
Object Classification Code
U
