1SLM004102A1110
Part Number: 1SLM004102A1110
Product Information
Extended Description

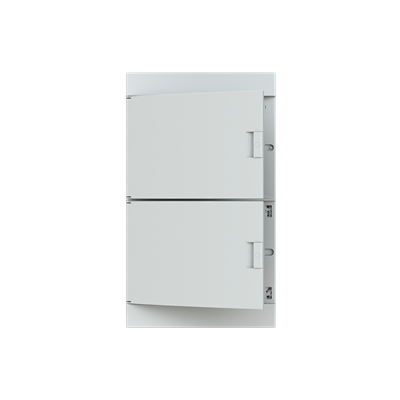

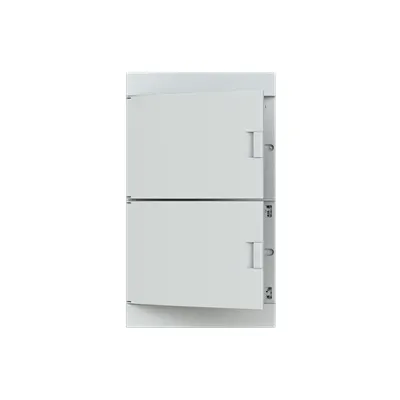

1SLM004102A1110 ABB: Mistral41F flush opaque door 72M 84SM;Mistral41F flush opaque door 72M 84SM
Number of Rows
4
Closure Type
Snap Function
Configuration Type
assembled with device carrier
Cover Plate Type
Door
Mounting Type
Flush mounting
Door Type
Single
Door Surface Finishing
Opaque
Housing Material
Plastic
Cover Style
with Notch
DIN Place Units
72
RAL Number
RAL 9016 - Traffic White
Color
Traffic white
Terminal Type
Screw Terminals
RoHS Information
EU Declaration of Conformity Mistral 41F with terminals
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20221015
REACH Declaration
REACh Regulation Enclosures - ABB S.p.A. Vittuone
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240429
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP41
Protection Class
Isolated (Class II)
Width in Number of Modular Spacings
18
Product Net Width
430 mm
Product Net Height
735 mm
Product Net Depth / Length
127 mm
Product Net Weight
5.300 kg
Built-In Depth (t2)
93 mm
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
5.300 kg
Declaration of Conformity - CE
EU Declaration of Conformity Mistral 41F with terminals
Instructions and Manuals
Installation instruction MISTRAL41 F
Building Information Modeling – BIM
ABB-BIM MISTRAL 41 F for brick walls
ETIM 8
EC000214 - Small distribution board
ETIM 9
EC000214 - Small distribution board
eClass
V11.0 : 27142409
