1SLM004102A3102
Part Number: 1SLM004102A3102
Product Information
Extended Description

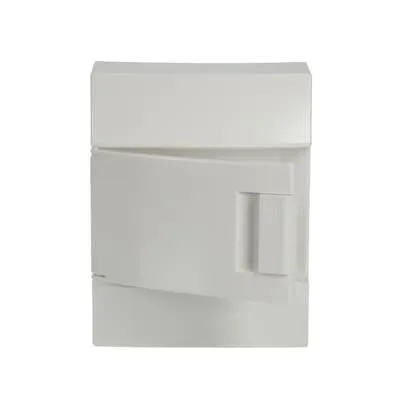

1SLM004102A3102 ABB: Mistral41W 650 opaque door 8M 12SM;Mistral41W 650 opaque door 8M 12SM
Number of Rows
1
Closure Type
Snap Function
Configuration Type
Assembled with DIN-rail
Cover Plate Type
Door
Mounting Type
Surface mounting
Door Type
Single
Door Surface Finishing
Opaque
Housing Material
Plastic
Cover Style
with Notch
DIN Place Units
8
RAL Number
RAL 9016 - Traffic White
Color
White
Terminal Type
Screw Terminals
RoHS Information
9AKK108470A6164
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20241218
REACH Declaration
REACh Regulation Enclosures - ABB S.p.A. Vittuone
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240429
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP41
Protection Class
Isolated (Class II)
Width in Number of Modular Spacings
8
Product Net Width
207 mm
Product Net Height
262 mm
Product Net Depth / Length
119 mm
Product Net Weight
0.605 kg
Built-In Depth (t2)
74 mm
Package Level 1 Units
box 7 piece
Package Level 1 Gross Weight
6.355 kg
Declaration of Conformity - CE
9AKK108470A6164
Instructions and Manuals
Instruction manual M41W
Building Information Modeling – BIM
ABB-BIM MISTRAL 41 W
ETIM 8
EC000214 - Small distribution board
ETIM 9
EC000214 - Small distribution board
eClass
V11.0 : 27142409
