1SLM006500A2212
Part Number: 1SLM006500A2212
Product Information
Extended Description

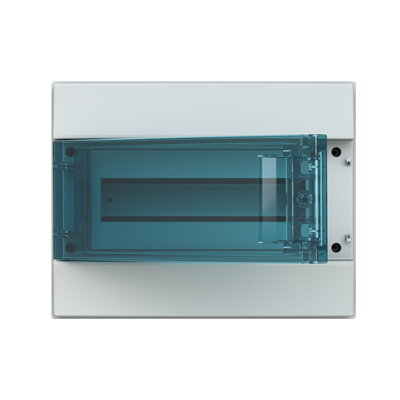

1SLM006500A2212 ABB: MISTRAL65H transparent door 12M;MISTRAL65H CONSUMER UNIT transparent door 12M
Suitable for Product Class
MISTRAL65H
Power Loss
Δt = 30K 27 W
Number of Rows
1
Closure Type
Snap Function
Configuration Type
Assembled with DIN-rail
Cover Plate Type
Door
Mounting Type
Surface mounting
Door Type
Single
Door Surface Finishing
Transparent
Housing Material
Plastic
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
12
RAL Number
RAL 7035 - Light Grey
Color
Light grey
Terminal Type
No Terminals
RoHS Information
EU Declaration of Conformity MISTRAL65H
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20221015
REACH Declaration
REACh Regulation Enclosures - ABB S.p.A. Vittuone
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240429
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Degree of Protection
IP65
Protection Class
Isolated (Class II)
Width in Number of Modular Spacings
12
Product Net Width
320 mm
Product Net Height
250 mm
Product Net Depth / Length
155 mm
Product Net Weight
1.4 kg
Built-In Depth (t2)
98 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.537 kg
Declaration of Conformity - CE
EU Declaration of Conformity MISTRAL65H
Instructions and Manuals
Instruction manual M65&M65H
Building Information Modeling – BIM
ABB-BIM MISTRAL 65/65H and Switchboard
ETIM 8
EC000214 - Small distribution board
ETIM 9
EC000214 - Small distribution board
eClass
V11.0 : 27142409
