1SLM006500S1903
Part Number: 1SLM006500S1903
Product Information
Extended Description

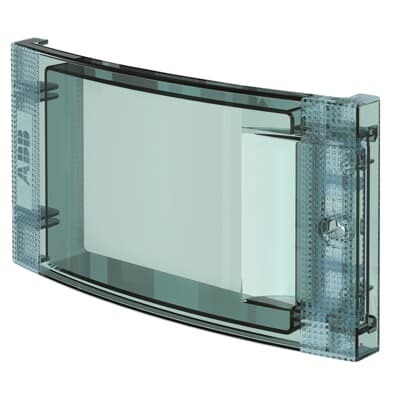

1SLM006500S1903 ABB: The transparent door (color: Petrol Blue) has a door opening angle of 180 degrees. The door hinge can be conveniently replaced by turning the frontal frame or the entire circuit distributor. The ergonomic handle with a snap lock simplifies the opening and closing of the door. A safety lock may be optionally used. Transparent door, suitable for Mistral 65 circuit distributor series, M65W108TN1, 1-row, 1 x 8 space units.
Model Number
Protective door
Surface Finishing
Untreated
Material
Plastic
DIN Place Units
8
Color
Other
RoHS Information
EU Declaration of Conformity MISTRAL65 GWT 750°C WITH TERMINALS
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20221015
REACH Declaration
REACh Regulation Enclosures - ABB S.p.A. Vittuone
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240429
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
WEEE B2C / B2B
Business To Business
Degree of Protection
IP65
Product Net Width
265.000 mm
Product Net Height
280.000 mm
Product Net Depth / Length
395.000 mm
Product Net Weight
0.156 kg
Package Level 1 Units
box 1 piece
Package Level 1 Gross Weight
0.160 kg
ETIM 8
EC000747 - Door/operating panel (enclosure/cabinet)
ETIM 9
EC000747 - Door/operating panel (enclosure/cabinet)
eClass
V11.0 : 27182204
Object Classification Code
U
