1SLM006501A1209
Part Number: 1SLM006501A1209
Product Information
Extended Description

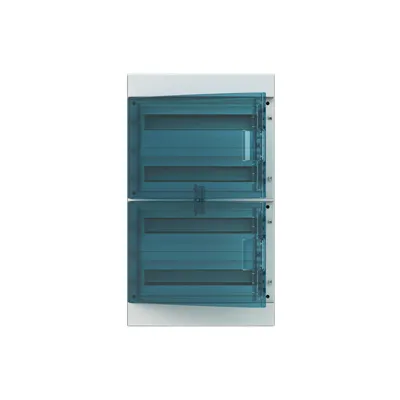

1SLM006501A1209 ABB: MISTRAL65 transparent door 72M 52SM;MISTRAL65 transparent door 72M 52SM
Power Loss
Δt = 30K 81 W
Number of Line Terminals
0
Number of Rows
4
Closure Type
Snap Function
Configuration Type
assembled with device carrier
Cover Plate Type
Door
Mounting Type
Surface mounting
Door Type
Single
Door Surface Finishing
Transparent
Enclosure Material
thermoplastic
Housing Material
Plastic
Transparent Door
Yes
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
72
RAL Number
RAL 7035 - Light Grey
Color
Light grey
Terminal Type
Screw Terminals
RoHS Information
EU Declaration of Conformity MISTRAL65 GWT 650°C WITH TERMINALS
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20221015
REACH Declaration
REACh Regulation Enclosures - ABB S.p.A. Vittuone
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240429
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Degree of Protection
IP65
Protection Class
Isolated (Class II)
Environmental Information
1SLC801013D0201
Width in Number of Modular Spacings
18
Product Net Width
430 mm
Product Net Height
735 mm
Product Net Depth / Length
155 mm
Product Net Weight
5.43 kg
Built-In Depth (t2)
98 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
6.31 kg
Declaration of Conformity - CE
EU Declaration of Conformity MISTRAL65 GWT 650°C WITH TERMINALS
Instructions and Manuals
Instruction manual M65&M65H
Data Sheet, Technical Information
1SLC801013D0201
Building Information Modeling – BIM
ABB-BIM MISTRAL 65/65H and Switchboard
ETIM 8
EC000214 - Small distribution board
ETIM 9
EC000214 - Small distribution board
eClass
V11.0 : 27142409
Object Classification Code
U
