1SLM006505A1208
Part Number: 1SLM006505A1208
Product Information
Extended Description

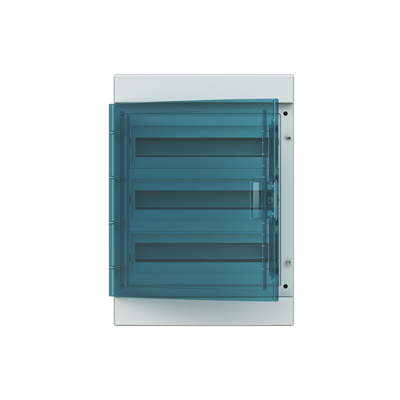

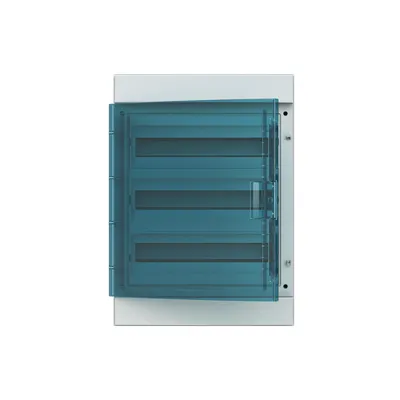

1SLM006505A1208 ABB: MISTRAL65 54M transp. door 26LP;MISTRAL65 54M transp. door 26LP
Power Loss
Δt = 30K 63 W
Number of Rows
3
Closure Type
Snap Function
Configuration Type
assembled with device carrier
Cover Plate Type
Door
Mounting Type
Surface mounting
Door Type
Single
Door Surface Finishing
Transparent
Housing Material
Plastic
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
54
RAL Number
RAL 7035 - Light Grey
Color
Light grey
Terminal Type
Quick-Terminal
RoHS Information
EU Declaration of Conformity MISTRAL65 GWT 650°C WITH SP.TERMINALS
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20221015
REACH Declaration
REACh Regulation Enclosures - ABB S.p.A. Vittuone
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240429
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP65
Protection Class
Isolated (Class II)
Width in Number of Modular Spacings
18
Product Net Width
430 mm
Product Net Height
600 mm
Product Net Depth / Length
155 mm
Product Net Weight
4.350 kg
Built-In Depth (t2)
98 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
5.150 kg
Declaration of Conformity - CE
EU Declaration of Conformity MISTRAL65 GWT 650°C WITH SP.TERMINALS
Instructions and Manuals
Instruction manual M65&M65H
ETIM 8
EC000214 - Small distribution board
ETIM 9
EC000214 - Small distribution board
eClass
V11.0 : 27142409
